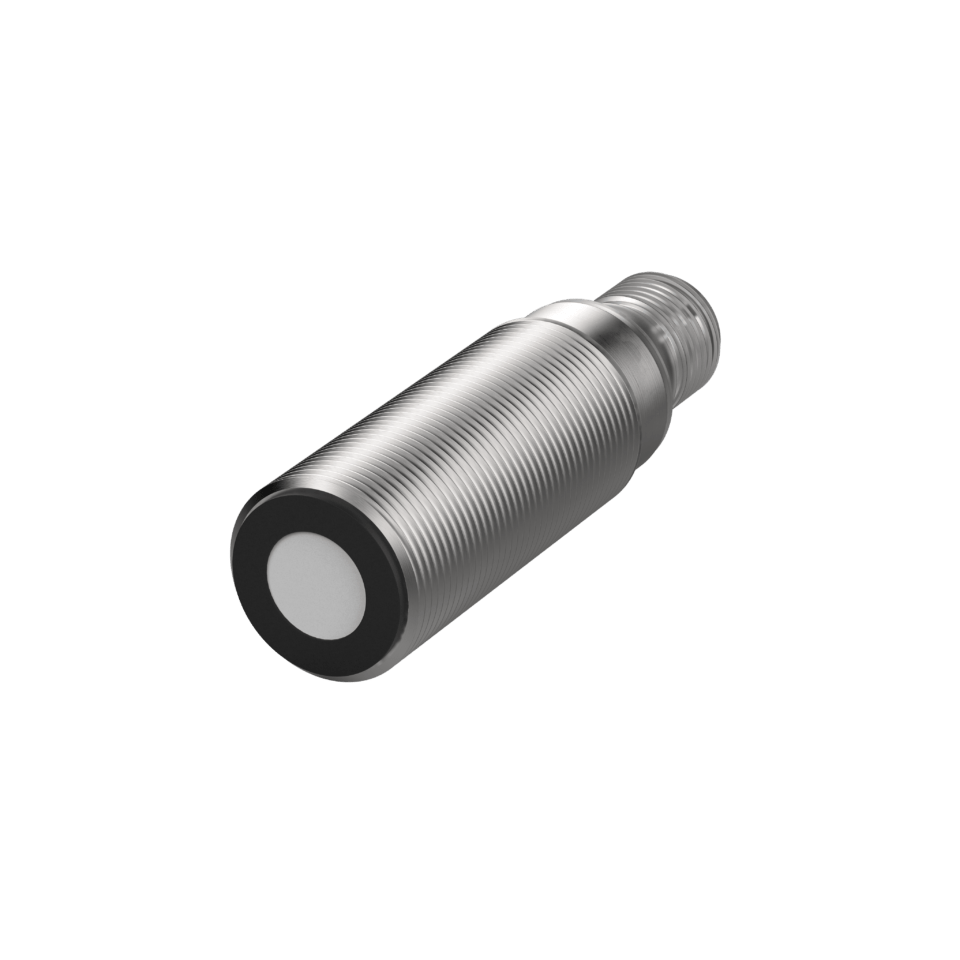

Sensor ultrassônico M18 – Design compacto

Avalie este produto

Sensor ultrassônico M18 – Design compacto

Avalie este produto
  • Disponível nas versões difuso reflexivo ou retro reflexivo
  • Medição confiável independente de ser um material transparente, com brilho ou com superfície colorida
  • Resistente à contaminação, umidade, sujeira e pó
  • Carcaça em aço inox (DIN 1.4404) ou plástico (PBT)
  • Duas opções de range de medição até 1.2 m
  • Sinal de saída digital, NPN/PNP ou analógico
  • Parametrização via cabo
  • Compensação de temperatura

Devido à seu design compacto e robusto, a família de sensores ultrassônicos modelo U*18S é a solução ideal para aplicações severas. Em combinação com sinais de saídas configuráveis, esta versão compacta oferece flexibilidade de medição.

Esta família de sensores pode ser fornecido na versões:  difuso reflexivo ou retro reflexivo

View my requests

Baixar tudo

Desenho técnico

1/3
CAT_SENS_U_18_Short_DRW
Tela cheia
1/3
2/3
CAT_SENS_U_18_Short_CON
Tela cheia
2/3
3/3
CAT_SENS_U_18_Short_CD
Tela cheia
3/3

Article characteristics

  • Electrical data
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Electrical data
  • Continuous current
  • Switching frequency
  • Polarity reversal protection
  • Switching output
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance max.
  • Technology
  • Operating frequency
  • Outputs
  • Operating Mode
  • Sensing range
  • Opening angle of sound cone
  • Ripple
  • Repeating accuracy
  • Resolution
  • Thermal drift
  • Overload protection
  • Short-circuit protection
  • Synchronization
  • Multiplexing
  • Linearity error
  • Blind zone
  • Start-up time analogue output
  • Start-up time digital output
  • Response time analogue output
  • EMC
  • Minimum distance sensor/reflector (retro-reflective sensor)
  • Minimum distance object/reflector (retro-reflective sensor)
  • MTTF
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Continuous current – 0.1 A – 0.1 A – 0.1 A 0.1 A
Switching frequency 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz 8 Hz 3 Hz
Polarity reversal protection yes yes yes yes
Switching output – NPN PNP – NPN PNP – NPN PNP NPN PNP
Output signal min. – 0 V DC – 0 V DC – –
Output signal max. – 10 V DC – 10 V DC – –
Output signal min. 4 mA – 4 mA – – –
Output signal max. 20 mA – 20 mA – – –
Operating voltage min. 10 V DC 10 V DC 10 V DC 10 V DC
Operating voltage max. 30 V DC 30 V DC 30 V DC 30 V DC
Current consumption < 35 mA <35 mA < 35 mA <35 mA < 35 mA <35 mA < 35 mA <35 mA < 35 mA <35 mA < 35 mA <35 mA < 35 mA <40 mA < 40 mA <40 mA < 40 mA <40 mA < 40 mA <40 mA < 40 mA
Load resistance min. – 3000 Ohm – 3000 Ohm – –
Load resistance max. 500 Ohm – 500 Ohm – – –
Technology Ultrasonic Ultrasonic Ultrasonic Ultrasonic
Operating frequency 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz 300 kHz 200 kHz
Outputs 1x 4...20mA 1x NPN 1x PNP 1x 0...10V 1x 4...20mA 1x NPN 1x PNP 1x 0...10V 1x NPN 1x PNP 1x NPN 1x PNP
Operating Mode diffuse reflection sensor diffuse reflection sensor diffuse reflection sensor retro-reflective sensor retro-reflective sensor
Sensing range 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm 0...300 mm 0...1200 mm 0...300 mm 0...1200 mm 0...300 mm 0...1200 mm 0...300 mm 0...1200 mm
Opening angle of sound cone 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 °
Ripple 5 % 5 % 5 % 5 %
Repeating accuracy 1 % 1 % 1 % 0.5 % 0.5 %
Resolution <= 2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <= 2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm <=2 mm <= 3 mm
Thermal drift ±2 % ±2 % ±2 % ±2 %
Overload protection yes yes yes yes
Short-circuit protection yes yes yes yes
Synchronization no no no no
Multiplexing no no no no
Linearity error 1 % 1 % 1 % 1 %
Blind zone 40 mm 80 mm 40 mm 80 mm 40 mm 80 mm 40 mm 80 mm 40 mm 80 mm 40 mm 80 mm 40 mm 80 mm 40 mm 80 mm – –
Start-up time analogue output 500 ms – 500 ms – 500 ms – –
Start-up time digital output – 400 ms – 400 ms – 400 ms 400 ms
Response time analogue output 400 ms – 400 ms – 400 ms – –
EMC EN 60947-5-2 EN 60947-5-2 EN 60947-5-2 EN 60947-5-2
Minimum distance sensor/reflector (retro-reflective sensor) – – – 50 mm 100 mm 50 mm 100 mm 50 mm 100 mm 50 mm 100 mm
Minimum distance object/reflector (retro-reflective sensor) – – – 10 % 10 %
MTTF 216 a 216 a 216 a 216 a
  • Properties
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Properties
  • Accessories supplied
  • Controls
  • Indicators
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Accessories supplied 2 stainless steel nuts SW24 2 stainless steel nuts SW24 2 plastic nuts SW22 + 2 rubber washers 2 plastic nuts SW22 + 2 rubber washers 2 stainless steel nuts SW24 2 plastic nuts SW22 + 2 rubber washers
Controls Programming cable Programming cable Programming cable Programming cable
Indicators Switching state: 1 LED yellow, Echo: 1 LED green Switching state: 1 LED yellow, Echo: 1 LED green Switching state: 1 LED yellow, Echo: 1 LED green Switching state: 1 LED yellow, Echo: 1 LED green
  • Mechanical data
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Mechanical data
  • Dimensions
  • Housing design
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Dimensions M18x1; L=60,3mm M18x1; L=60,3mm M18x1; L=60,3mm M18x1; L=60,3mm
Housing design cylindrical cylindrical cylindrical cylindrical
  • Material information
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Material information
  • Housing material
  • Material sound transducer
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Housing material stainless steel 1.4404 stainless steel 1.4404 PBT PBT stainless steel 1.4404 PBT
Material sound transducer Epoxy resin with glass balls Epoxy resin with glass balls Epoxy resin with glass balls Epoxy resin with glass balls
  • Environmental conditions
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Environmental conditions
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Temperature compensation
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Protection class IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Operating temperature min. -20 °C -20 °C -20 °C -20 °C
Max. operating temperature 70 °C 70 °C 70 °C 70 °C
Min. storage temperature -30 °C -30 °C -30 °C -30 °C
Max. storage temperature 80 °C 80 °C 80 °C 80 °C
Temperature compensation yes yes yes yes
  • Installation
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Installation
  • Thread
  • Torque
  • Weight
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Thread M18 M18 M18 M18
Torque 50 N m 50 N m 1 N m 1 N m 50 N m 1 N m
Weight 80 g 80 g 65 g 65 g 80 g 65 g
  • Connection
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Connection
  • Connector type
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
Connector type M12 4-pol. M12 4-pol. M12 4-pol. M12 4-pol.
  • Approvals
  • UD18SM1C030
  • UD18SM1C120
  • UD18SM1N030
  • UD18SM1N120
  • UD18SM1P030
  • UD18SM1P120
  • UD18SM1V030
  • UD18SM1V120
  • UD18SP1C030
  • UD18SP1C120
  • UD18SP1N030
  • UD18SP1N120
  • UD18SP1P030
  • UD18SP1P120
  • UD18SP1V030
  • UD18SP1V120
  • UR18SM1N030
  • UR18SM1N120
  • UR18SM1P030
  • UR18SM1P120
  • UR18SP1N030
  • UR18SP1N120
  • UR18SP1P030
  • UR18SP1P120
  • Approvals
  • CE label
  • UL certification
  • CCC certification
AttributeUD18SM1C030UD18SM1C120UD18SM1N030UD18SM1N120UD18SM1P030UD18SM1P120UD18SM1V030UD18SM1V120UD18SP1C030UD18SP1C120UD18SP1N030UD18SP1N120UD18SP1P030UD18SP1P120UD18SP1V030UD18SP1V120UR18SM1N030UR18SM1N120UR18SM1P030UR18SM1P120UR18SP1N030UR18SP1N120UR18SP1P030UR18SP1P120
Bestellung
Bestellung
CE label yes yes yes yes
UL certification yes yes yes yes
CCC certification <36V yes <36V yes <36V yes <36V yes
1/1
U18S_ordering-key_21092020
Tela cheia
1/1
Downloads
Sensores ultra-sônicos Folheto do produto pdf 1,53 MB

Download
