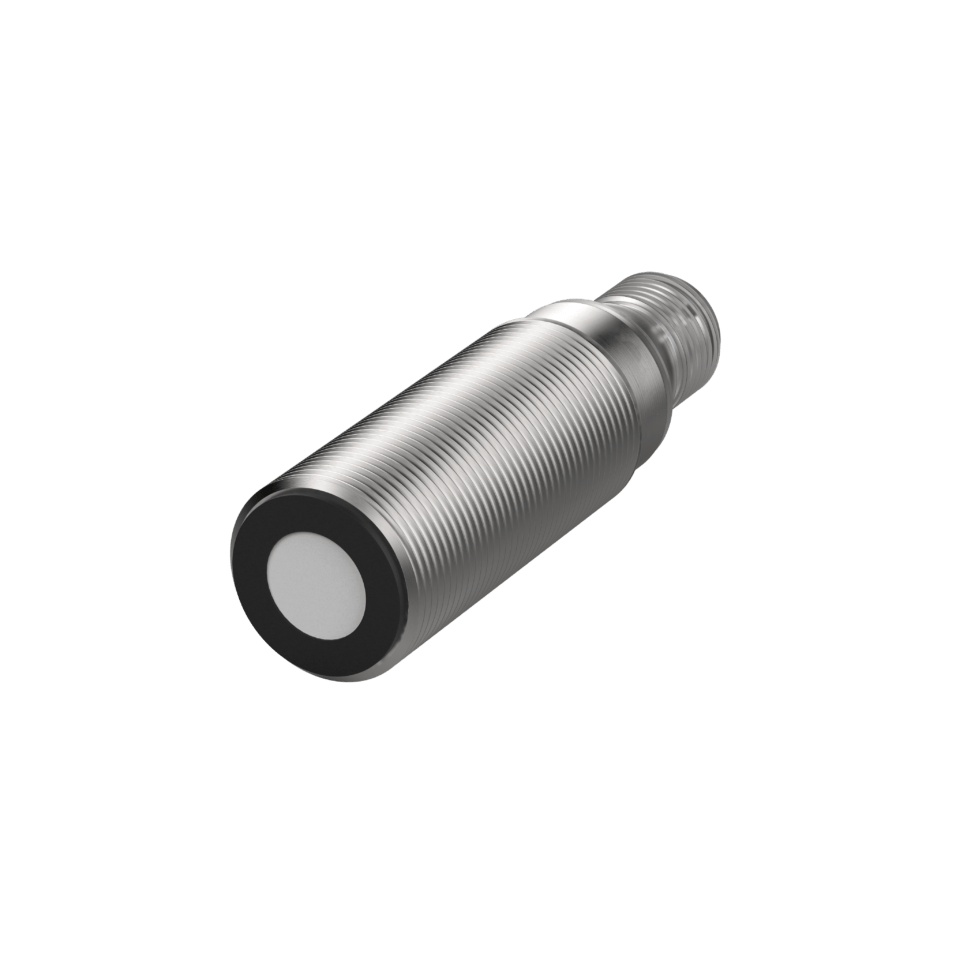

Sensor ultrassônico M18 – Design compacto com comunicação IO-Link

Sensor ultrassônico M18 – Design compacto com comunicação IO-Link

  • Parametrização via IO-Link, botão ou cabo
  • Disponível nas versões difuso reflexivo ou retro reflexivo
  • Medição confiável independente de ser um material transparente, com brilho ou com superfície colorida
  • Resistente à contaminação, umidade, sujeira e pó
  • Carcaça em aço inox (DIN 1.4404) ou plástico (PBT)
  • Range de medição até 1.2 m
  • Sinal de saída digital NPN/PNP ou analógico
  • Parametrização via cabo
  • Compensação de temperatura

Devido à seu design compacto e robusto, a família de sensores ultrassônicos modelo U*18S é a solução ideal para aplicações severas. Em combinação com sinais de saídas configuráveis, esta versão compacta oferece flexibilidade de medição.

Esta família de sensores pode ser fornecido nas versões:  difuso reflexivo ou retro reflexivo

Desenho técnico

1/3
CAT_SENS_U_18_Short_DRW
Tela cheia
1/3
2/3
CAT_SENS_U_18_Short_CON
Tela cheia
2/3
3/3
CAT_SENS_U_18_Short_CD_IO
Tela cheia
3/3

Article characteristics

  • Electrical data
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Electrical data
  • Continuous current
  • Switching frequency
  • Polarity reversal protection
  • Switching output
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Technology
  • Operating frequency
  • Outputs
  • Operating Mode
  • Sensing range
  • Opening angle of sound cone
  • Ripple
  • Repeating accuracy
  • Resolution
  • Thermal drift
  • Overload protection
  • Short-circuit protection
  • Synchronization
  • Multiplexing
  • Linearity error
  • IO-Link
  • Minimum distance object/reflector (retro-reflective sensor)
  • Blind zone
  • Start-up time digital output
  • Minimum distance sensor/reflector (retro-reflective sensor)
  • EMC
  • MTTF
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Continuous current 0.1 A
Switching frequency 10 Hz 3 Hz 10 Hz 3 Hz
Polarity reversal protection yes
Switching output Push-Pull
Operating voltage min. 10 V DC
Operating voltage max. 30 V DC
Current consumption < 35 mA
Technology Ultrasonic
Operating frequency 300 kHz 200 kHz 300 kHz 200 kHz
Outputs Push-Pull (IO-Link)
Operating Mode diffuse reflection sensor/retro-reflective sensor
Sensing range 40...300 mm 80...1200 mm 40...300 mm 80...1200 mm
Opening angle of sound cone 7 ±2 ° 8 ±2 ° 7 ±2 ° 8 ±2 °
Ripple 5 %
Repeating accuracy 1 %
Resolution 1 mm
Thermal drift ±2 %
Overload protection yes
Short-circuit protection yes
Synchronization no
Multiplexing no
Linearity error 1 %
IO-Link yes
Minimum distance object/reflector (retro-reflective sensor) 10 %
Blind zone 40 mm 80 mm 40 mm 80 mm
Start-up time digital output 600 ms
Minimum distance sensor/reflector (retro-reflective sensor) 50 mm 100 mm 50 mm 100 mm
EMC EN 60947-5-2
MTTF 216 a
  • Properties
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Properties
  • Accessories supplied
  • Controls
  • Indicators
  • Application specific
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Accessories supplied 2 stainless steel nuts SW24 2 plastic nuts SW22 + 2 rubber washers
Controls IO-Link
Indicators Switching state: 1 LED yellow, Echo: 1 LED green
Application specific IO-Link
  • Mechanical data
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Mechanical data
  • Dimensions
  • Housing design
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Dimensions M18x1; L=60,3mm
Housing design cylindrical
  • Material information
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Material information
  • Housing material
  • Material sound transducer
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Housing material stainless steel 1.4404 PBT
Material sound transducer Epoxy resin with glass balls
  • Environmental conditions
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Environmental conditions
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Temperature compensation
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Protection class IP67 DIN EN 60529
Operating temperature min. -20 °C
Max. operating temperature 70 °C
Min. storage temperature -30 °C
Max. storage temperature 80 °C
Temperature compensation yes
  • Installation
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Installation
  • Thread
  • Torque
  • Weight
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Thread M18
Torque 50 N m 1 N m
Weight 80 g 65 g
  • Connection
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Connection
  • Connector type
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
Connector type M12 4-pol.
  • Approvals
  • UC18SMIO030
  • UC18SMIO120
  • UC18SPIO030
  • UC18SPIO120
  • Approvals
  • CE label
  • UL certification
  • CCC certification
AttributeUC18SMIO030UC18SMIO120UC18SPIO030UC18SPIO120
Bestellung
Bestellung
CE label yes
UL certification yes
CCC certification <36V yes
1/1
U18S_IO_ordering-key
Tela cheia
1/1
Downloads
Sensores ultra-sônicos Folheto do produto pdf 1,53 MB
