Desenho técnico

1/9
Cat_K14_00_K_DRW
Tela cheia
1/9
2/9
Cat_K14_00_K_CON
Tela cheia
2/9
3/9
Cat_K14_00_K_CD
Tela cheia
3/9
4/9
Cat_K16_00_K_DRW1
Tela cheia
4/9
5/9
Cat_K16_00_K_CON
Tela cheia
5/9
6/9
Cat_K16_00_K_CD
Tela cheia
6/9
7/9
Cat_K18_00_K_DRW1
Tela cheia
7/9
8/9
Cat_K18_00_K_CON
Tela cheia
8/9
9/9
Cat_K18_00_K_CD
Tela cheia
9/9

Article characteristics

  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Max. switching current per contact
  • Rated impulse withstand voltage (Uimp)
  • Operating voltage max.
  • Operating voltage max.
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung
Max. switching current per contact 4 A 2 A
Rated impulse withstand voltage (Uimp) 2500 V 1500 V 800 V
Operating voltage max. 250 V DC 125 V DC 30 V DC
Operating voltage max. 250 V AC 125 V AC 30 V AC
  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Cable colour
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung
Cable colour Grey Black Grey
  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Cable material
  • Nut material
  • Overmould material
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung
Cable material PVC PUR PVC
Nut material PA
Overmould material PUR PVC PUR
  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung
Operating temperature min. -30 °C -40 °C -30 °C
Max. operating temperature 80 °C
Min. storage temperature -30 °C -40 °C -30 °C
Max. storage temperature 80 °C
Min. cable temperature range, moving -5 °C -25 °C -5 °C
Max. cable temperature range, moving 80 °C
Min. cable temperature range, fixed installation -30 °C -40 °C -30 °C
Max. cable temperature range, fixed installation 80 °C
  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Torque for nuts
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung
Torque for nuts 0,6 N m
  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Connector type
  • Cable diameter
  • Number of pins
  • Number of strands
  • Wire cross section
  • Cable length
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung

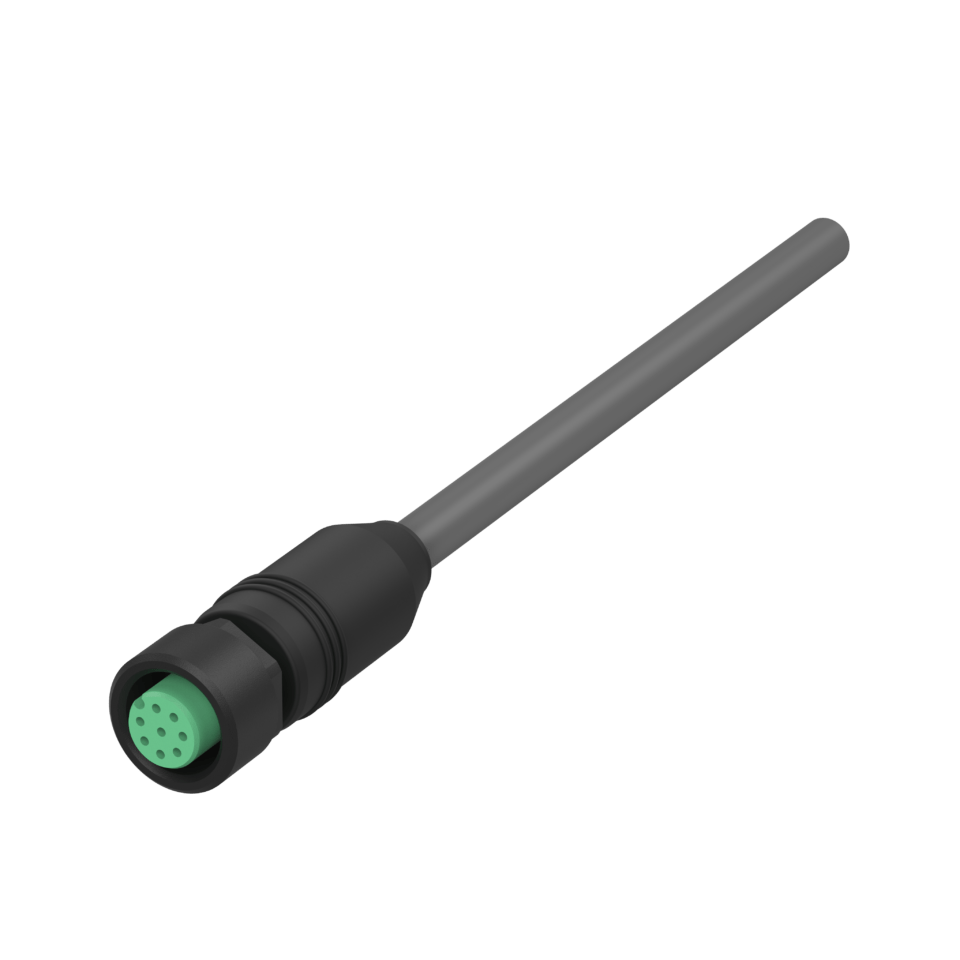

Connector type M12 socket, straight
Cable diameter 4,7 mm 5,2 mm 5 mm 6 mm
Number of pins 4 5 8
Number of strands 4 5 8
Wire cross section 0.25 mm² 0.34 mm² 0.25 mm²
Cable length Selectable (1m, 3m, 5m, 10m)
  • Attribute
  • K14G...K
  • K16G...K
  • K16H...K
  • K18G...K
  • Attribute
  • Certified in accordance with
AttributeK14G...KK16G...KK16H...KK18G...K
Bestellung
Bestellung
Certified in accordance with UL/CSA ECOLAB
1/1
K14_16_18_ordering-key
Tela cheia
1/1
