Desenho técnico

1/6
Cat_351150_DRW1
Tela cheia
1/6
2/6
Cat_351150_CON
Tela cheia
2/6
3/6
Cat_351150_CD
Tela cheia
3/6
4/6
Cat_351151_DRW1
Tela cheia
4/6
5/6
Cat_351151_CON
Tela cheia
5/6
6/6
Cat_351151_CD
Tela cheia
6/6

Article characteristics

  • Electrical data
  • 351150
  • 351151
  • Electrical data
  • Max. switching current per contact
  • Rated impulse withstand voltage (Uimp)
  • Operating voltage max.
  • Operating voltage max.
Attribute351150351151
Bestellung
Bestellung
Max. switching current per contact 4 A
Rated impulse withstand voltage (Uimp) 2500 V
Operating voltage max. 240 V DC
Operating voltage max. 240 V AC
  • Material information
  • 351150
  • 351151
  • Material information
  • Nut material
  • Overmould material
Attribute351150351151
Bestellung
Bestellung
Nut material CuZi nickel-plated
Overmould material PA
  • Environmental conditions
  • 351150
  • 351151
  • Environmental conditions
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Pollution degree
Attribute351150351151
Bestellung
Bestellung
Operating temperature min. -40 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
Pollution degree 3
  • Installation
  • 351150
  • 351151
  • Installation
  • Torque for nuts
Attribute351150351151
Bestellung
Bestellung
Torque for nuts 0,5 N m
  • Connection
  • 351150
  • 351151
  • Connection
  • Connector type
  • Cable diameter
  • Number of pins
  • Connection type
  • Min. connection cross section
  • Max. connection cross section
Attribute351150351151
Bestellung
Bestellung

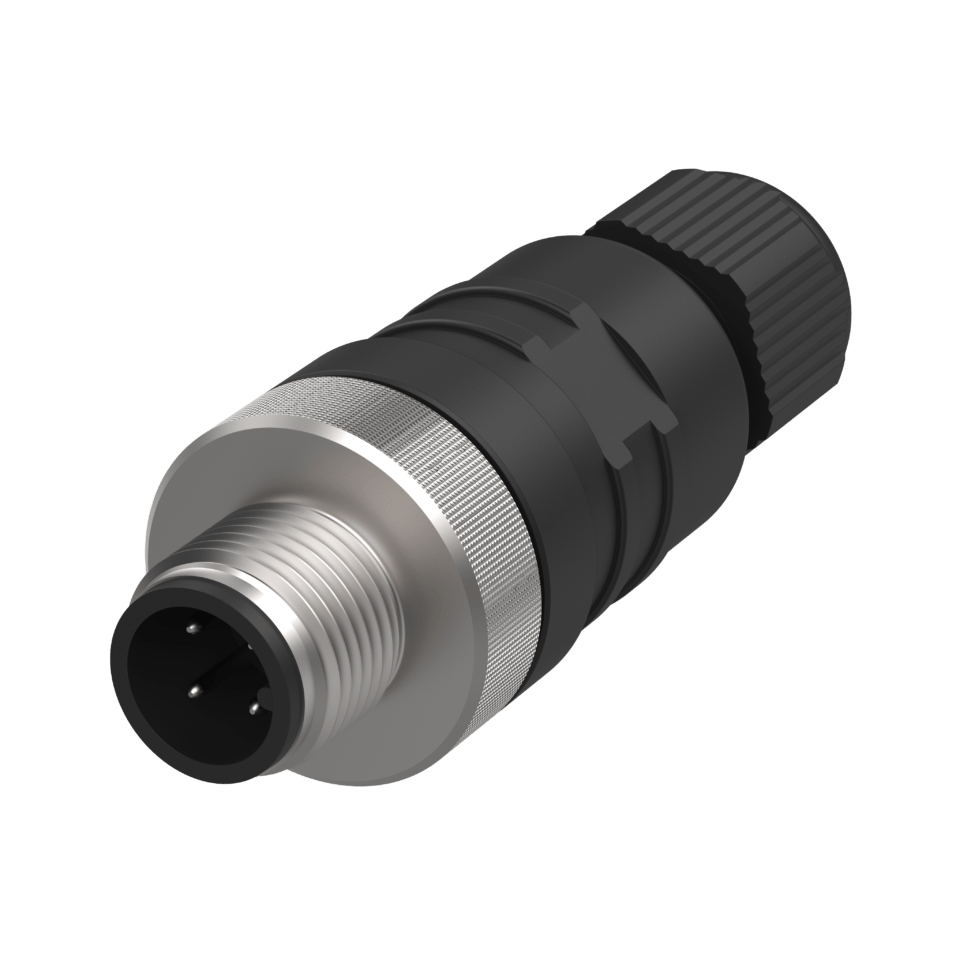

Connector type M12 socket, straight M12 connector, straight
Cable diameter 3 - 6,5 mm
Number of pins 4
Connection type Screw connection
Min. connection cross section 0.14 mm²
Max. connection cross section 0.75 mm²
  • Approvals
  • 351150
  • 351151
  • Approvals
  • Certified in accordance with
Attribute351150351151
Bestellung
Bestellung
Certified in accordance with UL 2238/CSA22.2
