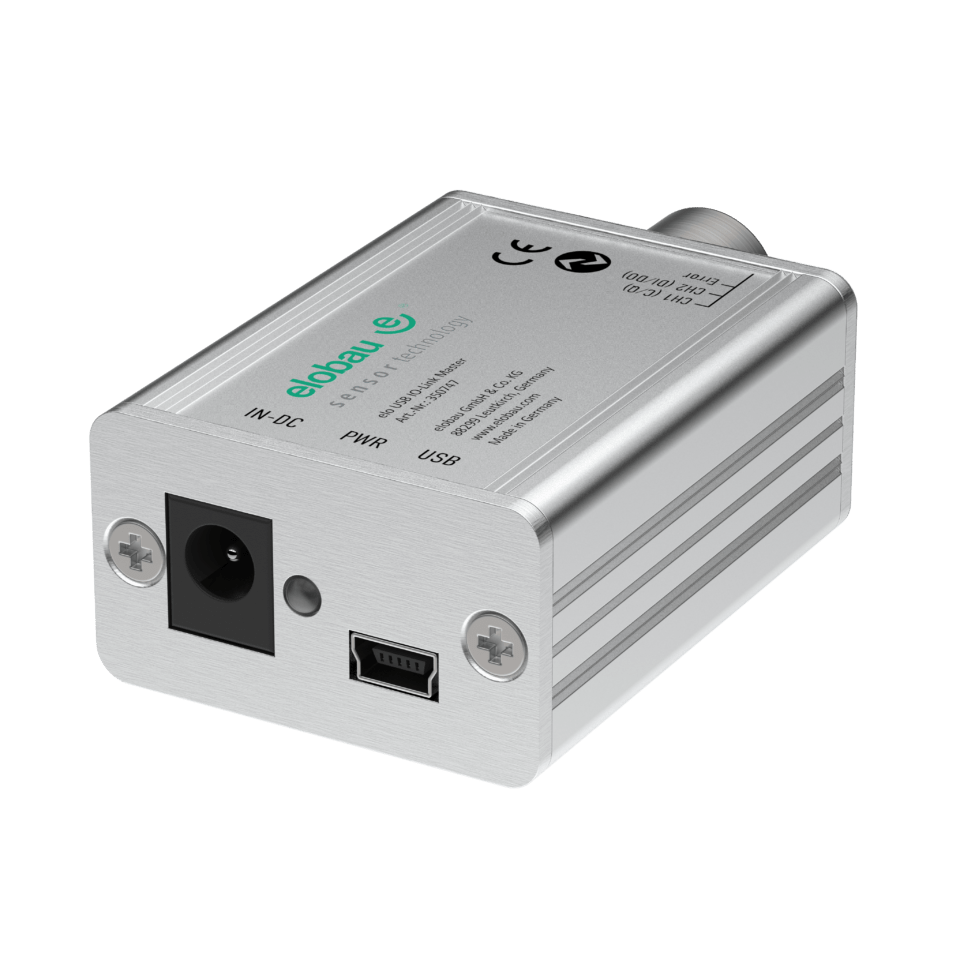

elo USB IO-Link Master

elo USB IO-Link Master

  • IO-Link Master com software universal para PC
  • Para dispositivos com especificação IODD 1.0 e 1.1
  • LED para indicação de funcionamento
  • Conectores M12

O módulo modelo elo USB IO-Link Master é usado para parametrização de sensores com protocolo de comunicação IO-Link. Os sensores com protocolo de comunicação IO-Link podem ser monitorados e configurados de forma rápida e fácil com o módulo elo USB IO-Link Master.

Article characteristics

  • Attribute
  • 350747
  • Attribute
  • Polarity reversal protection
  • Operating voltage max.
  • Power supply
Attribute350747
Bestellung
Bestellung
Polarity reversal protection yes
Operating voltage max. 24 V DC
Power supply 5 V / 500 mA (PC USB), 24 V / 80 mA (IO-Link device from USB), 24 V / 1 A (IO-Link device from power supply unit)
  • Attribute
  • 350747
  • Attribute
  • Suitable for
  • Accessories supplied
  • Function
Attribute350747
Bestellung
Bestellung
Suitable for All sensors with IO-Link
Accessories supplied elo USB IO-Link master, USB A-B cable, power supply 24 V DC / 24 W
Function Configuration and test device for IO-Link
  • Attribute
  • 350747
  • Attribute
  • Operating temperature min.
  • Max. operating temperature
Attribute350747
Bestellung
Bestellung
Operating temperature min. 0 °C
Max. operating temperature 45 °C
  • Attribute
  • 350747
  • Attribute
  • Connection type
Attribute350747
Bestellung
Bestellung
Connection type USB (mini USB B) type 2.0 / socket M12
