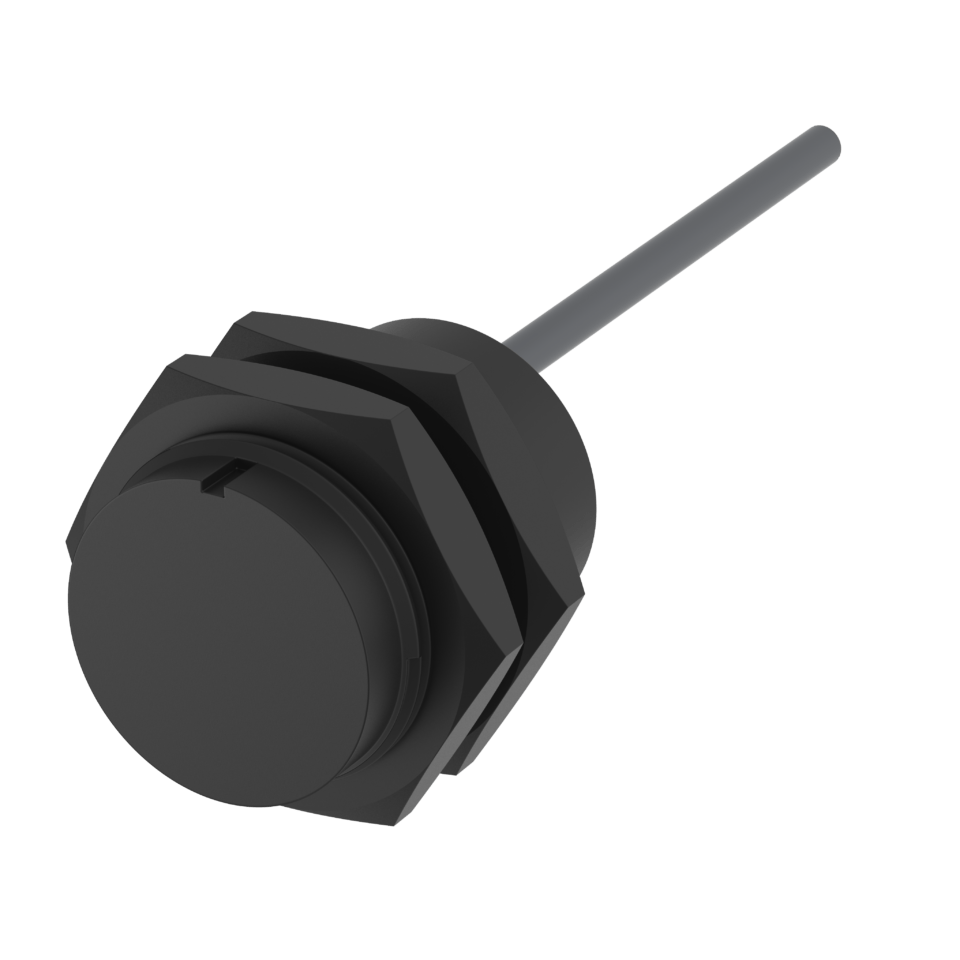

Sensor de segurança magnético 171

Disponível no elostore

Sensor de segurança magnético 171

Disponível no elostore
  • Conexões disponíveis: cabo, conector M8 e M12
  • Diagnóstico através de LED (opcional) e controle de contato

Sensor de segurança com atuação magnética, carcaça cilíndrica M30, fácil de montar e compatível com a maioria dos relés de segurança industriais.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/3
Cat_MS_171_Kunststoff_DRW1
Tela cheia
1/3
2/3
Cat_MS_171_Kunststoff_CON
Tela cheia
2/3
3/3
Sensor de segurança 171 | LED opcional | elobau
Tela cheia
3/3

Características do artigo

  • 171V62AY
  • 171V62A0D
  • 171271AY
  • 171271AZ
  • 171271A0E
  • 171271
  • 171271AA
  • 171271A0D
  • 171562
  • 171571
  • 171571AA
  • 17127118
  • 171V62
  • 171V62A0DPC
  • 171271A0DPC
  • 171V62PC
  • 171271PC
  • Min. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching current with LED
  • Max. switching power
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • LED display
  • Actuation
  • Switching principle
  • Series resistor
  • Technology
  • Contact form
  • Pollution degree
  • Protection class
  • Coding acc. to EN ISO 14119
  • B10d acc. to EN ISO 13849-1
  • Type acc. to EN ISO 14119
  • Mission time in years
  • Structure acc. to EN ISO 13849-1
  • Housing design
  • Dimensions
  • Minimum installation distance (between two sensors)
  • cannot be mounted flush
  • Detent present
  • Housing material
  • Cable material
  • Nut material
  • Housing colour
  • Protection class
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Shock resistance (Norm)
  • Vibration resistance (Norm)
  • Min. storage temperature
  • Max. storage temperature
  • Mounting type
  • Thread
  • Torque for nuts
  • Installation
  • Weight
  • Connector type
  • Cable length
  • Number of strands
  • Wire cross section
  • Cable type
  • Cable colour
  • CE label
  • Certified in accordance with
  • Possible actuators
Attribute171V62AY171V62A0D171271AY171271AZ171271A0E171271171271AA171271A0D171562171571171571AA17127118171V62171V62A0DPC171271A0DPC171V62PC171271PC
Bestellung
Min. switching voltage 19.2 V DC 19.2 V DC 19.2 V DC
Max. switching voltage 28.8 V DC 28.8 V DC 28.8 V DC
Max. switching current 0.1 A 0.1 A 0.1 A
Max. switching current with LED 0.02 A 0.02 A 0.02 A
Max. switching power 3 W 3 W 3 W
Switching frequency 5 Hz 5 Hz 5 Hz
Assured switching distance (Sao) 4 mm 4 mm 7 mm 4 mm
Assured switch-off distance (Sar) 16 mm 16 mm 18 mm 15 mm 23 mm 16 mm
Minimum switching distance (S0 min) 0.5 mm 0.5 mm 3 mm 0.5 mm
LED display No single-coloured No single-coloured No single-coloured No
Actuation front front front
Switching principle magnetic magnetic magnetic
Series resistor 22 Ohm 22 Ohm 22 Ohm
Technology Reed Reed Reed
Contact form NO/NO NO/NC NO/NO/NO (Kontrollkontakt) NO/NC NO/NO NO/NC NO/NO NO/NC
Pollution degree 3 3 3
Protection class III III III
Coding acc. to EN ISO 14119 Low Low Low
B10d acc. to EN ISO 13849-1 20000000 20000000 4000000 20000000 4000000 20000000
Type acc. to EN ISO 14119 4 4 4
Mission time in years 20 a 20 a 20 a
Structure acc. to EN ISO 13849-1 Two-channel Two-channel Two-channel
Housing design cylindrical cylindrical cylindrical
Dimensions M30 x 37 mm M30 x 37 mm M30 x 37 mm
Minimum installation distance (between two sensors) 50 mm 50 mm 50 mm
cannot be mounted flush yes yes yes
Detent present no no no
Housing material PBT PBT PBT
Cable material PVC PVC PVC
Nut material PBT PBT PBT
Housing colour schwarz schwarz schwarz
Protection class IP67 DIN EN 60529 IP65 DIN EN 60529 IP67 DIN EN 60529 IP65 DIN EN 60529 IP67 DIN EN 60529 IP65 DIN EN 60529 IP67 DIN EN 60529 IP65 DIN EN 60529 IP67 DIN EN 60529
Protection class, connector IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) IP65 DIN EN 60529 IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) IP67 DIN EN 60529 IP65 DIN EN 60529 IP65 DIN EN 60529 IP65 DIN EN 60529
Operating temperature min. -25 °C -25 °C -25 °C
Max. operating temperature 75 °C 75 °C 70 °C 75 °C
Min. cable temperature range, moving -5 °C -10 °C -5 °C -5 °C
Max. cable temperature range, moving 70 °C 105 °C 70 °C 70 °C
Min. cable temperature range, fixed installation -25 °C -30 °C -25 °C -25 °C
Max. cable temperature range, fixed installation 70 °C 105 °C 70 °C 70 °C
Shock resistance (Norm) 30g / 11ms 30g / 11ms 30g / 11ms
Vibration resistance (Norm) 10 - 55Hz 10 - 55Hz 10 - 55Hz
Min. storage temperature -25 °C -25 °C -25 °C
Max. storage temperature 75 °C 75 °C 70 °C 75 °C
Mounting type Fastening nut Fastening nut Fastening nut
Thread M30 M30 M30
Torque for nuts 10 N m 10 N m 10 N m
Installation arbitrary arbitrary arbitrary
Weight 60 g 60 g 60 g
Connector type M12x1 - 4 polig M8x1 - 4 polig M12x1 - 4 polig M8x1 - 4 polig M8x1 - 4 polig M8x1 - 4 polig
Cable length 1 m 1 m 1 m
Number of strands 4 6 4 4
Wire cross section 0.25 mm² 0.22 mm² 0.25 mm² 0.25 mm²
Cable type LiYY 4x0,25 LiYY 6x0,25 LiYY 4x0,25 LiYY 4x0,25
Cable colour grau schwarz grau grau
CE label yes no yes no yes no
Certified in accordance with ETL ETL ETL
Possible actuators 30420000 30420000 30420000
1/3

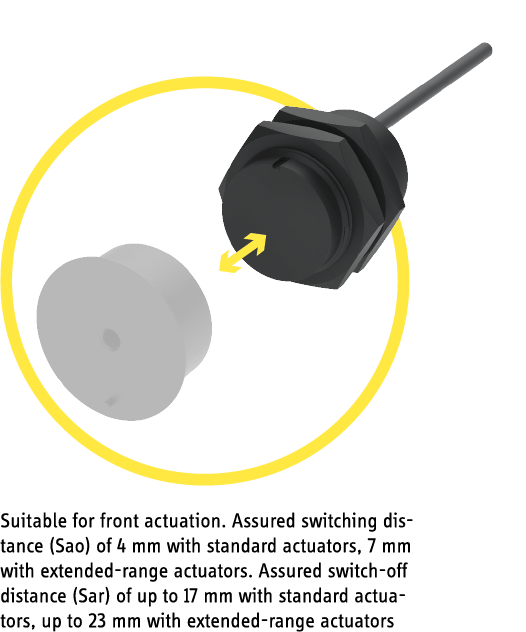

171_switching-distance
