Sensor de segurança magnético 171
Sensor de segurança magnético 171
Este produto também está disponível em nossa elo.store.
Desenho técnico
1/3
1/3
2/3
2/3
3/3
3/3
Características do artigo
- Min. switching voltage
- Max. switching voltage
- Max. switching current
- Max. switching current with LED
- Max. switching power
- Switching frequency
- Assured switching distance (Sao)
- Assured switch-off distance (Sar)
- Minimum switching distance (S0 min)
- LED display
- Actuation
- Switching principle
- Series resistor
- Technology
- Contact form
- Pollution degree
- Protection class
- Min. switching voltage with LED
- Max. switching voltage with LED
- Coding acc. to EN ISO 14119
- B10d acc. to EN ISO 13849-1
- Type acc. to EN ISO 14119
- Mission time in years
- Structure acc. to EN ISO 13849-1
- Housing design
- Dimensions
- Minimum installation distance (between two sensors)
- cannot be mounted flush
- Detent present
- Housing material
- Cable material
- Nut material
- Housing colour
- Protection class
- Protection class, connector
- Operating temperature min.
- Max. operating temperature
- Min. cable temperature range, moving
- Max. cable temperature range, moving
- Min. cable temperature range, fixed installation
- Max. cable temperature range, fixed installation
- Shock resistance (Norm)
- Vibration resistance (Norm)
- Min. storage temperature
- Max. storage temperature
- Mounting type
- Thread
- Torque for nuts
- Installation
- Connector type
- Cable length
- Number of strands
- Wire cross section
- Cable type
- Cable colour
- Certified in accordance with
- CE label
- Possible actuators
| Attribute | 171V62VY | 171V62VY01 | 171V62W | 171271V | 171271VY01 | 171271VY03 | 171271VZ | 171271W | 171V62V | BA_171V62VY | BA_171V62VY01 | 171..._Vorlage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bestellung | ||||||||||||
| Min. switching voltage | 19.2 V DC | – | 19.2 V DC | |||||||||
| Max. switching voltage | 28.8 V DC | – | 28.8 V DC | |||||||||
| Max. switching current | 0.1 A | – | 0.1 A | |||||||||
| Max. switching current with LED | – | 0.02 A | – | 0.02 A | ||||||||
| Max. switching power | 3 W | 3 W | ||||||||||
| Switching frequency | 5 Hz | 5 Hz | ||||||||||

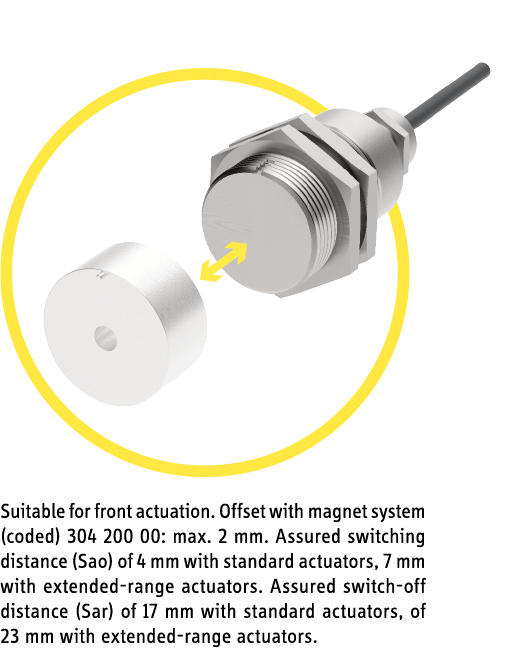

| Assured switching distance (Sao) | 3.5 mm | 4 mm | 4 mm | |||||||||
| Assured switch-off distance (Sar) | 16 mm | 17 mm | 16 mm | |||||||||
| Minimum switching distance (S0 min) | 0.5 mm | 0.5 mm | ||||||||||
| LED display | No | single-coloured | No | single-coloured | ||||||||
| Actuation | front | front | ||||||||||
| Switching principle | magnetic | magnetic | ||||||||||
| Series resistor | 22 Ohm | 22 Ohm | ||||||||||
| Technology | Reed | Reed | ||||||||||
| Contact form | NO/NO | NO/NC | NO/NO | NO/NC | ||||||||
| Pollution degree | 3 | 3 | ||||||||||
| Protection class | III | III | ||||||||||
| Min. switching voltage with LED | – | 2.7 V DC | – | |||||||||
| Max. switching voltage with LED | – | 28.8 V DC | – | |||||||||
| Coding acc. to EN ISO 14119 | Low | Low | ||||||||||
| B10d acc. to EN ISO 13849-1 | 20000000 | 20000000 | 4000000 | |||||||||
| Type acc. to EN ISO 14119 | 4 | 4 | ||||||||||
| Mission time in years | 20 a | 20 a | ||||||||||
| Structure acc. to EN ISO 13849-1 | Two-channel | Two-channel | ||||||||||
| Housing design | cylindrical | cylindrical | ||||||||||
| Dimensions | M30 x 44 mm | M30 x 44 mm | ||||||||||
| Minimum installation distance (between two sensors) | 50 mm | – | 50 mm | – | 50 mm | – | ||||||
| cannot be mounted flush | yes | yes | ||||||||||
| Detent present | no | no | ||||||||||
| Housing material | Edelstahl | Edelstahl , Kabelverschraubung Edelstahl | Edelstahl , Kabelverschraubung Kunststoff | Edelstahl | Edelstahl , Kabelverschraubung Edelstahl | Edelstahl , Kabelverschraubung Kunststoff | Edelstahl | |||||
| Cable material | – | PVC | – | PVC | – | |||||||
| Nut material | Edelstahl | Edelstahl | ||||||||||
| Housing colour | silber | silber | ||||||||||
| Protection class | IP67 DIN EN 60529 | IP68 DIN EN 60529 | IP69K DIN 40050 - IP68 5bar DIN EN 60529 | IP67 DIN EN 60529 | IP68 DIN EN 60529 | IP67 DIN EN 60529 | IP69K DIN 40050 - IP68 5bar DIN EN 60529 | IP67 DIN EN 60529 | IP68 DIN EN 60529 | IP67 DIN EN 60529 | ||
| Protection class, connector | IP67 / IP69K DIN EN 60529 | IP68 DIN EN 60529 | – | IP67 DIN EN 60529 | IP68 DIN EN 60529 | IP67 DIN EN 60529 | – | IP67 / IP69K DIN EN 60529 | IP68 DIN EN 60529 | IP67 DIN EN 60529 | ||
| Operating temperature min. | -25 °C | -25 °C | ||||||||||
| Max. operating temperature | 75 °C | 75 °C | ||||||||||
| Min. cable temperature range, moving | – | -5 °C | – | -5 °C | – | |||||||
| Max. cable temperature range, moving | – | 70 °C | – | 70 °C | – | |||||||
| Min. cable temperature range, fixed installation | – | -25 °C | – | -25 °C | – | |||||||
| Max. cable temperature range, fixed installation | – | 70 °C | – | 70 °C | – | |||||||
| Shock resistance (Norm) | 30g / 11ms | 30g / 11ms | ||||||||||
| Vibration resistance (Norm) | 10 - 55Hz | 10 - 55Hz | ||||||||||
| Min. storage temperature | -25 °C | -25 °C | ||||||||||
| Max. storage temperature | 75 °C | 75 °C | ||||||||||
| Mounting type | Fastening nut | Fastening nut | ||||||||||
| Thread | M30 | M30 | ||||||||||
| Torque for nuts | 50 N m | 50 N m | ||||||||||
| Installation | arbitrary | arbitrary | ||||||||||
| Connector type | M12x1 - 4 polig | – | M12x1 - 4 polig | – | M12x1 - 4 polig | |||||||
| Cable length | – | 1 m | – | 1 m | – | |||||||
| Number of strands | – | 4 | – | 4 | – | |||||||
| Wire cross section | – | 0.25 mm² | – | 0.25 mm² | – | |||||||
| Cable type | – | LiYY 4x0,25 | – | LiYY 4x0,25 | – | |||||||
| Cable colour | – | grau | – | grau | – | |||||||
| Certified in accordance with | CE | ETL | – | CE | – | CE | – | |||||
| CE label | yes | yes | ||||||||||
| Possible actuators | 30420000 | 30420000 | ||||||||||
