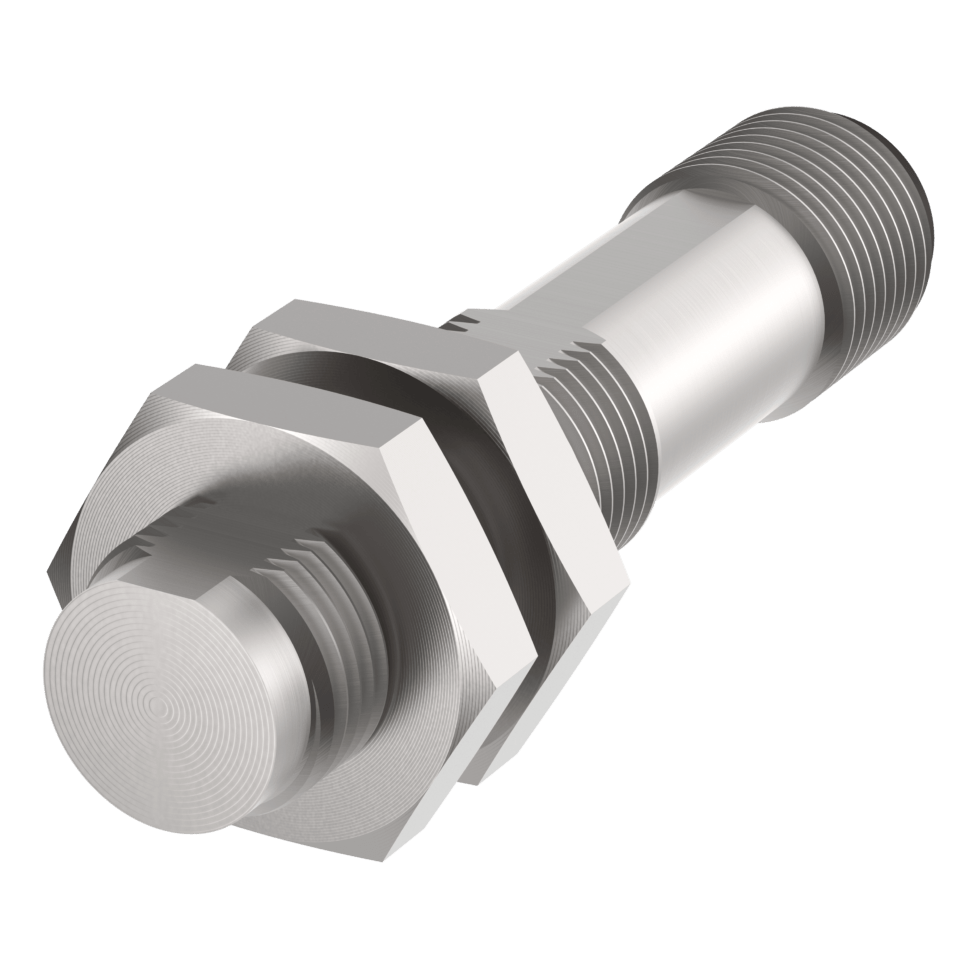

Sensor de segurança magnético 122MSV

Sensor de segurança magnético 122MSV

  • Flexibilidade de instalação
  • Classe de proteção IP6K9K, ideal para aplicações que  exigem resistência à jatos d’agua
  • Conector M12
  • Atuador magnético em carcaça M12 (código: 122MBV100)

O sensor de segurança magnético modelo  122MSV é o sensor mais compacto disponível no mercado. A carcaça em aço inoxidável totalmente vedada pode suportar jatos d’agua, produtos químicos e temperaturas extremas de -25 ° C até +80 ° C, com classe de proteção IP6K9K.

O sensor de segurança magnético modelo  122MSV permite uma distância de comutação de até 9,5 mm.  É a solução ideal para  aplicação na indústria de alimentos e embalagens.

Desenho técnico

1/3
Cat_MS_122MSV10G1G_VA_DRW1
Tela cheia
1/3
2/3
Cat_MS_122MSV10G1G_VA_CON
Tela cheia
2/3
3/3
Cat_MS_122MSV10G1G_VA_CD
Tela cheia
3/3

Article characteristics

  • Attribute
  • 122MSV10G1G
  • Attribute
  • Min. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • LED display
  • Actuation
  • Switching principle
  • Series resistor
  • Technology
  • Contact form
  • Pollution degree
  • Protection class
Attribute122MSV10G1G
Bestellung
Min. switching voltage 19.2 V DC
Max. switching voltage 28.8 V DC
Max. switching current 0.1 A
Max. switching power 3 W
Switching frequency 5 Hz
Assured switching distance (Sao) 9.5 mm
Assured switch-off distance (Sar) 25 mm
Minimum switching distance (S0 min) 0.5 mm
LED display No
Actuation front
Switching principle magnetic
Series resistor 22 Ohm
Technology Reed
Contact form NO/NC
Pollution degree 3
Protection class III
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Housing colour
Attribute122MSV10G1G
Bestellung
Housing colour silber
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Housing design
  • Dimensions
  • Detent present
  • cannot be mounted flush
Attribute122MSV10G1G
Bestellung
Housing design cylindrical
Dimensions M12 x 55,5 mm
Detent present no
cannot be mounted flush yes
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Housing material
  • Nut material
Attribute122MSV10G1G
Bestellung
Housing material Edelstahl
Nut material Edelstahl
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Protection class
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Shock resistance (Norm)
  • Vibration resistance (Norm)
  • Min. storage temperature
  • Max. storage temperature
Attribute122MSV10G1G
Bestellung
Protection class IP68 DIN EN 60529
Protection class, connector IP68 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 80 °C
Shock resistance (Norm) 30g / 11ms
Vibration resistance (Norm) 10 - 55Hz
Min. storage temperature -25 °C
Max. storage temperature 80 °C
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Mounting type
  • Thread
Attribute122MSV10G1G
Bestellung
Mounting type Fastening nut
Thread M12
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Connector type
Attribute122MSV10G1G
Bestellung
Connector type M12x1 - 4 polig
  • Attribute
  • 122MSV10G1G
  • Attribute
  • CE label
Attribute122MSV10G1G
Bestellung
CE label yes
  • Attribute
  • 122MSV10G1G
  • Attribute
  • Possible actuators
Attribute122MSV10G1G
Bestellung
Possible actuators 122MBV100
1/2

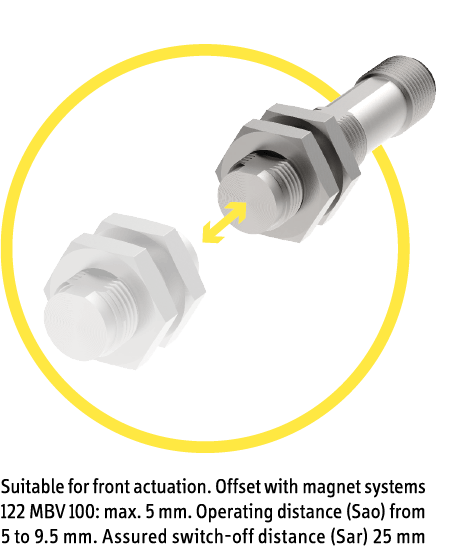

122MSV_switching-distance
Tela cheia
1/2
2/2
122MSV_ordering_key
Tela cheia
2/2
