Safety sensor 165

Disponível no elostore

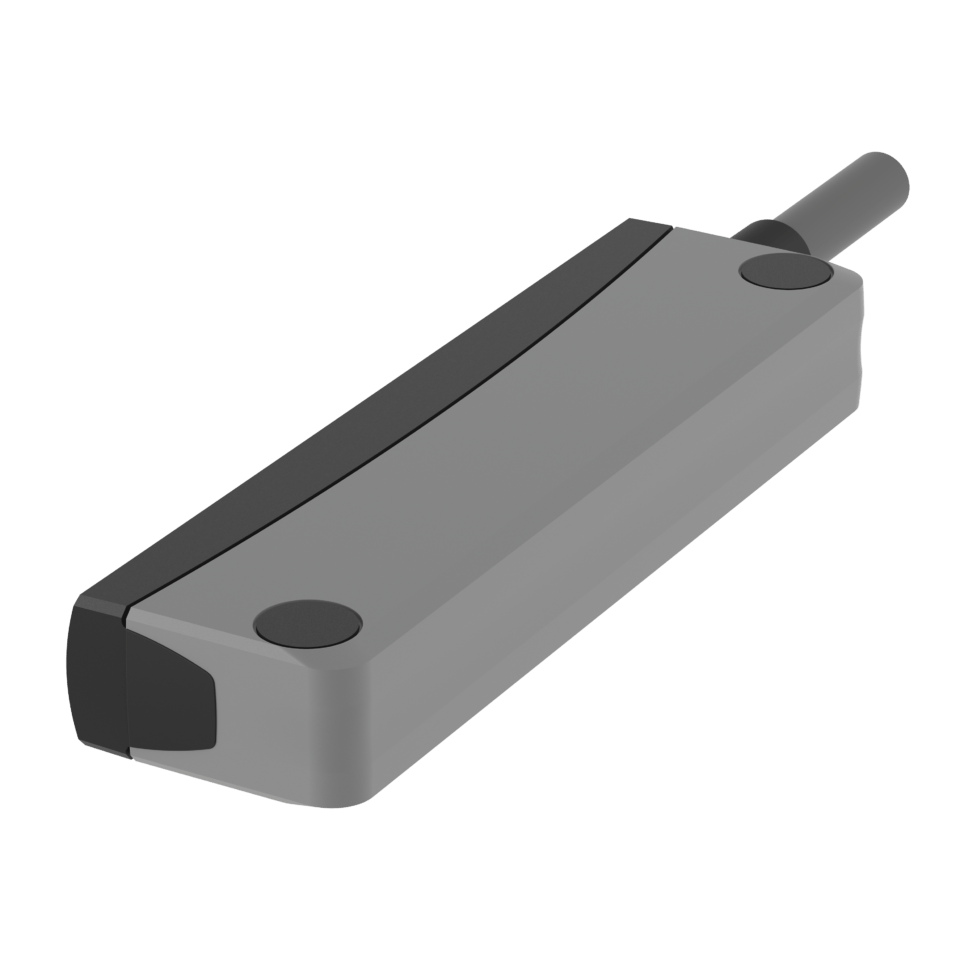

Safety sensor 165

Disponível no elostore
  • Sensors can be combined with different actuators (standard or amplified) can be combined for switching distance to suit the application
  • Variable connection through cable outlet and M8 housing connector
  • Simple diagnosis through optional LED and control contact
  • Oblong holes allow easy alignment

Safety doors, bonnets or covers can be safely monitored with the non-contact and therefore wear-free sensors in combination with the matching elobau safety evaluation unit. The magnetic safety sensors are particularly convincing for monitoring safety doors on food processing machines due to their concealed installation behind stainless steel.

The high number of variants at elobau offers solutions for almost all applications.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/3
Safety sensor 165 - elobau
Tela cheia
1/3
2/3
Safety sensor 165 - elobau
Tela cheia
2/3
3/3
Safety sensor 165 - elobau
Tela cheia
3/3

Article characteristics

  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Housing colour
  • Cable type
  • Cable colour
  • Detent present
  • Installation
  • Certified in accordance with
  • CE label
  • Contact form
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Housing colour schwarz schwarz
Cable type LiYY 4x0,25 LiYY 4x0,25 LiYY 4x0,25 LiYY 6x0,23
Cable colour grau grau grau schwarz
Detent present no no
Installation arbitrary arbitrary
Certified in accordance with ETL CE
CE label yes yes
Contact form NO/NC NO/NO NO/NC/NO (Kontrollkontakt)
  • Electrical data
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Electrical data
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • LED display
  • Actuation
  • Switching principle
  • Series resistor
  • Technology
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Max. switching voltage 28.8 V DC 28.8 V DC
Max. switching current 0.1 A 0.02 A 0.1 A
Max. switching power 3 W
Switching frequency 5 Hz 5 Hz
Assured switching distance (Sao) 3 mm 4 mm 5 mm
Assured switch-off distance (Sar) 16 mm 17 mm 16 mm
Minimum switching distance (S0 min) 0.5 mm 0.5 mm
LED display No single-coloured No single-coloured
Actuation front side front see technical drawing side
Switching principle magnetic magnetic
Series resistor 22 Ohm 22 Ohm
Technology Reed Reed
  • Mechanical data
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Mechanical data
  • Housing design
  • Dimensions
  • Free zone
  • Minimum installation distance (between two sensors)
  • cannot be mounted flush
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Housing design cuboid rectangular
Dimensions 88x25x14 88x25x14
Free zone 20 mm
Minimum installation distance (between two sensors) 50 mm 50 mm
cannot be mounted flush no no
  • Material information
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Material information
  • Housing material
  • Cable material
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Housing material PBT PBT
Cable material PVC PVC PVC PVC
  • Environmental conditions
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Environmental conditions
  • Protection class
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Shock resistance (Norm)
  • Vibration resistance (Norm)
  • Min. storage temperature
  • Max. storage temperature
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Protection class IP67 DIN EN 60529 IP67 / IP69K DIN EN 60529 IP67 DIN EN 60529 IP67 / IP69K DIN EN 60529
Protection class, connector IP65 DIN EN 60529
Operating temperature min. -25 °C -25 °C
Max. operating temperature 75 °C 100 °C
Min. cable temperature range, moving -5 °C -5 °C -5 °C -10 °C
Max. cable temperature range, moving 70 °C 70 °C 70 °C 105 °C
Min. cable temperature range, fixed installation -25 °C -25 °C -25 °C -30 °C
Max. cable temperature range, fixed installation 70 °C 70 °C 70 °C 105 °C
Shock resistance (Norm) 30g / 11ms 30g / 11ms
Vibration resistance (Norm) 10 - 55Hz 10 - 55Hz
Min. storage temperature -25 °C -25 °C
Max. storage temperature 75 °C 100 °C
  • Installation
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Installation
  • Mounting type
  • Weight
  • Torque for fastening screws
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Mounting type screwed screwed Latching detent
Weight 63 g 76 g
Torque for fastening screws 2 N m 2 N m
  • Connection
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Connection
  • Connector type
  • Cable length
  • Number of strands
  • Wire cross section
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Connector type M8x1 4-polig M8x1 4-polig M8x1 4-polig
Cable length 1 m 1 m 1 m 1 m
Number of strands 4 4 4 6
Wire cross section 0.25 mm² 0.25 mm² 0.25 mm² 0.23 mm²
  • Operating data
  • 165270
  • 165270A0D
  • 165270AA
  • 165270A0E
  • 165V62
  • 165V62A0D
  • 165570
  • 165562
  • Operating data
  • Possible actuators
Attribute165270165270A0D165270AA165270A0E165V62165V62A0D165570165562
Bestellung
Bestellung
Possible actuators 30426112 / 30426192 (30426112S) 30426112 30426112 / 30426192 (30426112S) 30426112 / 30426112S 30426112 / 30426192 (30426112S)
1/3
Safety sensor 165 - elobau
Tela cheia
1/3
2/3
Safety sensor 165 - elobau
Tela cheia
2/3
3/3
Safety sensor 165 - elobau
Tela cheia
3/3
