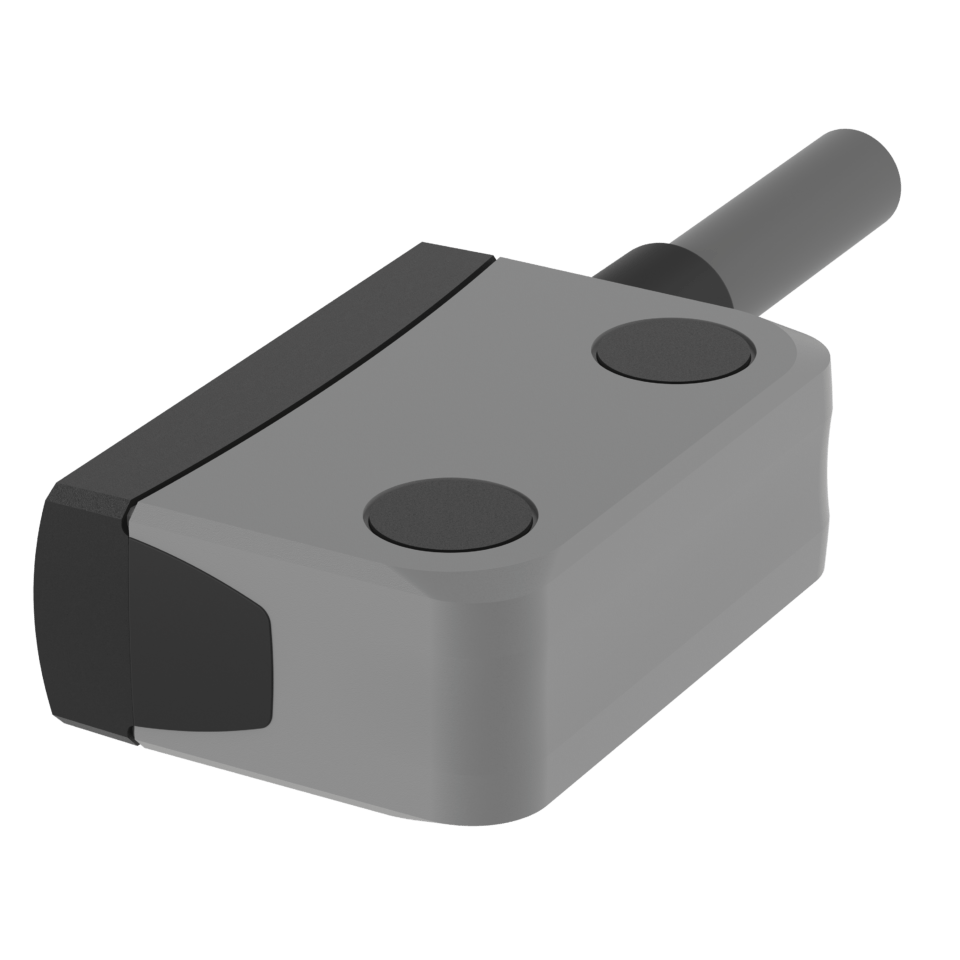

Safety sensor 153

Disponível no elostore

Safety sensor 153

Disponível no elostore
  • Small standard design for installation in confined confined spaces
  • Sensors in standard or reinforced version for Switching distance to suit the application
  • Variable connection through cable outlet and M8 housing connector
  • Simple diagnosis through optional LED and control contact

Safety doors, bonnets or covers can be safely monitored with the non-contact and therefore wear-free sensors in combination with the matching elobau safety evaluation unit. The magnetic safety sensors are particularly convincing for monitoring safety doors on food processing machines due to their concealed installation behind stainless steel.

The high number of variants at elobau offers solutions for almost all applications.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/3
Safety sensor 153 - elobau
Tela cheia
1/3
2/3
Safety sensor 153 - elobau
Tela cheia
2/3
3/3
Safety sensor 153 - elobau
Tela cheia
3/3

Article characteristics

  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Housing colour
  • Cable type
  • Cable colour
  • Detent present
  • Installation
  • Certified in accordance with
  • CE label
  • Contact form
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Housing colour schwarz schwarz Gelb
Cable type LIYY 4 x 0,25 mm LIYY 4 x 0,25 mm LIYY 4 x 0,25 mm LIYY 4 x 0,25 mm LiYY 6x0,22 (AWG 24) LIYY 4 x 0,25 mm LIYY 4 x 0,25 mm
Cable colour schwarz
Detent present no no no
Installation arbitrary
Certified in accordance with ETL ETL CE ETL CE CE, ETL
CE label yes yes yes
Contact form NO/NC NO/NC NO/NO NO/NC NO/NO NO/NC/NO (Kontrollkontakt) NO/NO NO/NC
  • Electrical data
  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Electrical data
  • Min. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching current with LED
  • Max. switching power
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • LED display
  • Actuation
  • Switching principle
  • Series resistor
  • Technology
  • Min. switching current
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Min. switching voltage 0 V DC 19.2 V DC 19.2 V DC 19.2 V DC
Max. switching voltage 28.8 V DC 28.8 V DC 28.8 V DC
Max. switching current 0.1 A 0.1 A 0.1 A
Max. switching current with LED 0.01 A 0.01 A 0.01 A 0.01 A
Max. switching power 3 W
Switching frequency 5 Hz 5 Hz 5 Hz 5 Hz
Assured switching distance (Sao) 1 mm 9 mm 3 mm 9 mm 3 mm 8 mm 1 mm 8 mm 4 mm 8 mm 9 mm
Assured switch-off distance (Sar) 13 mm 21 mm 10 mm 21 mm 10 mm 17 mm 13 mm 17 mm 16 mm 17 mm 21 mm
Minimum switching distance (S0 min) 0.5 mm 0.5 mm 0.5 mm
LED display No single-coloured No single-coloured No single-coloured No single-coloured No
Actuation front front front
Switching principle magnetic magnetic magnetic
Series resistor 22 Ohm 22 Ohm 22 Ohm
Technology Reed Reed Reed
Min. switching current 0 A
  • Mechanical data
  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Mechanical data
  • Housing design
  • Dimensions
  • Minimum installation distance (between two sensors)
  • cannot be mounted flush
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Housing design cuboid cuboid cuboid cuboid
Dimensions 36x26x13 36x26x13 36x26x13
Minimum installation distance (between two sensors) 50 mm
cannot be mounted flush yes yes yes
  • Material information
  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Material information
  • Housing material
  • Cable material
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Housing material PBT PBT PBT
Cable material PVC PVC PVC PVC PVC PVC
  • Environmental conditions
  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Environmental conditions
  • Protection class
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Min. storage temperature
  • Max. storage temperature
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Protection class IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Protection class, connector IP65 DIN EN 60529
Operating temperature min. -25 °C -25 °C -25 °C -25 °C
Max. operating temperature 75 °C 75 °C 100 °C 75 °C 75 °C
Min. cable temperature range, moving -10 °C
Max. cable temperature range, moving 105 °C
Min. cable temperature range, fixed installation -30 °C
Max. cable temperature range, fixed installation 105 °C
Min. storage temperature -25 °C -25 °C -25 °C -25 °C
Max. storage temperature 75 °C 75 °C 75 °C 75 °C
  • Installation
  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Installation
  • Mounting type
  • Possible actuators
  • Installation opening
  • Weight
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Mounting type screwed from above screwed from above screwed from above
Possible actuators 30428112A , 30428102A 30428112S , 30428102S 30428112S 30428112B, 30428102B 30428102BS , 30428112BS 30428112A 30428102BS , 30428112BS 30428112A 30428112BSPC 30428112SPC
Installation opening 4.5mm 4.5mm 4.5mm
Weight 56 g 56 g
  • Connection
  • 153270
  • 153270AA
  • 153270A0E
  • 153270S
  • 153270SA0D
  • 153V62
  • 153270SA
  • 153V62A0D
  • 153V62SHD
  • 153270A0D
  • 153V62S
  • 153570AA
  • 153V62SHDPC
  • 153V62SPC
  • 153270SA0DPC
  • 153270SPC
  • Connection
  • Connector type
  • Cable length
  • Number of strands
  • Wire cross section
Attribute153270153270AA153270A0E153270S153270SA0D153V62153270SA153V62A0D153V62SHD153270A0D153V62S153570AA153V62SHDPC153V62SPC153270SA0DPC153270SPC
Bestellung
Bestellung
Connector type M8x1 4-polig M8x1 4-polig M8x1 4-polig M8x1 4-polig M8x1 4-polig
Cable length 1 m 1 m 1 m 1 m 1 m 1 m
Number of strands 4 4 6 4
Wire cross section 0.25 mm² 0.25 mm² 0.23 mm² 0.25 mm²
