Botão de emergência NHT05D

Botão de emergência NHT05D

  • Detente de travamento contra rotação e fácil remoção
  • Indicador de posição (anel verde)
  • Liberação rotativa do botão

Blocos de contato compatíveis:

KE20 – 2 NF
KE20SF – 2NF + proteção contra falhas*
KE21 – 2 NF + 1 NA
KE21SF – 2 NF + 1 NA + proteção contra falhas*

*O sistema de proteção contra falhas detecta se os elementos de contato estão montados corretamente e desliga o circuito de segurança se um elemento de contato se soltar devido a influências externas.

Relés de segurança compatíveis:

470… eloFlex Mini
471… eloFlex
485 EP… eloProg

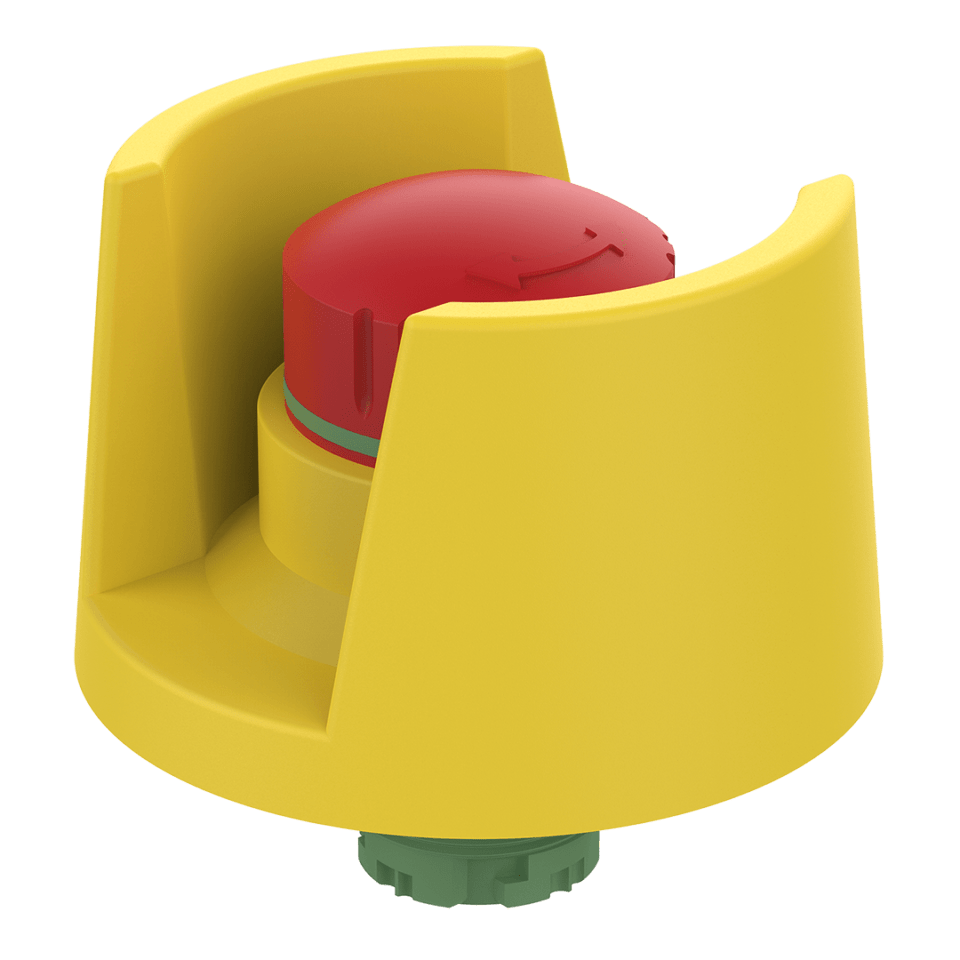

O colar de proteção do botão de emergência NHT05D evita acionamentos involuntários. Ideal para aplicação em áreas restritas com muita movimentação de pessoas próximas do equipamento, podendo ocorrer um acionamento involuntário do botão de emergência.

Desenho técnico

1/1
NHT05D-01
Tela cheia
1/1

Article characteristics

  • Attribute
  • NHT05D
  • Attribute
  • Unlocking device
  • Anti-obstruction protective collar
  • Operation protective collar
AttributeNHT05D
Bestellung
Bestellung
Unlocking device Rotary release left/right
Anti-obstruction protective collar no
Operation protective collar yes
  • Attribute
  • NHT05D
  • Attribute
  • Service life, mechanical (Cycles)
  • Dimensions
  • Detent present
AttributeNHT05D
Bestellung
Bestellung
Service life, mechanical (Cycles) 100000
Dimensions Ø67 x 60,9 mm
Detent present yes
  • Attribute
  • NHT05D
  • Attribute
  • Housing material
  • Housing colour
AttributeNHT05D
Bestellung
Bestellung
Housing material Plastic
Housing colour Front bezel: yello; Mushroom head: red
  • Attribute
  • NHT05D
  • Attribute
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeNHT05D
Bestellung
Bestellung
Protection class IP65 DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 70 °C
Min. storage temperature -50 °C
Max. storage temperature 85 °C
  • Attribute
  • NHT05D
  • Attribute
  • Mounting type
  • Installation opening
  • Installation
  • Torque for nuts
  • Installation depth
AttributeNHT05D
Bestellung
Bestellung
Mounting type Fastening nut
Installation opening Ø22,3 mm
Installation from above
Torque for nuts 2,2 N m
Installation depth 19.4 mm
  • Attribute
  • NHT05D
  • Attribute
  • Certified in accordance with
  • CE label
  • Hygienic approval
AttributeNHT05D
Bestellung
Bestellung
Certified in accordance with EN 60947-5-5 EN 60947-5-1 EN ISO 13850 UL 508 / CSA 22.2
CE label yes
Hygienic approval no
