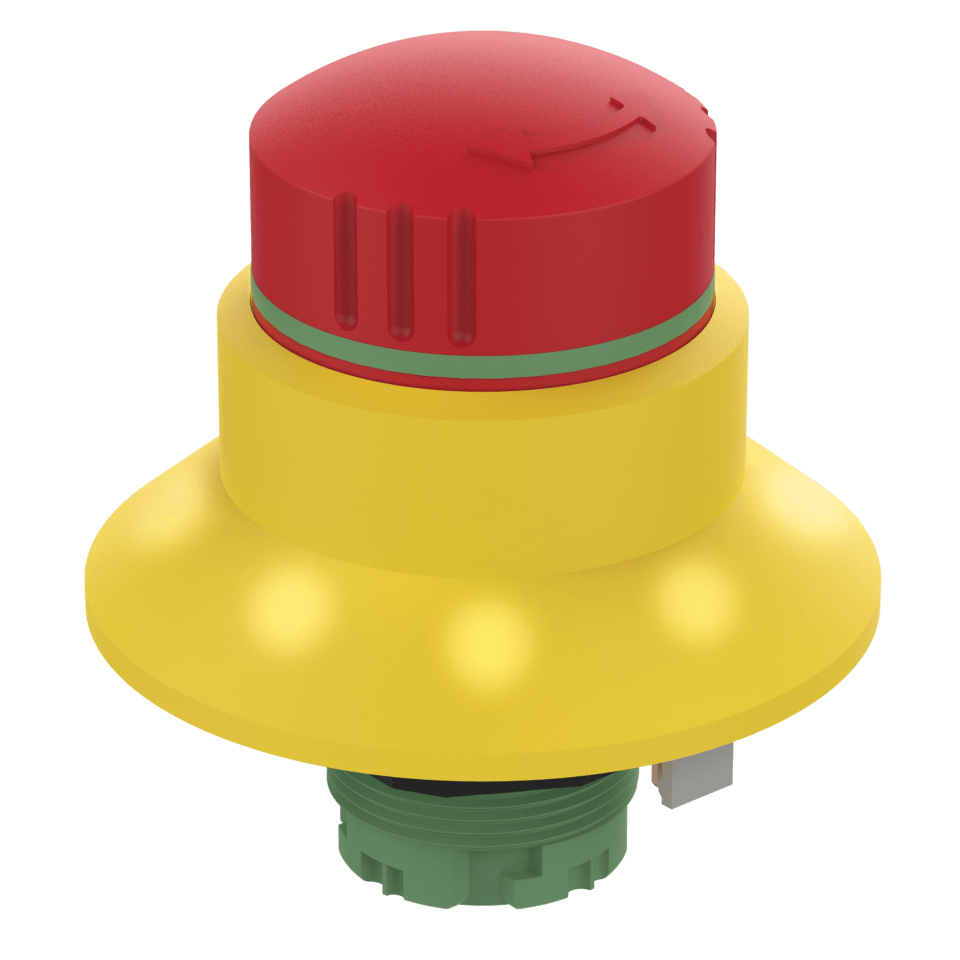

Botão de emergência NHT04D

Botão de emergência NHT04D

  • Detente de travamento contra rotação e fácil remoção
  • Indicador de posição (anel verde)
  • Liberação rotativa do botão

Blocos de contato compatíveis:

KE20SF – 2NF + proteção contra falhas*
KE21SF – 2 NF + 1 NA + proteção contra falhas*

*O sistema de proteção contra falhas detecta se os elementos de contato estão montados corretamente e desliga o circuito de segurança se um elemento de contato se soltar devido a influências externas.

Relés de segurança compatíveis:

470… eloFlex Mini
471… eloFlex
485 EP… eloProg



O colar de proteção contra obstrução do botão de emergência NHT04D inclui iluminação LED para facilitar sua identificação e operação em ambientes escuros – ou pode ser usado como status de funcionamento.

Desenho técnico

1/1
NHT04D-01
Tela cheia
1/1

Article characteristics

  • Attribute
  • NHT04D
  • Attribute
  • Illumination
  • Unlocking device
AttributeNHT04D
Bestellung
Bestellung
Illumination Yes
Unlocking device Rotary release left/right
  • Attribute
  • NHT04D
  • Attribute
  • Service life, mechanical (Cycles)
  • Dimensions
  • Detent present
AttributeNHT04D
Bestellung
Bestellung
Service life, mechanical (Cycles) 100000
Dimensions Ø55 x 60,9 mm
Detent present yes
  • Attribute
  • NHT04D
  • Attribute
  • Housing material
  • Housing colour
AttributeNHT04D
Bestellung
Bestellung
Housing material Plastic
Housing colour Front bezel: yello; Mushroom head: red
  • Attribute
  • NHT04D
  • Attribute
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeNHT04D
Bestellung
Bestellung
Protection class IP54 DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 55 °C
Min. storage temperature -50 °C
Max. storage temperature 85 °C
  • Attribute
  • NHT04D
  • Attribute
  • Mounting type
  • Installation opening
  • Installation
  • Torque for nuts
  • Installation depth
AttributeNHT04D
Bestellung
Bestellung
Mounting type Fastening nut
Installation opening Ø22,3 mm Einbauöffnung für Beleuchtungsanschluss notwendig
Installation from above
Torque for nuts 2,2 N m
Installation depth 19.4 mm
  • Attribute
  • NHT04D
  • Attribute
  • Certified in accordance with
  • CE label
  • Hygienic approval
  • Anti-obstruction protective collar
  • Operation protective collar
AttributeNHT04D
Bestellung
Bestellung
Certified in accordance with EN 60947-5-5 EN 60947-5-1 EN ISO 13850 UL 508 / CSA 22.2
CE label yes
Hygienic approval no
Anti-obstruction protective collar yes
Operation protective collar no
