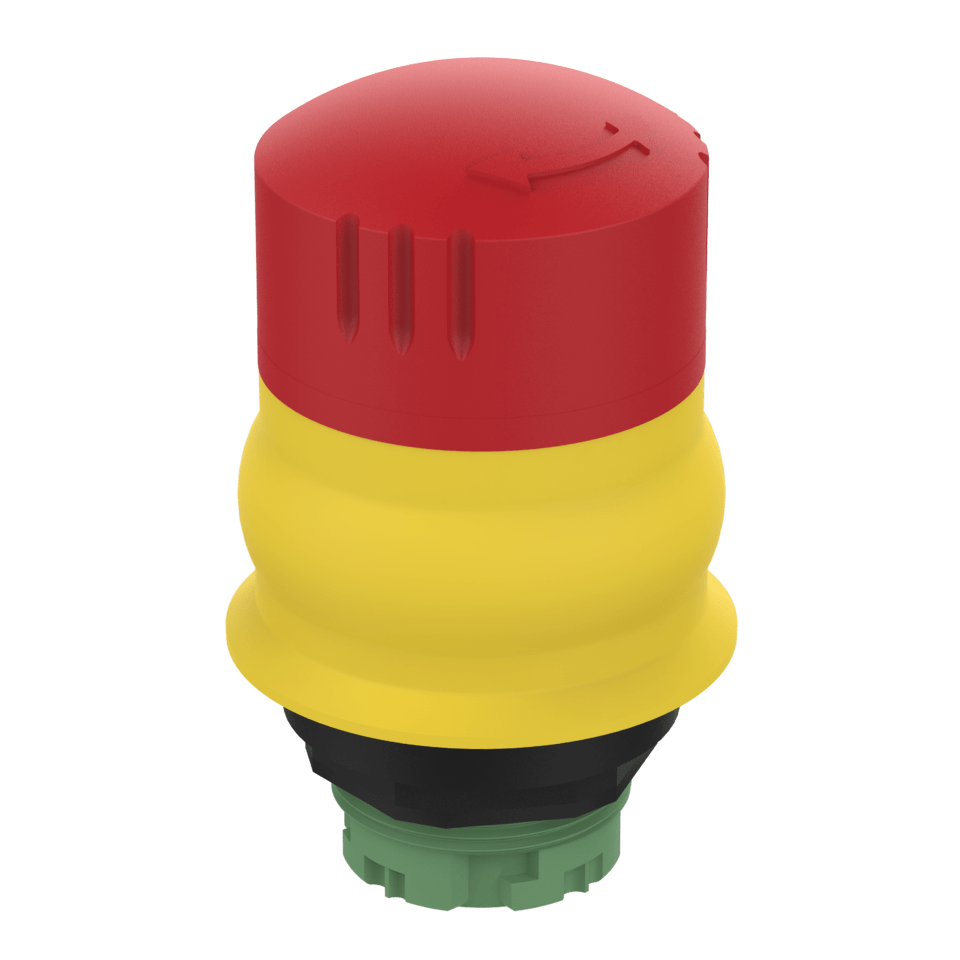

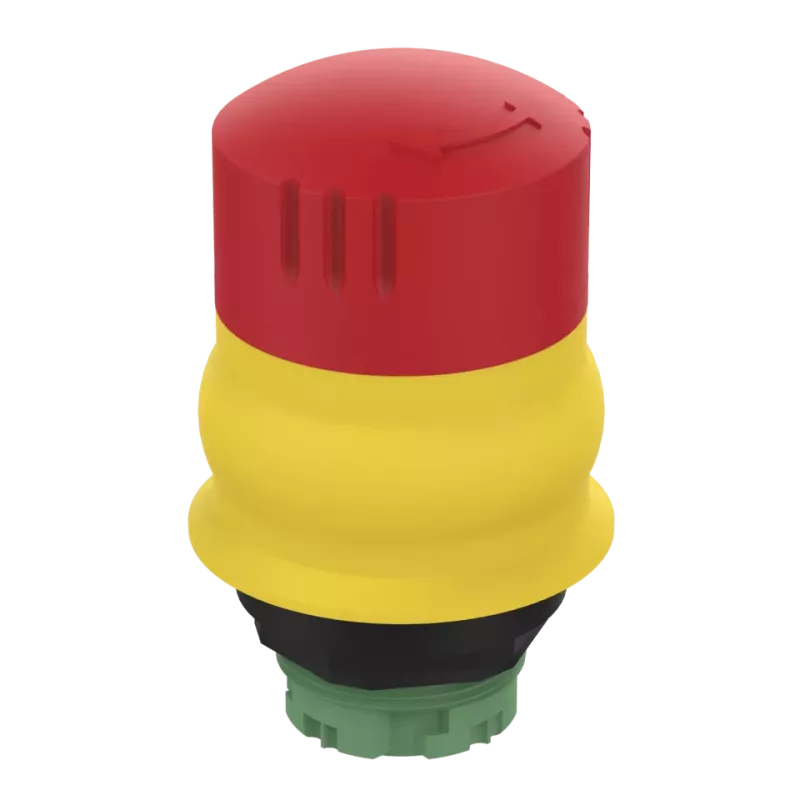

Botão de emergência NHT02D

Botão de emergência NHT02D

  • Detente de travamento contra rotação e fácil remoção
  • Indicador de posição (anel verde)
  • Liberação rotativa do botão

Blocos de contato compatíveis:

KE20 – 2 NF
KE20SF – 2NF + proteção contra falhas*
KE21 – 2 NF + 1 NA
KE21SF – 2 NF + 1 NA + proteção contra falhas*

*O sistema de proteção contra falhas detecta se os elementos de contato estão montados corretamente e desliga o circuito de segurança se um elemento de contato se soltar devido a influências externas.

Relés de segurança compatíveis:

470… eloFlex Mini
471… eloFlex
485 EP… eloProg



Design compacto, ideal para aplicação em painéis de controle com espaço restrito de montagem.

Desenho técnico

1/1
NHT02D-01
Tela cheia
1/1

Article characteristics

  • Attribute
  • NHT02D
  • Attribute
  • Illumination
  • Unlocking device
  • Anti-obstruction protective collar
  • Operation protective collar
AttributeNHT02D
Bestellung
Bestellung
Illumination No
Unlocking device Rotary release left/right
Anti-obstruction protective collar no
Operation protective collar no
  • Attribute
  • NHT02D
  • Attribute
  • Service life, mechanical (Cycles)
  • Dimensions
  • Detent present
AttributeNHT02D
Bestellung
Bestellung
Service life, mechanical (Cycles) 6050
Dimensions Ø37 x 61 mm
Detent present yes
  • Attribute
  • NHT02D
  • Attribute
  • Housing material
  • Housing colour
AttributeNHT02D
Bestellung
Bestellung
Housing material Plastic
Housing colour Front bezel: yello; Mushroom head: red
  • Attribute
  • NHT02D
  • Attribute
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeNHT02D
Bestellung
Bestellung
Protection class IP69K DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 70 °C
Min. storage temperature -50 °C
Max. storage temperature 85 °C
  • Attribute
  • NHT02D
  • Attribute
  • Mounting type
  • Installation opening
  • Installation
  • Torque for nuts
  • Installation depth
AttributeNHT02D
Bestellung
Bestellung
Mounting type Fastening nut
Installation opening Ø22,3 mm
Installation from above
Torque for nuts 1,5 - 2,2 N m
Installation depth 18.9 mm
  • Attribute
  • NHT02D
  • Attribute
  • Certified in accordance with
  • CE label
  • Hygienic approval
AttributeNHT02D
Bestellung
Bestellung
Certified in accordance with EN 60947-5-5 EN 60947-5-1 EN ISO 13850 DIN EN 1672-2 GS-FW 01/01 UL 508 / CSA 22.2
CE label yes
Hygienic approval yes
