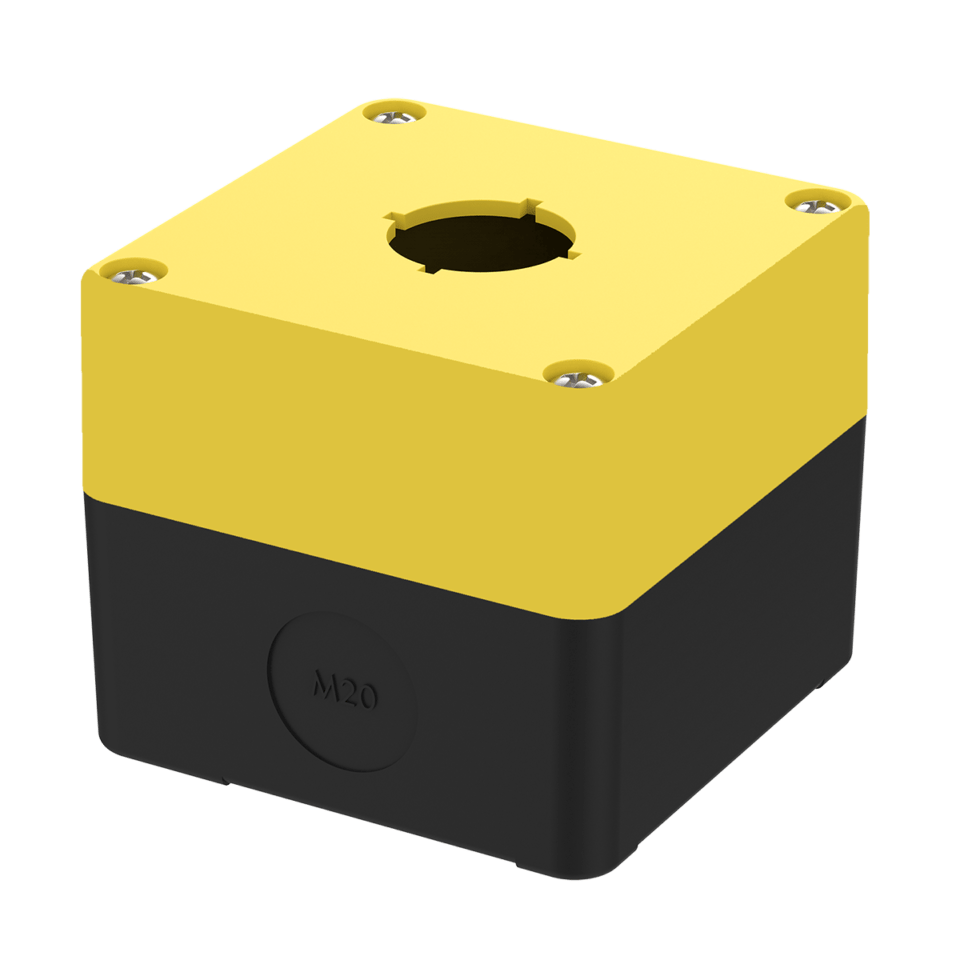

Caixa para botão de emergência NHG01

Caixa para botão de emergência NHG01

  • Classe de proteção IP65, podendo atingir IP69K dependendo do botão de emergência
  • Caixa plástica para instalação de botões emergência

Desenho técnico

1/1
NHG01_technical_drawing
Tela cheia
1/1

Article characteristics

  • Attribute
  • NHG01
  • Attribute
  • Dimensions
AttributeNHG01
Bestellung
Bestellung
Dimensions 72 x 72 x 62,5 mm (H/B/T)
  • Attribute
  • NHG01
  • Attribute
  • Housing material
  • Housing colour
AttributeNHG01
Bestellung
Bestellung
Housing material Kunststoff
Housing colour Unterteil: schwarz Oberteil: gelb
  • Attribute
  • NHG01
  • Attribute
  • Protection class
AttributeNHG01
Bestellung
Bestellung
Protection class IP68 DIN EN 60529
  • Attribute
  • NHG01
  • Attribute
  • Mounting type
  • Weight
  • Installation
  • Installation opening
  • Installation depth
AttributeNHG01
Bestellung
Bestellung
Mounting type screwed
Weight 96 g
Installation arbitrary
Installation opening Ø22,3 mm
Installation depth 59 mm
  • Attribute
  • NHG01
  • Attribute
  • Certified in accordance with
AttributeNHG01
Bestellung
Bestellung
Certified in accordance with UL 508 / CSA 22.2
