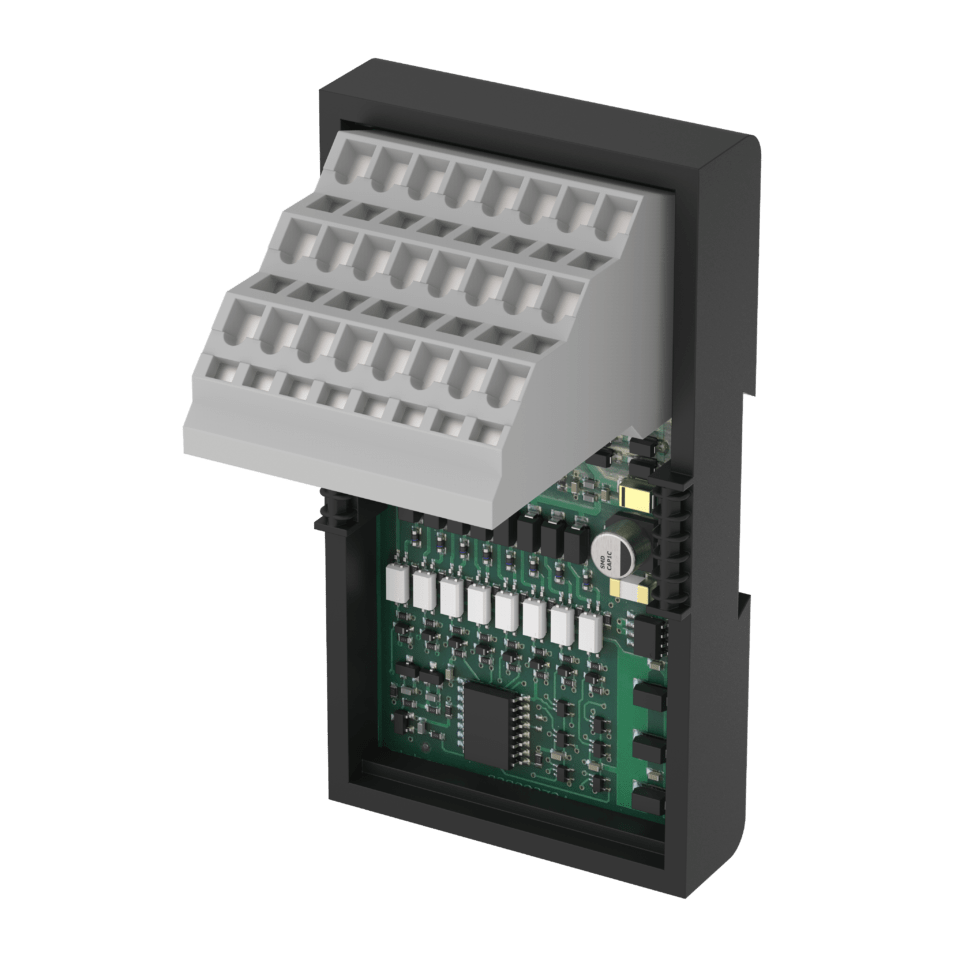

Módulo de expansão de entradas

Disponível no elostore

Módulo de expansão de entradas

Disponível no elostore
  • Categoria de segurança PLd de acordo com a norma EN ISO 13849-1 e SIL2 de acordo com a norma IEC 61508
  • Terminais de engate rápido
  • LEDs para diagnóstico de status e sinal de saída de controle
  • Número de sensores pode ser aumentado para 4 por sinal de entrada
  • Montagem em cascata permite conexão de até 64 sensores em uma unidade de controle*

*
Para atingir o nível de segurança máximo, é necessário integrar os sinais de saída de controle no monitoramento (iniciar o inter travamento em caso de falha). Se as interfaces estiverem em cascata, isso pode resultar em uma redução do nível de segurança máximo PL.

Com os módulos de expansão, o número de entradas e saídas de segurança podem ser aumentados. Um grande número de funções de segurança pode ser monitorado por vários módulos montados em série.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/4
363_9_technical_drawing_01
Tela cheia
1/4
2/4
363_9_technical_drawing_02
Tela cheia
2/4
3/4
363_9_technical_drawing_03
Tela cheia
3/4
4/4
363_9_technical_drawing_04
Tela cheia
4/4

Article characteristics

  • Electrical data
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Electrical data
  • Max. switching voltage at safety output
  • Max. switching voltage at control output
  • Max. switching current per channel
  • Number of electronic safety outputs
  • Number of electronic control outputs
  • Number of redundant safety inputs
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Power consumption
  • LED display
  • Operating time
  • Fuse operating voltage
  • Pollution degree
  • Protection class
  • Overvoltage category
  • Contact form
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Max. switching voltage at safety output 26.4 V DC
Max. switching voltage at control output 26.4 V DC
Max. switching current per channel 0.02 A
Number of electronic safety outputs 1
Number of electronic control outputs 1 4
Number of redundant safety inputs 4
Operating voltage min. 21.6 V DC
Operating voltage max. 26.4 V DC
Current consumption 100 mA
Power consumption 2.4 W
LED display single-coloured
Operating time 3000 ms
Fuse operating voltage 1A slow blow
Pollution degree 1
Protection class III
Overvoltage category III
Contact form NO/NC NO/NO NO/NC
  • Mechanical data
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Mechanical data
  • Dimensions
  • Housing colour
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Dimensions 96 x 51 x 56 mm (H/B/T)
Housing colour schwarz
  • Material information
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Material information
  • Housing material
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Housing material PA
  • Environmental conditions
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Environmental conditions
  • Protection class
  • Protection class, installation space
  • Operating temperature min.
  • Max. operating temperature
  • Relative humidity
  • Min. storage temperature
  • Max. storage temperature
  • Shock resistance (Norm)
  • Continuous shock resistance (Norm)
  • Vibration resistance (Norm)
  • Air pressure
  • Delta tmax
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Protection class IP00 DIN EN 60529
Protection class, installation space IP54 DIN EN 60529
Operating temperature min. 0 °C
Max. operating temperature 55 °C
Relative humidity 5 - 85 %
Min. storage temperature 0 °C
Max. storage temperature 55 °C
Shock resistance (Norm) 30 g / 11 ms
Continuous shock resistance (Norm) 10 g / 16 ms
Vibration resistance (Norm) 10...55 Hz
Air pressure 860 - 1060 hPa
Delta tmax 0.5 °C/min
  • Installation
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Installation
  • Mounting type
  • Weight
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Mounting type Mounting rail
Weight 100 g
  • Connection
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Connection
  • Spring-type terminals
  • Pluggable connection terminals
  • Min. connection cross section
  • Max. connection cross section
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Spring-type terminals yes
Pluggable connection terminals no
Min. connection cross section 0.08 mm²
Max. connection cross section 2.5 mm²
  • Approvals
  • 363G96K30
  • 363G97
  • 363V97
  • 363096K30
  • Approvals
  • Certified in accordance with
  • CE label
Attribute363G96K30363G97363V97363096K30
Bestellung
Bestellung
Certified in accordance with EN ISO 13849-1, IEC 61508, UL 508/CSA 22.2
CE label yes
1/1
363_ordering-key_06-2021
Tela cheia
1/1
