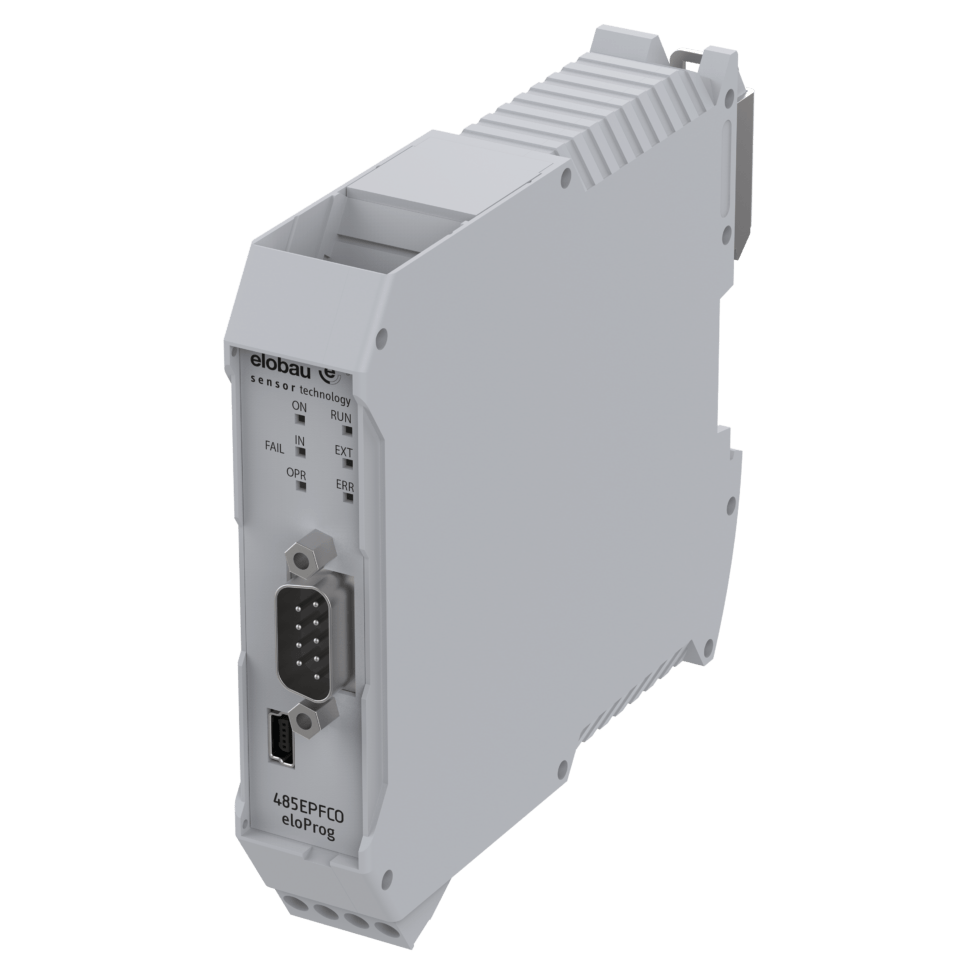

eloProg – Controlador de segurança modular programável – Módulo fieldbus

Avalie este produto

eloProg – Controlador de segurança modular programável – Módulo fieldbus

Avalie este produto
  • Todos os protocolos de comunicação fieldbus disponíveis no mercado
  • Endereços selecionáveis ​​via barramento
  • Cconexão por barramento reduz o tempo de montagem e espaço no painel de controle
  • Diferentes taxas de transmissão dependendo do protocolo fieldbus selecionado
  • Conector T pré-montado (barramento de 5 vias) para conexão ao módulo básico simplifica a fiação e economiza espaço no painel de controle

Conexão direta ao CLP da máquina através de módulos fieldbus.

Até 1 módulo fieldbus pode ser conectado ao módulo básico por meio de conector T montado na parte traseira do módulo. Status é exibido por meio de LEDs na parte frontal.

View my requests

Desenho técnico

1/1
Cat_MS_SAE_485_Auswerteeinheit_DRW1
Tela cheia
1/1

Article characteristics

  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Transmission rate
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Transmission rate max. 1 MBit/s 125 kBit/s 250 kBit/ – 100 MBit/s – 12 MBit/s –
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Operating voltage min.
  • Operating voltage max.
  • LED display
  • Fieldbus system
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Operating voltage min. 19.2 V DC 19.2 V DC
Operating voltage max. 28.8 V DC 28.8 V DC
LED display two-coloured two-coloured
Fieldbus system CANopen DeviceNet EtherCat Ethernet IP 2x Ethernet IP Modbus RTU Modbus TCP Profibus DP USB interface module
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Selectable station address
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Selectable station address 0...125 0...63 Depending on the configuration 1...127 Depending on the configuration
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Dimensions
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Dimensions 108 x 22,5 x 114,5 mm (H/B/T) 108 x 22,5 x 114,5 mm (H/B/T)
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Housing material
  • Housing colour
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Housing material PA PA
Housing colour grau grau
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Protection class, housing
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Relative humidity
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Protection class, housing IP20 DIN EN 60529 IP20 DIN EN 60529
Operating temperature min. -10 °C -10 °C
Max. operating temperature 55 °C 55 °C
Min. storage temperature -20 °C -20 °C
Max. storage temperature 85 °C 85 °C
Relative humidity 10...95 % 10...95 %
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Mounting type
  • Weight
  • Torque for connection terminals
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Mounting type Mounting rail Mounting rail
Weight 150 g 150 g
Torque for connection terminals 0.6 N m 0.6 N m
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Connection present on PC
  • Connection to base module
  • Screw terminals
  • Pluggable connection terminals
  • Min. connection cross section
  • Max. connection cross section
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Connection present on PC yes yes
Connection to base module propriertary 5-way bus (T-connector) propriertary 5-way bus (T-connector)
Screw terminals yes yes
Pluggable connection terminals yes yes
Min. connection cross section 0.5 mm² 0.5 mm²
Max. connection cross section 2.5 mm² 2.5 mm²
  • Attribute
  • 485EPFCO
  • 485EPFDN
  • 485EPFEC
  • 485EPFEI
  • 485EPFEI2
  • 485EPFMR
  • 485EPFMT
  • 485EPFPD
  • 485EPFUB
  • Attribute
  • Certified in accordance with
Attribute485EPFCO485EPFDN485EPFEC485EPFEI485EPFEI2485EPFMR485EPFMT485EPFPD485EPFUB
Bestellung
Bestellung
Certified in accordance with UL 508 / CSA 22.2 UL 508 / CSA 22.2
1/1
485EPF_ordering_key
Tela cheia
1/1
Operating instructions and product information
Manual eloProg fieldbus modules 485EPF... pdf 4 MB
GSDML file for Profinet 2 port zip 71 KB

Download
