Desenho técnico

1/6
Cat_K14_00__DRW
Tela cheia
1/6
2/6
Cat_K14_00__CON
Tela cheia
2/6
3/6
Cat_K14_00__CD
Tela cheia
3/6
4/6
Cat_K18_00__DRW1
Tela cheia
4/6
5/6
Cat_K18_00__CON
Tela cheia
5/6
6/6
Cat_K18_00__CD
Tela cheia
6/6

Article characteristics

  • Attribute
  • K14G...
  • K14G...K
  • K14H...
  • K15G...K
  • K15H...K
  • K16G...K
  • K16H...K
  • K17G...K
  • K17H...K
  • K18G...K
  • Attribute
  • Max. switching current per contact
  • Rated impulse withstand voltage (Uimp)
  • Operating voltage max.
  • Operating voltage max.
AttributeK14G...K14G...KK14H...K15G...KK15H...KK16G...KK16H...KK17G...KK17H...KK18G...K
Bestellung
Bestellung
Max. switching current per contact 4 A 4 A 2 A
Rated impulse withstand voltage (Uimp) 2500 V 1500 V 800 V
Operating voltage max. 250 V DC 125 V DC 30 V DC
Operating voltage max. 250 V AC 125 V AC 30 V AC
  • Attribute
  • K14G...
  • K14G...K
  • K14H...
  • K15G...K
  • K15H...K
  • K16G...K
  • K16H...K
  • K17G...K
  • K17H...K
  • K18G...K
  • Attribute
  • Nut material
  • Overmould material
  • Cable material
AttributeK14G...K14G...KK14H...K15G...KK15H...KK16G...KK16H...KK17G...KK17H...KK18G...K
Bestellung
Bestellung
Nut material Nickel-plated die-cast zinc PA Nickel-plated die-cast zinc PA PA
Overmould material PUR PVC PUR PVC PUR PVC PUR
Cable material PVC PUR PVC PUR PVC PUR PVC PUR PVC
  • Attribute
  • K14G...
  • K14G...K
  • K14H...
  • K15G...K
  • K15H...K
  • K16G...K
  • K16H...K
  • K17G...K
  • K17H...K
  • K18G...K
  • Attribute
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Min. storage temperature
  • Max. storage temperature
AttributeK14G...K14G...KK14H...K15G...KK15H...KK16G...KK16H...KK17G...KK17H...KK18G...K
Bestellung
Bestellung
Min. cable temperature range, moving -5 °C -25 °C -5 °C -25 °C -5 °C -25 °C -5 °C -25 °C -5 °C
Max. cable temperature range, moving 70 °C 80 °C 80 °C
Min. cable temperature range, fixed installation -25 °C -30 °C -25 °C -30 °C -40 °C -30 °C -40 °C -30 °C -40 °C -30 °C
Max. cable temperature range, fixed installation 70 °C 80 °C 80 °C
Min. storage temperature -25 °C -30 °C -25 °C -30 °C -40 °C -30 °C -40 °C -30 °C -40 °C -30 °C
Max. storage temperature 70 °C 80 °C 80 °C
  • Attribute
  • K14G...
  • K14G...K
  • K14H...
  • K15G...K
  • K15H...K
  • K16G...K
  • K16H...K
  • K17G...K
  • K17H...K
  • K18G...K
  • Attribute
  • Torque for nuts
AttributeK14G...K14G...KK14H...K15G...KK15H...KK16G...KK16H...KK17G...KK17H...KK18G...K
Bestellung
Bestellung
Torque for nuts 0,6 N m 0,6 N m
  • Attribute
  • K14G...
  • K14G...K
  • K14H...
  • K15G...K
  • K15H...K
  • K16G...K
  • K16H...K
  • K17G...K
  • K17H...K
  • K18G...K
  • Attribute
  • Connector type
  • Cable colour
  • Cable length
  • Cable diameter
  • Number of pins
  • Number of strands
  • Wire cross section
  • Cable type
AttributeK14G...K14G...KK14H...K15G...KK15H...KK16G...KK16H...KK17G...KK17H...KK18G...K
Bestellung
Bestellung

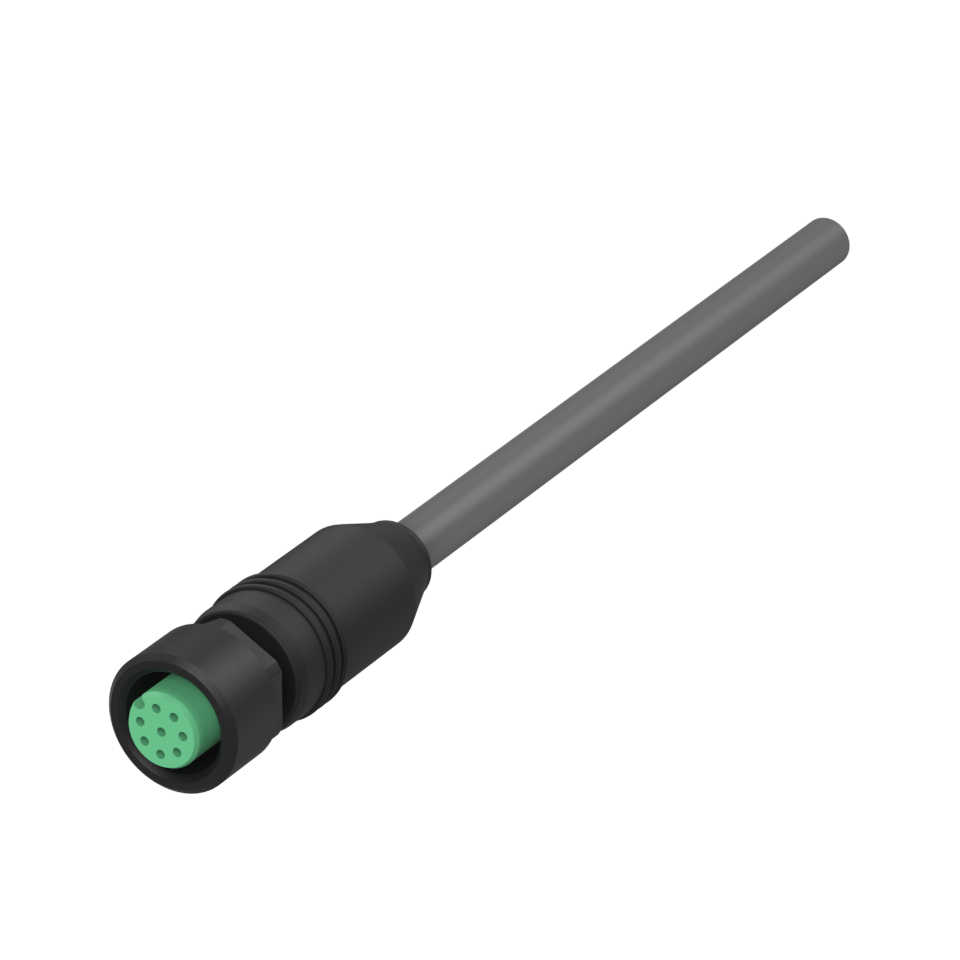

Connector type M12 socket, straight M12 socket, angled M12 socket, straight M12 socket, angled M12 socket, straight
Cable colour Black Grey Black Black Grey
Cable length 10 m 10 m
Cable diameter 5 mm 4,7 mm 5 mm 4,7 mm 5,2 mm 5 mm 5,2 mm 5 mm 6 mm
Number of pins 4 5 8
Number of strands 4 5 8
Wire cross section 0.34 mm² 0.25 mm² 0.34 mm² 0.34 mm² 0.25 mm²
Cable type LIYY
  • Attribute
  • K14G...
  • K14G...K
  • K14H...
  • K15G...K
  • K15H...K
  • K16G...K
  • K16H...K
  • K17G...K
  • K17H...K
  • K18G...K
  • Attribute
  • Certified in accordance with
AttributeK14G...K14G...KK14H...K15G...KK15H...KK16G...KK16H...KK17G...KK17H...KK18G...K
Bestellung
Bestellung
Certified in accordance with UL/CSA UL/CSA ECOLAB UL/CSA UL/CSA ECOLAB UL/CSA ECOLAB
1/1
K14_K18_ordering_key
Tela cheia
1/1
