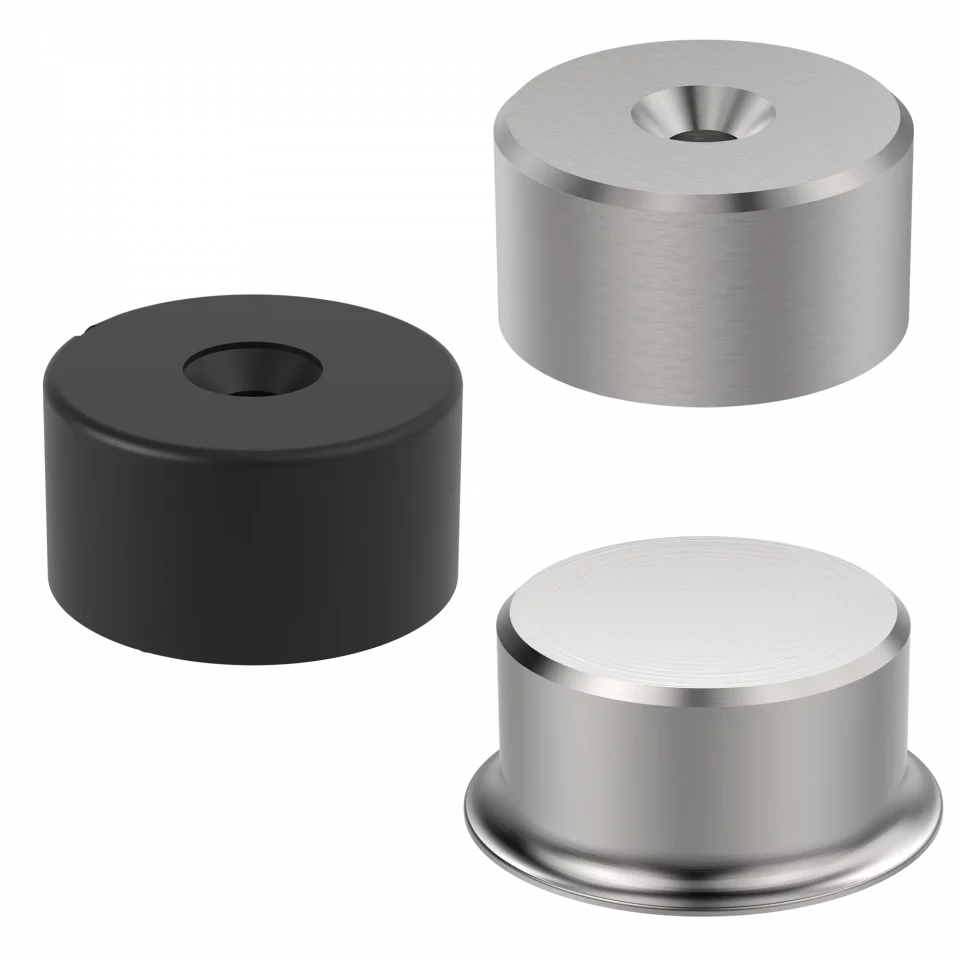

Atuador magnético 30420000

Disponível no elostore

Atuador magnético 30420000

Disponível no elostore
  • Design e material compatível com ampla gama de aplicações
  • Pode ser usado em condições ambientais adversas devido à carcaça em aço inoxidável
  • Design higiênico disponível
  • Atuador padrão, disponível também com atuador reforçado para distâncias de comutação maiores
  • Possível montagem oculta
  • Disponível em plástico PBT e aço inox 1.4404

O atuador magnético 30420000 é usado nos sensores de segurança 120..2, 171 e 671, mas pode ser utilizado em uma ampla gama de aplicações.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/1
Cat_30420000_DRW1
Tela cheia
1/1

Article characteristics

  • Properties
  • 30420000
  • 30420000S
  • 30420000SH
  • 30420000V
  • 30420000VH
  • 30420000VS
  • Properties
  • Coding acc. to EN ISO 14119
  • Suitable for sensor type(s)
Attribute3042000030420000S30420000SH30420000V30420000VH30420000VS
Bestellung
Bestellung
Coding acc. to EN ISO 14119 Low
Suitable for sensor type(s) 171 / 671 / 120..2 / 171K / 117
  • Mechanical data
  • 30420000
  • 30420000S
  • 30420000SH
  • 30420000V
  • 30420000VH
  • 30420000VS
  • Mechanical data
  • Dimensions
Attribute3042000030420000S30420000SH30420000V30420000VH30420000VS
Bestellung
Bestellung
Dimensions 30x16 36x16 30.4x16 36x16 30.4x16
  • Material information
  • 30420000
  • 30420000S
  • 30420000SH
  • 30420000V
  • 30420000VH
  • 30420000VS
  • Material information
  • Housing material
  • Housing colour
Attribute3042000030420000S30420000SH30420000V30420000VH30420000VS
Bestellung
Bestellung
Housing material PBT 1.4404
Housing colour schwarz silber
  • Installation
  • 30420000
  • 30420000S
  • 30420000SH
  • 30420000V
  • 30420000VH
  • 30420000VS
  • Installation
  • Mounting type
Attribute3042000030420000S30420000SH30420000V30420000VH30420000VS
Bestellung
Bestellung
Mounting type screwed
1/1
30420000_ordering_key
Tela cheia
1/1
