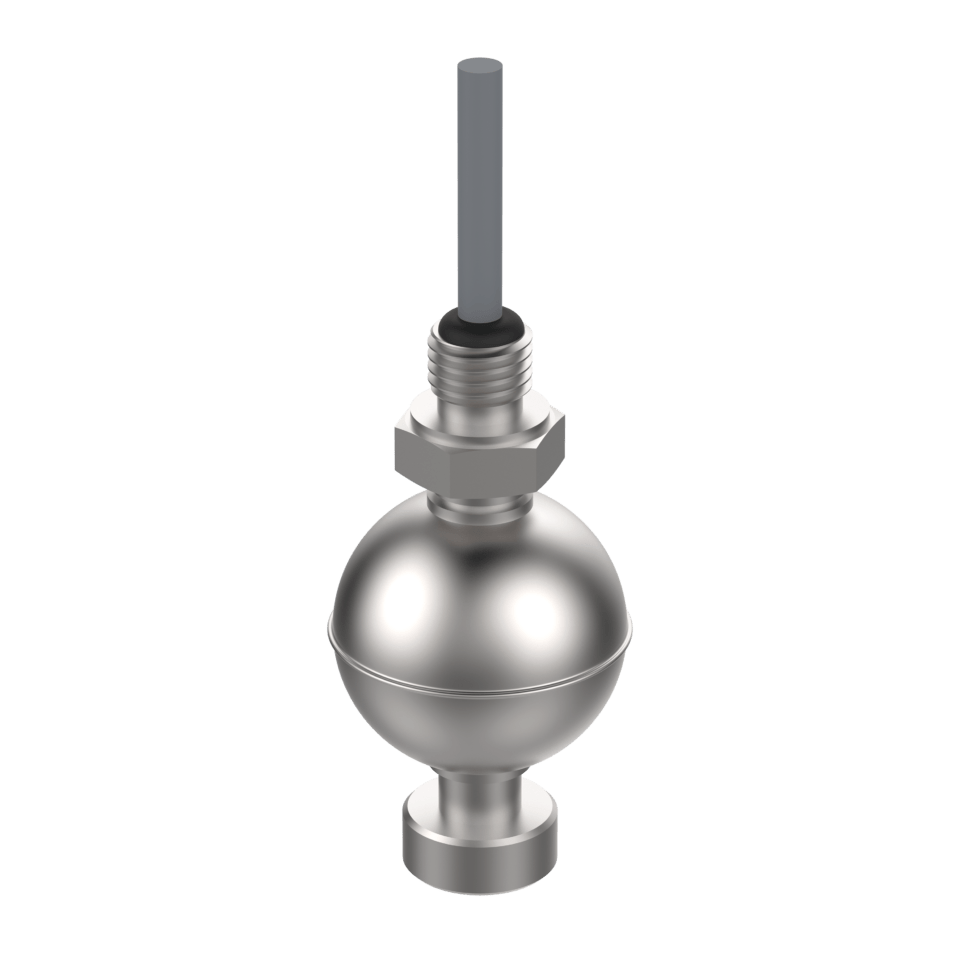

Boia de nível magnética 20341103

Boia de nível magnética 20341103

Especificação Técnica

  • Rosca G 1/8″
  • Sistema de engate rápido para fácil instalação
  • Material: aço inox
  • Tensão máx. 48 V
  • Tipo de contato: NA
  • Temperatura de trabalho de -25 °C até +100 °C
  • Classe de proteção IP67
  • Suporta elevadas pressões de trabalho até 33 bar
  • Pode ser fornecido opcionalmente com sensor de temperatura

Devido à seu design compacto e medição confiável, a boia de nível elobau modelo 20341103 com rosca G 1/8″ é ideal para aplicação em equipamentos móbil e controle de processos industriais. A boias de nível elobau podem ser personalizadas de acordo com a sua necessidade através de forma simples e rápida em nosso configurador de produto on-line.

Desenho técnico

1/2
Cat_LEV_20341103_VA_DRW1
Tela cheia
1/2
2/2
Cat_LEV_20341103_VA_CD
Tela cheia
2/2

Article characteristics

  • Electrical data
  • 20341103
  • Electrical data
  • Max. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Contact form
  • Output signal
  • Technology
  • Switching point function
  • Change of switching function by turning the float
Attribute20341103
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching voltage 48 V AC
Max. switching current 0.5 A
Max. switching power 10 W
Contact form 1A
Output signal digital
Technology Reed
Switching point function Rising level
Change of switching function by turning the float yes
  • Mechanical data
  • 20341103
  • Mechanical data
  • Recommended minimum density of the medium
  • Float diameter
  • Version
Attribute20341103
Bestellung
Bestellung
Recommended minimum density of the medium 0.7 g/cm³
Float diameter 29 mm
Version Straight
  • Material information
  • 20341103
  • Material information
  • Housing material
  • Float material
  • Riser material
  • Cable material
Attribute20341103
Bestellung
Bestellung
Housing material VA 1.4571
Float material VA 1.4571
Riser material VA 1.4571
Cable material PVC
  • Environmental conditions
  • 20341103
  • Environmental conditions
  • Operating temperature min.
  • Max. operating temperature
  • Pressure resistance
  • Protection class outside container
  • Protection class inside container
Attribute20341103
Bestellung
Bestellung
Operating temperature min. -25 °C
Max. operating temperature 100 °C
Pressure resistance 33 bar
Protection class outside container IP67 DIN EN 60529
Protection class inside container IP68 DIN EN 60529
  • Installation
  • 20341103
  • Installation
  • Installation
  • Mounting type
  • Thread
  • Riser diameter
  • Riser length
  • Installation opening
  • Torque
Attribute20341103
Bestellung
Bestellung
Installation from inside
Mounting type Thread
Thread G 1/8
Riser diameter 8 mm
Riser length 48 mm
Installation opening G 1/8
Torque 5 N m
  • Connection
  • 20341103
  • Connection
  • Connector type
  • Cable length
Attribute20341103
Bestellung
Bestellung
Connector type -
Cable length 1 m
1/1
20341103_ordering-key
Tela cheia
1/1
