Sensor de nível 2..2 / 2..3

Sensor de nível 2..2 / 2..3

  • Tecnologia de sensores magnético (reed switch)
  • Roscas: G 1.5″, G 2″ 1.5″ NPT ou 2″ NPT
  • Range de medição até 2500 mm
  • Materiais: PVC, PP, PA 12, aço inox ou PVDF
  • Sinal de saída em tensão ou corrente
  • Até 4 sinais de saída digital programáveis
  • Resolução de medição 10-35 mm (padrão 10 mm / 20 mm)
  • Temperatura de trabalho -40 °C até +85 °C
  • Sensor de temperatura opcional

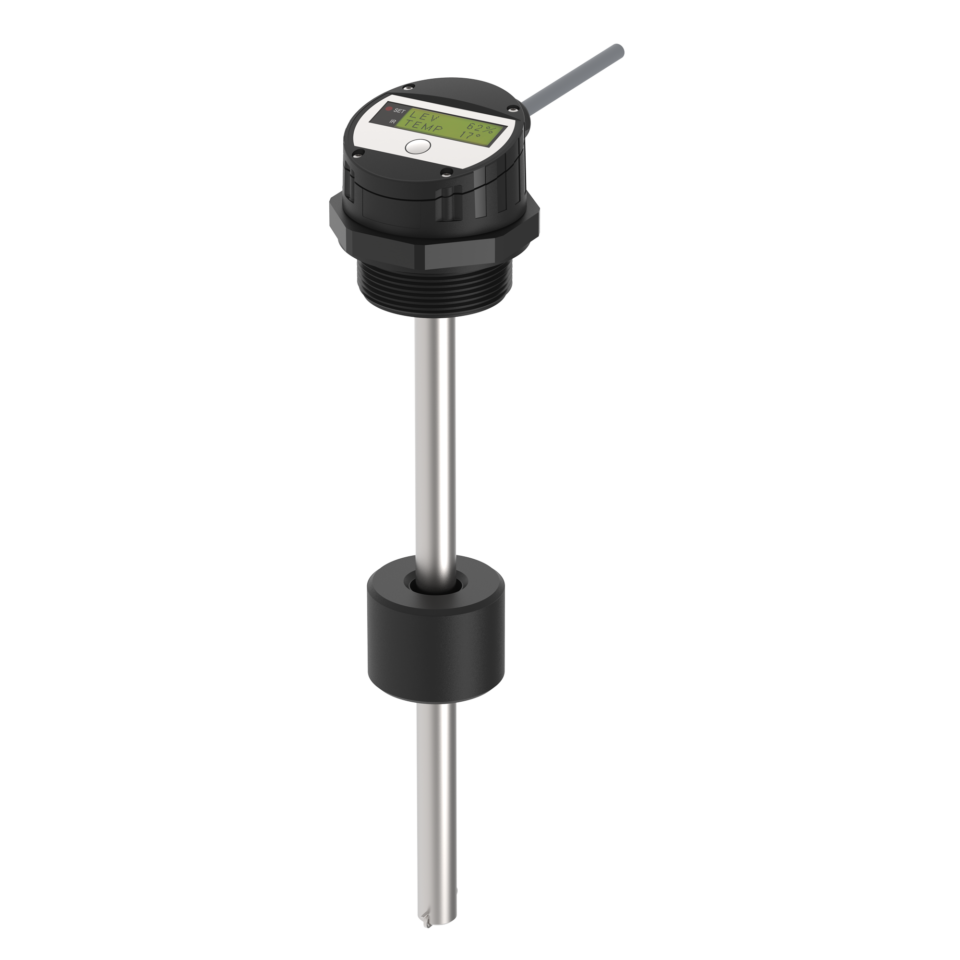

Este sensor de nível com sinal de saída analógico está disponível até 2500 mm e cabeçote giratório de 360 ​​° que oferece flexibilidade durante sua montagem e operação.

O sensor de nível modelo 2..2 / 2..3 oferece opcionalmente um display em LCD ou controle remoto para parametrização do sensor

O cliente ainda pode optar por diferentes materiais, comprimento de medição e resolução do sensor, podendo desta forma ser usado em uma infinidade de aplicações industriais e móbil.

Desenho técnico

1/6
Cat_LEV_2__2___VA_Kunststoff_drehbar_DRW1
Tela cheia
1/6
2/6
Cat_LEV_2__2___VA_Kunststoff_drehbar_CD1
Tela cheia
2/6
3/6
Cat_LEV_2__3___VA_Kunststoff_fest_DRW1
Tela cheia
3/6
4/6
Cat_LEV_2__3___VA_Kunststoff_fest_DRW2
Tela cheia
4/6
5/6
Cat_LEV_2__3___VA_Kunststoff_fest_CON1
Tela cheia
5/6
6/6
Cat_LEV_2__3___VA_Kunststoff_fest_CD1
Tela cheia
6/6

Article characteristics

  • Electrical data
  • 212232....
  • 215232....
  • Electrical data
  • Min. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Polarity reversal protection
  • Switching output
  • Output signal min.
  • Output signal max.
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Linearity error
  • Technology
  • Outputs
  • Number of switching outputs
  • Temperature output
  • Lower blind zone
  • Spacing
Attribute212232....215232....
Bestellung
Bestellung
Min. switching voltage 9 V DC
Max. switching voltage 32 V DC
Max. switching current 0.5 A
Polarity reversal protection yes
Switching output low-side (open drain)
Output signal min. 4 mA
Output signal max. 20 mA
EMC immunity (Norm) DIN EN IEC 61000-6-2
EMC emission (Norm) DIN EN 55011
Operating voltage min. 9 V DC
Operating voltage max. 32 V DC
Current consumption 68 mA
Linearity error 2 %
Technology Reed
Outputs analog + digital
Number of switching outputs 3
Temperature output yes
Lower blind zone siehe Bestellschlüssel
Spacing siehe Bestellschlüssel
  • Properties
  • 212232....
  • 215232....
  • Properties
  • Application area
  • Rotatable head
Attribute212232....215232....
Bestellung
Bestellung
Application area Industry
Rotatable head yes
  • Mechanical data
  • 212232....
  • 215232....
  • Mechanical data
  • Recommended minimum density of the medium
  • Float diameter
Attribute212232....215232....
Bestellung
Bestellung
Recommended minimum density of the medium 0.65 g/cm³
Float diameter 39 mm
  • Material information
  • 212232....
  • 215232....
  • Material information
  • Housing material
  • Float material
  • Riser material
  • Cable material
  • Sealing material
Attribute212232....215232....
Bestellung
Bestellung
Housing material PA12
Float material PA12
Riser material VA 1.4571
Cable material PVC
Sealing material FKM (Viton)
  • Environmental conditions
  • 212232....
  • 215232....
  • Environmental conditions
  • Protection class, mechanical
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Vibration resistance (Norm)
  • Pressure resistance
  • ESD insulation resistance (Norm)
Attribute212232....215232....
Bestellung
Bestellung
Protection class, mechanical IP67 DIN EN 60529
Operating temperature min. -20 °C
Max. operating temperature 70 °C
Min. storage temperature -30 °C
Max. storage temperature 80 °C
Vibration resistance (Norm) DIN EN 60068-2-6 DIN EN 60068-2-64
Pressure resistance 3 bar
ESD insulation resistance (Norm) DIN EN 61000-4-2
  • Installation
  • 212232....
  • 215232....
  • Installation
  • Mounting type
  • Thread
  • Riser diameter
  • Installation opening
  • Torque
Attribute212232....215232....
Bestellung
Bestellung
Mounting type Thread
Thread G 2 G 1 1/2
Riser diameter 12 mm
Installation opening G 2 G 1 1/2
Torque 40 N m
  • Connection
  • 212232....
  • 215232....
  • Connection
  • Connector type
  • Cable length
Attribute212232....215232....
Bestellung
Bestellung
Connector type M12
Cable length 3 m
