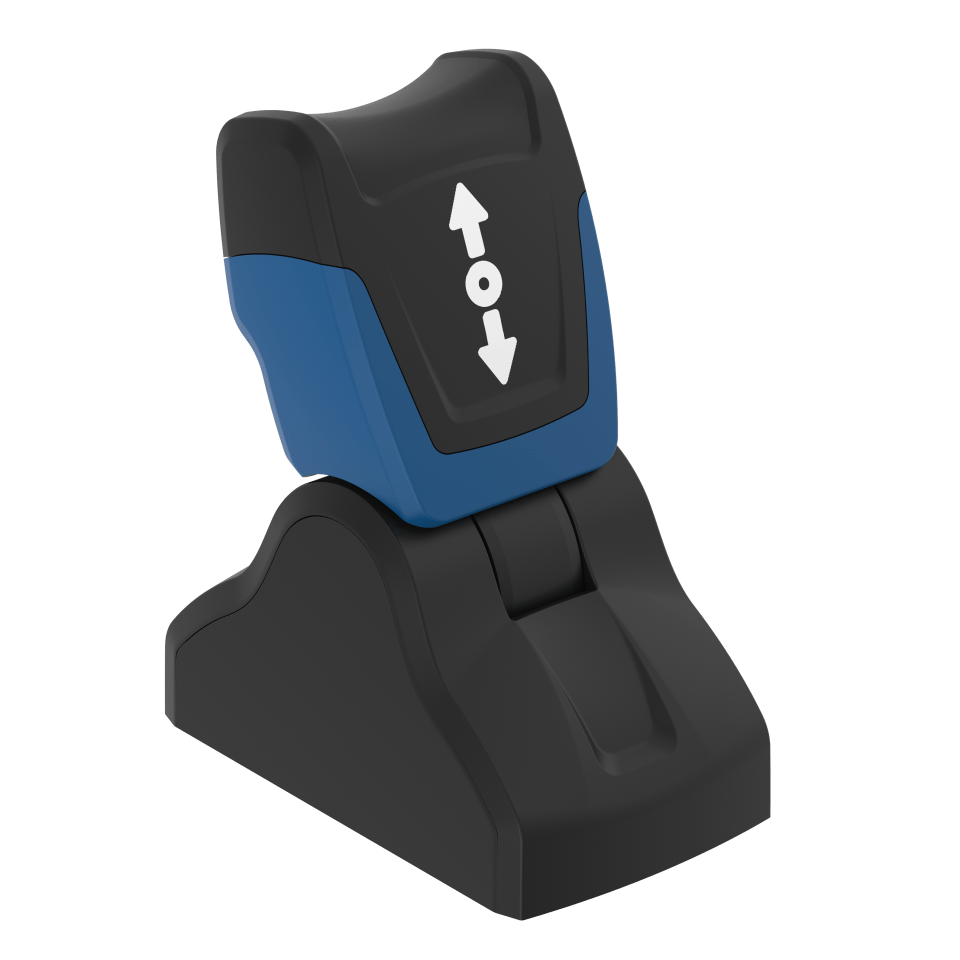

Joystick JFT – controle na ponta dos dedos

Disponível no elostore

Joystick JFT – controle na ponta dos dedos

Disponível no elostore
  • Simples e fácil montagem por cima do painel
  • Pode ser montado lado a lado proporcionando redução de espaço de montagem no painel
  • Alavanca possui uma cobertura emborrachada proporcionando maior conforto durante sua operação
  • Design ergonômico
  • Maior controle do equipamento devido à uma infinidade de cores e simbologias à disposição de nossos clientes
  • Alta confiabilidade e elevada vida útil devido à tecnologia de sensores de efeito Hall
  • Duas variantes disponíveis:
    • Padrão: Comprovado há muito tempo, para uso dentro da cabine.
    • Otimizado para poeira: Para aplicações um pouco mais ásperas com uma sensação ligeiramente diferente.

Com a tecnologia de sensores de efeito Hall, o joystick JFT é ideal para aplicação em painéis de controle de caminhões fora de estrada, veículos municipais, bem como em máquinas agrícolas e construção civil, graças ao seu design compacto e robusto.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/2
JFT..2016
Tela cheia
1/2
2/2
JFT_electrical_drawing
Tela cheia
2/2

Article characteristics

  • JFT...
  • Protection class, mechanical
AttributeJFT...
Bestellung
Protection class, mechanical IP54 DIN EN 60529
  • Electrical data
  • JFT...
  • Electrical data
  • Polarity reversal protection
  • Output signal min.
  • Output signal max.
  • Output signal
  • Output signal - centre position/zero position
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Short-circuit resistance to GND
  • Short-circuit resistance to supply
  • Technology
AttributeJFT...
Bestellung
Polarity reversal protection yes
Output signal min. 0.5 V DC
Output signal max. 4.5 V DC
Output signal analogue
Output signal - centre position/zero position 2.5 V DC
EMC immunity (Norm) DIN EN 12895, DIN EN 13309, DIN EN ISO 14982, ISO 13766
EMC emission (Norm) DIN EN 12895, DIN EN 13309, DIN EN ISO 14982, ISO 13766
Operating voltage min. 4.5 V DC
Operating voltage max. 5.5 V DC
Current consumption max. 15 mA
Load resistance min. 20000 Ohm
Short-circuit resistance to GND yes
Short-circuit resistance to supply yes
Technology Hall
  • Mechanical data
  • JFT...
  • Mechanical data
  • Max. lever load with specified lever length
  • Deflection
  • Actuation type
  • Service life, mechanical (Cycles)
AttributeJFT...
Bestellung
Max. lever load with specified lever length 35 mm/200 N
Deflection ± 30 °
Actuation type single axis
Service life, mechanical (Cycles) hard detent 4 mio. / without detent 5 mio.
  • Environmental conditions
  • JFT...
  • Environmental conditions
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeJFT...
Bestellung
Protection class, electronic IP69K DIN EN 60529
Operating temperature min. -40 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 105 °C
  • Installation
  • JFT...
  • Installation
  • Installation
  • Mounting type
AttributeJFT...
Bestellung
Installation from above
Mounting type screwed from below
  • Connection
  • JFT...
  • Connection
  • Connector type
  • Cable type
  • Cable length
AttributeJFT...
Bestellung
Connector type Mini-Fit Jr.
Cable type Lify-t
Cable length 0.3 m
