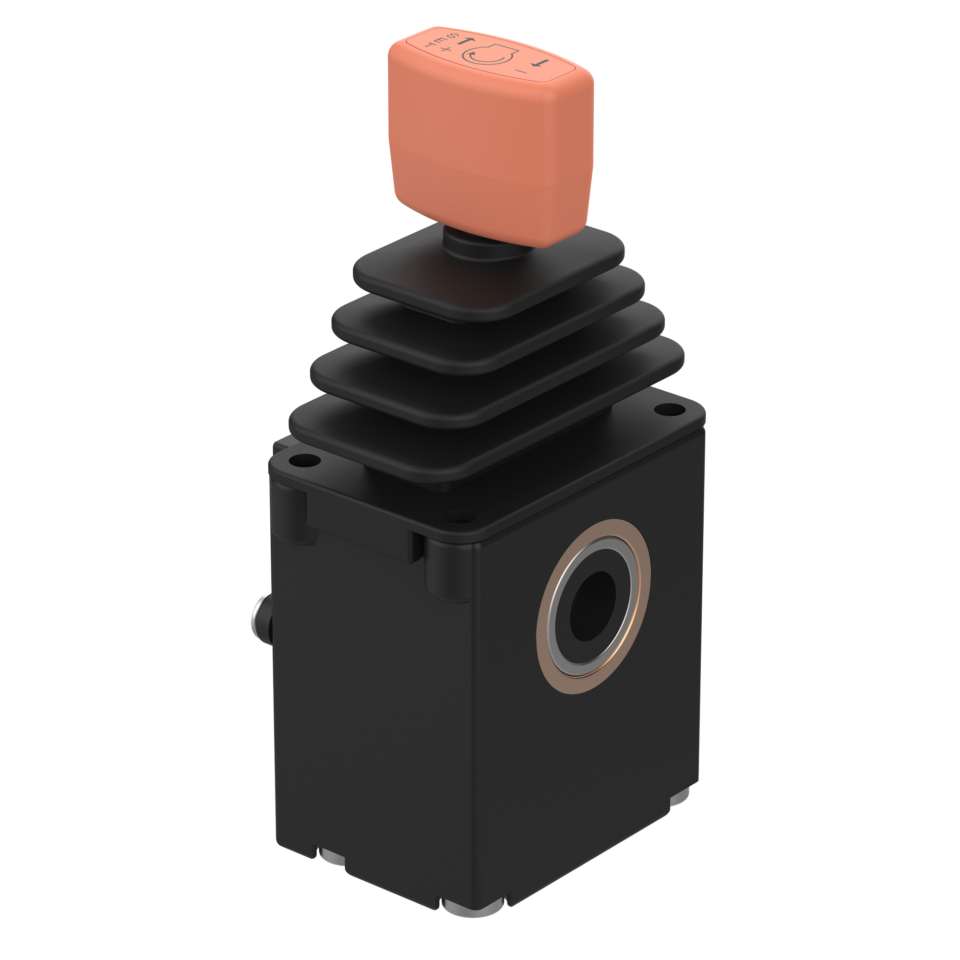

Joystick J3 – controle na ponta dos dedos

Joystick J3 – controle na ponta dos dedos

  • 4 tipos de atuação: sem detente / com detente, com trava por fricção ou travamento da posição central
  • Alta confiabilidade e vida útil devido à tecnologia de sensores de efeito Hall
  • Disponível com diferentes sinais de saída: analógico, redundante, CAN bus  (CANopen/SAEJ1939) ou sinais de saída digitais
  • Alavanca de atuação disponível com com até um botão de acionamento com sinal de saída digital
  • Classe de proteção IP67
  • Ângulo de atuação ±20° ou ±25°

Disponível também para rede CAN bus

Com a tecnologia de sensores de efeito Hall, o joystick J3 é ideal para aplicação em painéis de controle de caminhões fora de estrada, veículos municipais, bem como em máquinas agrícolas e construção civil, graças ao seu design compacto e robusto.

Desenho técnico

1/4
J3
Tela cheia
1/4
2/4
J3_mounting
Tela cheia
2/4
3/4
J3_electrical_drawing
Tela cheia
3/4
4/4
J3_options
Tela cheia
4/4

Article characteristics

  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Polarity reversal protection
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Output signal
  • Output signal - centre position/zero position
  • Output signal - centre position/zero position
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance at 10V max.
  • Load resistance al 30V max.
  • Short-circuit resistance to GND
  • Short-circuit resistance to supply
  • Outputs (quantity, type)
  • Technology
  • Protocol
  • Node ID / Source Address
  • Transmitting cycle
  • Baud rate
  • Bus terminating resistor
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching current 0.3 A
Max. switching power 10 W
Max. switching power 10 VA
Contact form NO
Polarity reversal protection yes
Output signal min. 0.5 V DC
Output signal max. 4.5 V DC
Output signal min. 4 mA
Output signal max. 20 mA
Output signal analogue
Output signal - centre position/zero position 2.5 V DC
Output signal - centre position/zero position 12 mA
EMC immunity (Norm) DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC emission (Norm) DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Operating voltage min. 10 V DC 4.5 V DC 10 V DC 9 V DC
Operating voltage max. 30 V DC 5.5 V DC 30 V DC 36 V DC
Current consumption at 12 V max. 18 mA max. 15 mA at 12 V max. 15 mA < 120 mA
Load resistance min. 20000 Ohm
Load resistance at 10V max. 250 Ohm
Load resistance al 30V max. 1250 Ohm
Short-circuit resistance to GND no yes no yes no
Short-circuit resistance to supply no yes no yes no
Outputs (quantity, type) 1 3
Technology Hall Reed
Protocol J1939 CANopen
Node ID / Source Address 0x70 0x11
Transmitting cycle 100 ms
Baud rate 250 kBit/s
Bus terminating resistor no
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Max. lever load with specified lever length
  • Deflection
  • Actuation type
  • Service life, mechanical (Cycles)
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Max. lever load with specified lever length X- and Y-Axis 50mm/150 N
Deflection ± 20 °
Actuation type single axis
Service life, mechanical (Cycles) 2000000
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Housing material PBT
Shaft material PBT
Gaiter material CR 45
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Installation
  • Mounting type
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Installation from below
Mounting type screwed from above
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Connector type
  • Cable length
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Connector type Mini-Fit Jr.
Cable length 0.3 m
