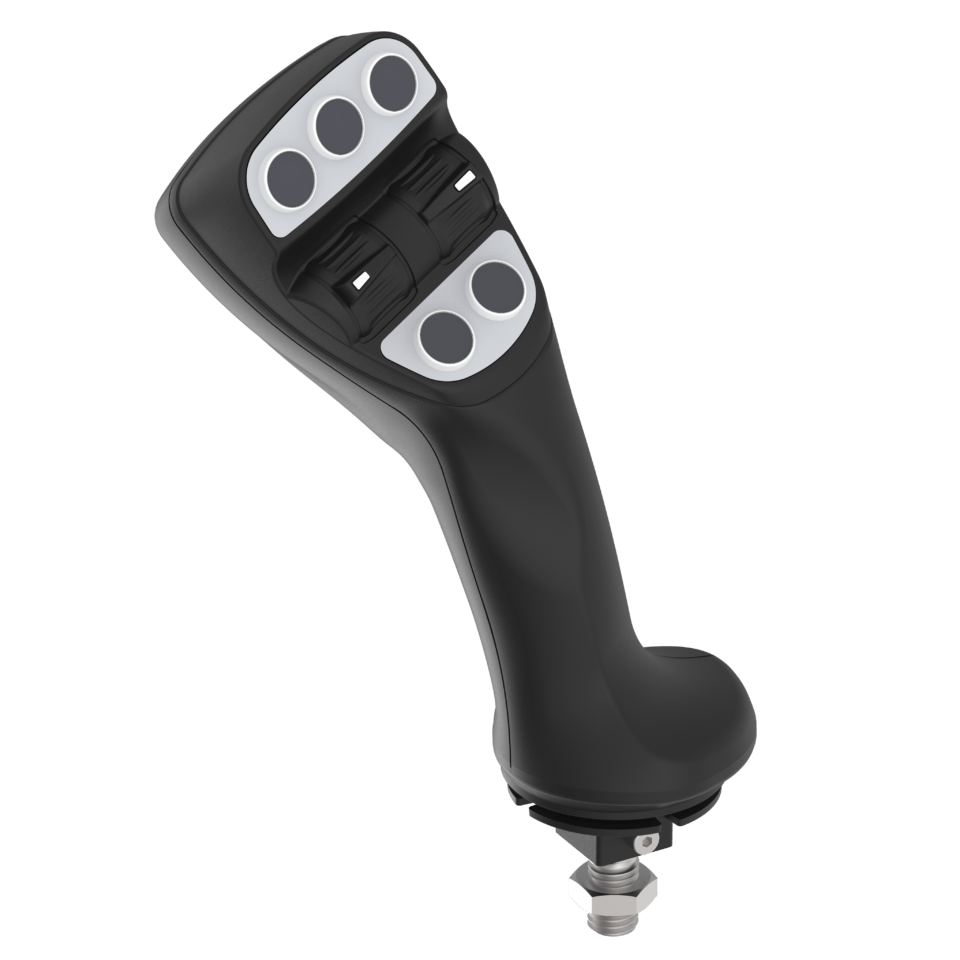

Joystick – Alavanca de comando multifuncional 361G/362G

Joystick – Alavanca de comando multifuncional 361G/362G

  • Levando em consideração uma perfeita ergonomia para o operador, a alavanca de comando multifuncional 361G foi desenvolvida para destros e a 362G foi desenvolvida para canhotos
  • Totalmente iluminada, com opção de iluminação de funcionamento e iluminação para operação noturna
  • Módulo CAN integrado à alavanca permite uma fácil conexão e integração com o sistema operacional e controle da máquina (CANopen/SAE J1939)

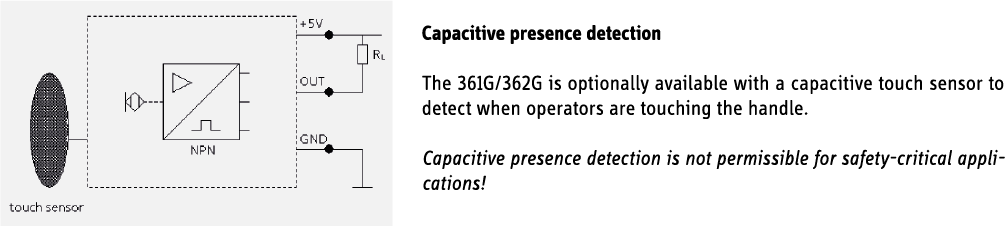

  • Sensor de presença capacitivo é um opcional desta alavanca, oferecendo uma segurança adicional durante seu manuseio
  • Alavanca disponível com botões digitais selados que permitem o uso deste produto fora da cabine do veículo, exposto à intempéries.
  • Cores e símbolos disponíveis como itens opcionais

Atuação de forma ergonômica desenvolvida especialmente para operadores destros ou canhotos.

O design modular desse joystick ergonômico o torna mais flexível e capaz de se adaptar às mais variadas aplicações. Oferece uma excelente relação de custo-benefício, mesmo na compra de pequenas quantidades.

Desenho técnico

1/2
Multifunktionsgriff 361G mit M12 Adapter
Tela cheia
1/2
2/2
361G_362G_adapter
Tela cheia
2/2

Article characteristics

  • Environmental conditions
  • 36.G...
  • Environmental conditions
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Shock resistance (Norm)
Attribute36.G...
Bestellung
Operating temperature min. -25 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
Shock resistance (Norm) EN 60068-2-27
  • Connection
  • 36.G...
  • Connection
  • Cable length
Attribute36.G...
Bestellung
Cable length 0.5 m
1/1
361G_362G_capacitive-presence-detection
Tela cheia
1/1
