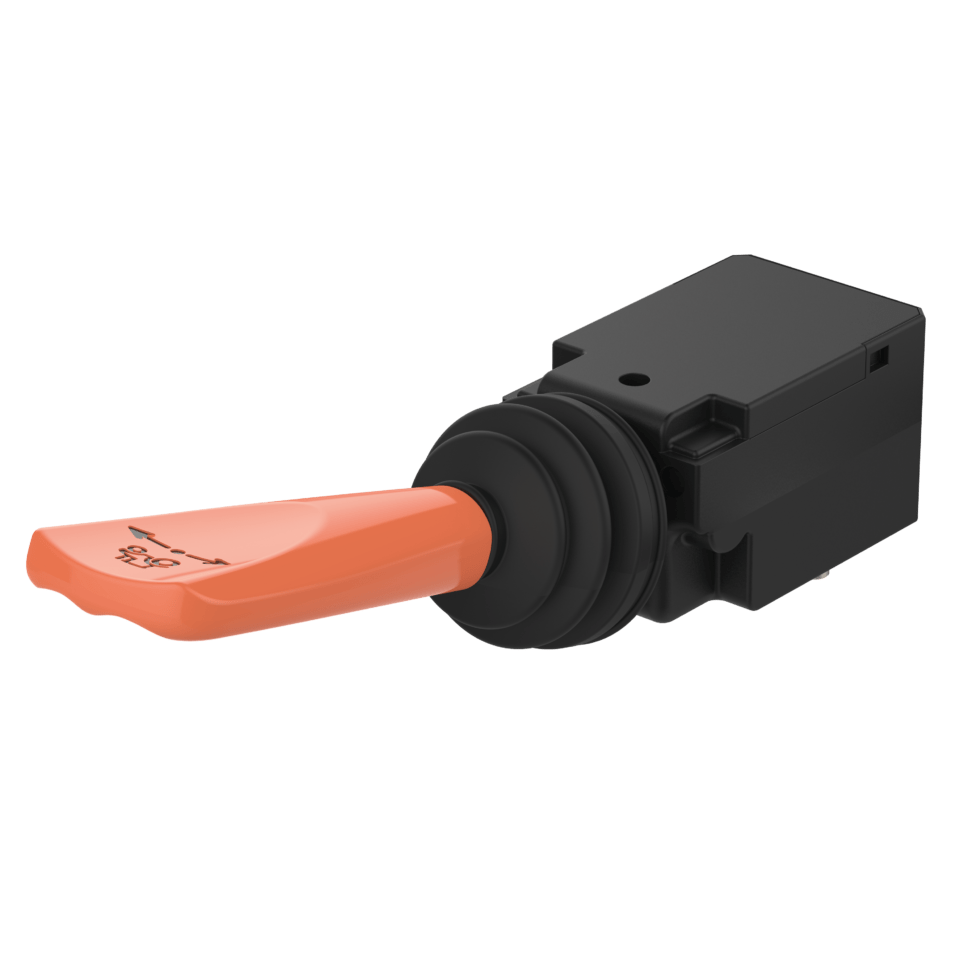

Chave seletora de direção 151SL

Chave seletora de direção 151SL

  • Alta durabilidade devido à tecnologia de sensores magnéticos sem contato mecânico
  • Design robusto e compacto
  • Simbologia pode ser customizada
  • Alavanca rotativa e botões de acionamento podem ser configurados como opicionaiss
  • Temperatura de trabalho de -40 °C até +85 °C
  • Classe de proteção IP67
  • Elevada vida útil, aprovada para 4 milhões de ciclos de operação
  • Disponível com até 9 sinais de comutação

A chave seletora modelo 151SL…foi desenvolvida para controle de direção (frete/ré) em equipamentos móbil. A chave 151SL… pode ser configurada com até 9 funções e suporta esforços de atuação elevados devido à seu design robusto. A chave seletora de direção 151SL… é ideal para aplicação em máquinas agrícolas, construção cível e movimentação de cargas. A chave seletora elobau modelo 151SL… é robusta e confiável, mesmo em condições de trabalho severas.

Desenho técnico

1/1
151SL
Tela cheia
1/1

Article characteristics

  • Attribute
  • 151SLX11S5A02
  • 151SLY33S1A04
  • 151SLX11S5A04
  • Attribute
  • Max. switching voltage
  • Contact form
  • Polarity reversal protection
Attribute151SLX11S5A02151SLY33S1A04151SLX11S5A04
Bestellung
Bestellung
Max. switching voltage 24 V DC
Contact form NO
Polarity reversal protection no
  • Attribute
  • 151SLX11S5A02
  • 151SLY33S1A04
  • 151SLX11S5A04
  • Attribute
  • Max. lever load with specified lever length
  • Deflection
Attribute151SLX11S5A02151SLY33S1A04151SLX11S5A04
Bestellung
Bestellung
Max. lever load with specified lever length 100 mm / 550 N
Deflection ± 15 °
  • Attribute
  • 151SLX11S5A02
  • 151SLY33S1A04
  • 151SLX11S5A04
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
Attribute151SLX11S5A02151SLY33S1A04151SLX11S5A04
Bestellung
Bestellung
Housing material PBT GF45
Shaft material Z430
Gaiter material NBR
  • Attribute
  • 151SLX11S5A02
  • 151SLY33S1A04
  • 151SLX11S5A04
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
Attribute151SLX11S5A02151SLY33S1A04151SLX11S5A04
Bestellung
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
  • Attribute
  • 151SLX11S5A02
  • 151SLY33S1A04
  • 151SLX11S5A04
  • Attribute
  • Connector type
  • Cable type
  • Cable length
Attribute151SLX11S5A02151SLY33S1A04151SLX11S5A04
Bestellung
Bestellung
Connector type Molex MiniFit
Cable type FLRY
Cable length 0.78 m
