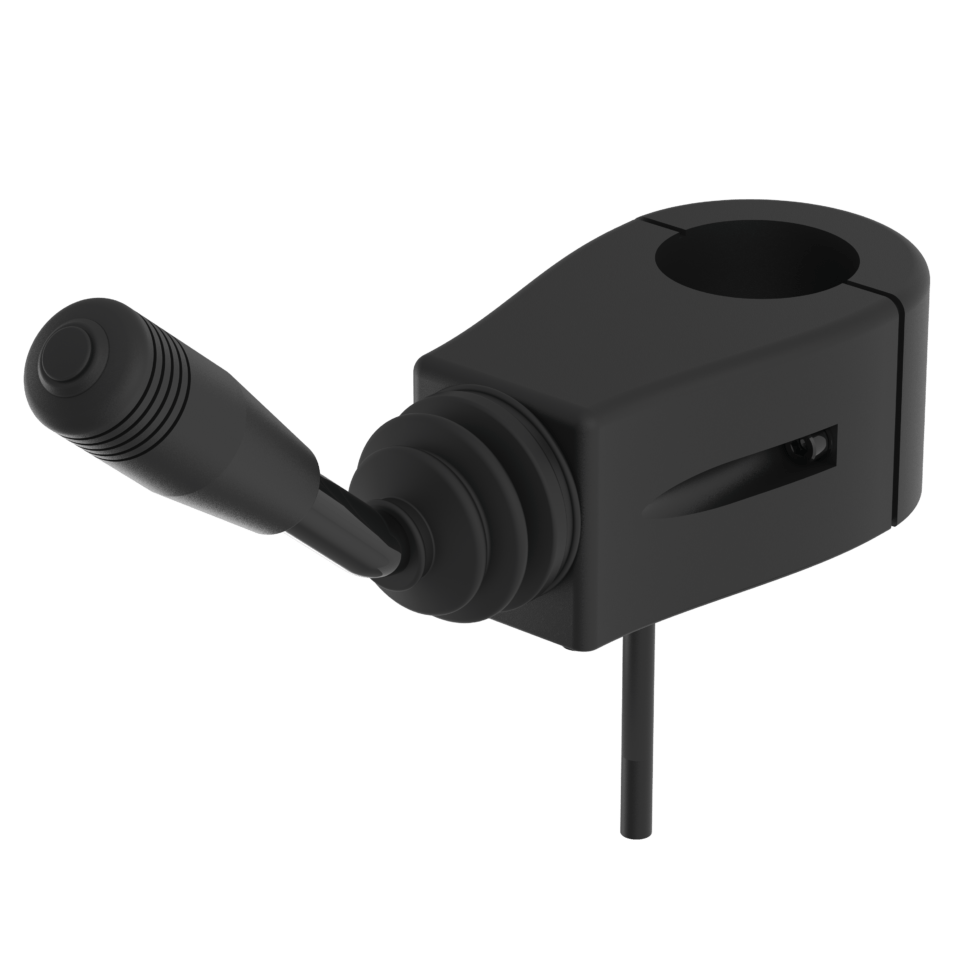

Chave de coluna de direção 351RHS

Chave de coluna de direção 351RHS

  • Alta durabilidade devido à tecnologia de sensores sem contato mecânico (reed switch)
  • Classe de proteção IP67
  • Design robusto e compacto
  • Detente disponível em 3 posições para controle de direção
  • Sinais de comutação podem ser sobrepostos para detecção opcional de interrupção de  sinal
  • Sistema de fixação integrado nas medidas de 38 mm ou 45mm
  • Trava mecânica na posição central
  • Pode ser fornecido opcionalmente com ou sem botão de acionamento

Com ou sem detente de atuação

A chave de coluna de direção 351RHS possui sistema de fixação integrado, ideal para montagem diretamente em colunas de direção. Disponível opcionalmente com mini botões que podem ser usados ​​para acionamento de buzina e outras funções. A chave de coluna de direção 351RHS é aplicada máquinas agrícolas, construção civil e movimentação de cargas. A chave de coluna de direção da elobau modelo 351RHS é robusta e confiável, mesmo em condições de trabalho severas.

Desenho técnico

1/2
35RHS-2016
Tela cheia
1/2
2/2
351RHS_electrical_drawing
Tela cheia
2/2

Article characteristics

  • Attribute
  • 351RHS...
  • 351RHS3...
  • 351RHS3...T
  • 351RHS4...
  • 351RHS4...T
  • Attribute
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Polarity reversal protection
  • maximum switching voltage mini push button switches
  • maximum switching current mini push button switches
  • maximum switching power mini push button switches
  • maximum switching power mini push button switches
  • contact form mini push button switches
Attribute351RHS...351RHS3...351RHS3...T351RHS4...351RHS4...T
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching current 0.5 A
Max. switching power 10 W
Max. switching power 10 VA
Contact form NO
Polarity reversal protection no
maximum switching voltage mini push button switches 48 V DC 48 V DC 48 V DC
maximum switching current mini push button switches 0.5 A 0.5 A 0.5 A
maximum switching power mini push button switches 10 W 10 W 10 W
maximum switching power mini push button switches 10 VA 10 VA 10 VA
contact form mini push button switches NO NO NO
  • Attribute
  • 351RHS...
  • 351RHS3...
  • 351RHS3...T
  • 351RHS4...
  • 351RHS4...T
  • Attribute
  • Deflection
  • Steering column diameter
  • button stroke
Attribute351RHS...351RHS3...351RHS3...T351RHS4...351RHS4...T
Bestellung
Bestellung
Deflection ± 15 °
Steering column diameter 38 mm 45 mm
button stroke 2 mm 2 mm 2 mm
  • Attribute
  • 351RHS...
  • 351RHS3...
  • 351RHS3...T
  • 351RHS4...
  • 351RHS4...T
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
Attribute351RHS...351RHS3...351RHS3...T351RHS4...351RHS4...T
Bestellung
Bestellung
Housing material PA12 GF30
Shaft material Steel
Gaiter material NBR
  • Attribute
  • 351RHS...
  • 351RHS3...
  • 351RHS3...T
  • 351RHS4...
  • 351RHS4...T
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
Attribute351RHS...351RHS3...351RHS3...T351RHS4...351RHS4...T
Bestellung
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 75 °C
Min. storage temperature -30 °C
Max. storage temperature 75 °C
  • Attribute
  • 351RHS...
  • 351RHS3...
  • 351RHS3...T
  • 351RHS4...
  • 351RHS4...T
  • Attribute
  • Cable type
  • Cable length
Attribute351RHS...351RHS3...351RHS3...T351RHS4...351RHS4...T
Bestellung
Bestellung
Cable type FLRY
Cable length 0.5 m
1/1
351RHS_ordering_key
Tela cheia
1/1
