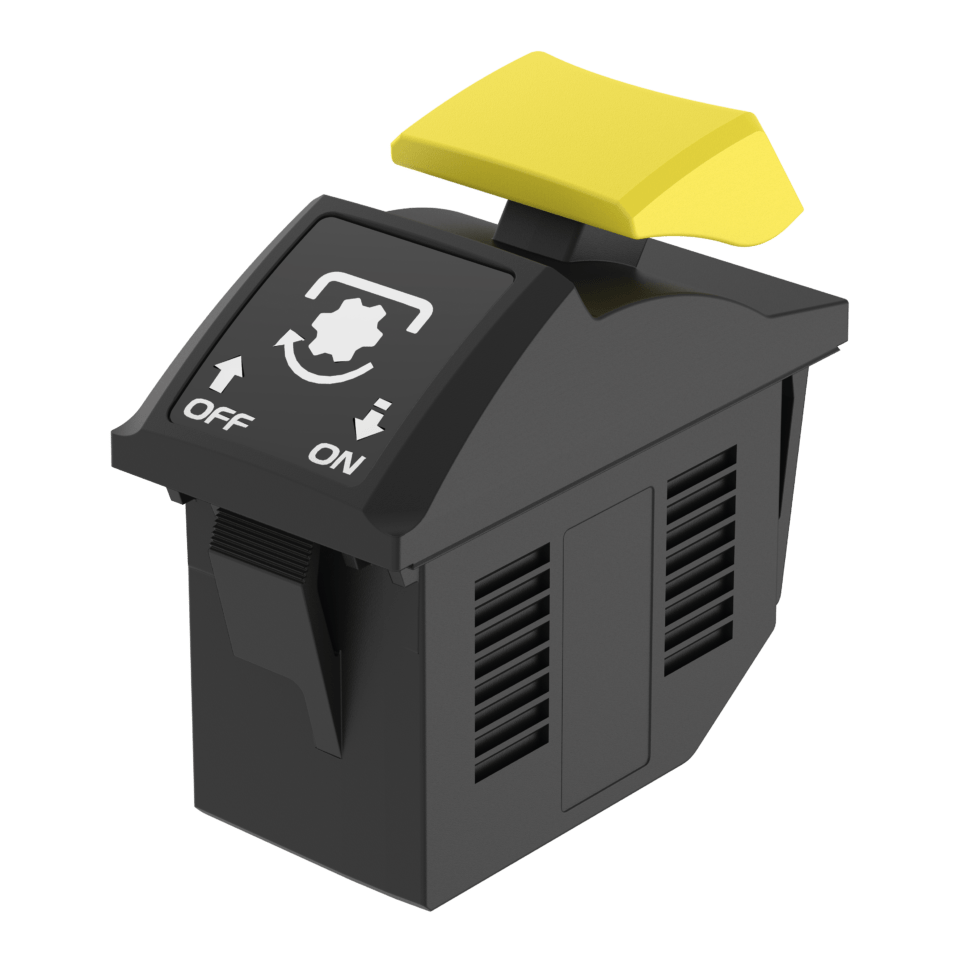

Botão para acionamento de tomada de força 151PTO

Botão para acionamento de tomada de força 151PTO

  • Disponível nas opções de iluminação noturna e de funcionamento
  • Alta durabilidade devido à tecnologia de sensores magnéticos
  • Dimensões de montagem padrão 44 x 22 x 1.5 mm
  • Circuitos elétricos opcionais
  • Simbologias opcionais
  • Simples instalação
  • Desenvolvido para aplicações severas
  • Classe de proteção IP67
  • Travamento por detente opcional

Operação intuitiva, disponível com iluminação

O botão de controle da tomada de força modelo 151PTO, integrado com a função de parada de emergência, possui um design robusto e sua forma de atuação é simples e intuitiva para o operador. O botão de controle da tomada de força é muito utilizado em máquinas agrícolas. Este botão possui dois níveis de atuação que garante que o operador não realize seu acionamento de forma involuntária.

Desenho técnico

1/2
151PTO
Tela cheia
1/2
2/2
151PTO_electrical_drawing
Tela cheia
2/2

Article characteristics

  • Attribute
  • 151PTO16
  • 151PTO80
  • 151PTO81
  • 151PTO79
  • Attribute
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Series resistor
Attribute151PTO16151PTO80151PTO81151PTO79
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching current 0.3 A
Max. switching power 5 W
Max. switching power 5 VA
Contact form NO
Series resistor 3.9 Ohm
  • Attribute
  • 151PTO16
  • 151PTO80
  • 151PTO81
  • 151PTO79
  • Attribute
  • Service life, mechanical (Cycles)
Attribute151PTO16151PTO80151PTO81151PTO79
Bestellung
Bestellung
Service life, mechanical (Cycles) 300000
  • Attribute
  • 151PTO16
  • 151PTO80
  • 151PTO81
  • 151PTO79
  • Attribute
  • Housing material
  • Actuator/handle material
  • Gaiter material
Attribute151PTO16151PTO80151PTO81151PTO79
Bestellung
Bestellung
Housing material PA66 GF25
Actuator/handle material PA12 GD30
Gaiter material EPDM
  • Attribute
  • 151PTO16
  • 151PTO80
  • 151PTO81
  • 151PTO79
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
Attribute151PTO16151PTO80151PTO81151PTO79
Bestellung
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -40 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
  • Attribute
  • 151PTO16
  • 151PTO80
  • 151PTO81
  • 151PTO79
  • Attribute
  • Installation
  • Mounting type
Attribute151PTO16151PTO80151PTO81151PTO79
Bestellung
Bestellung
Installation from above
Mounting type inserted/latched
  • Attribute
  • 151PTO16
  • 151PTO80
  • 151PTO81
  • 151PTO79
  • Attribute
  • Connector type
  • Cable type
  • Cable length
Attribute151PTO16151PTO80151PTO81151PTO79
Bestellung
Bestellung
Connector type Molex Mini-Fit 39-01-2080 8Pin Molex Mini-Fit 39-01-2080 8Polig
Cable type FLRY A FLRY A
Cable length 0.3 m
