Botão para acionamento de tomada de força 145PTO

Disponível no elostore

Botão para acionamento de tomada de força 145PTO

Disponível no elostore
  • Utiliza tecnologia de sensores sem contato (reed switch)
  • Temperatura de trabalho -40°C to +85°C de acordo com a norma DIN IEC 68
  • Simples instalação
  • Classe de proteção IP67, ideal para aplicações severas

Com cabo

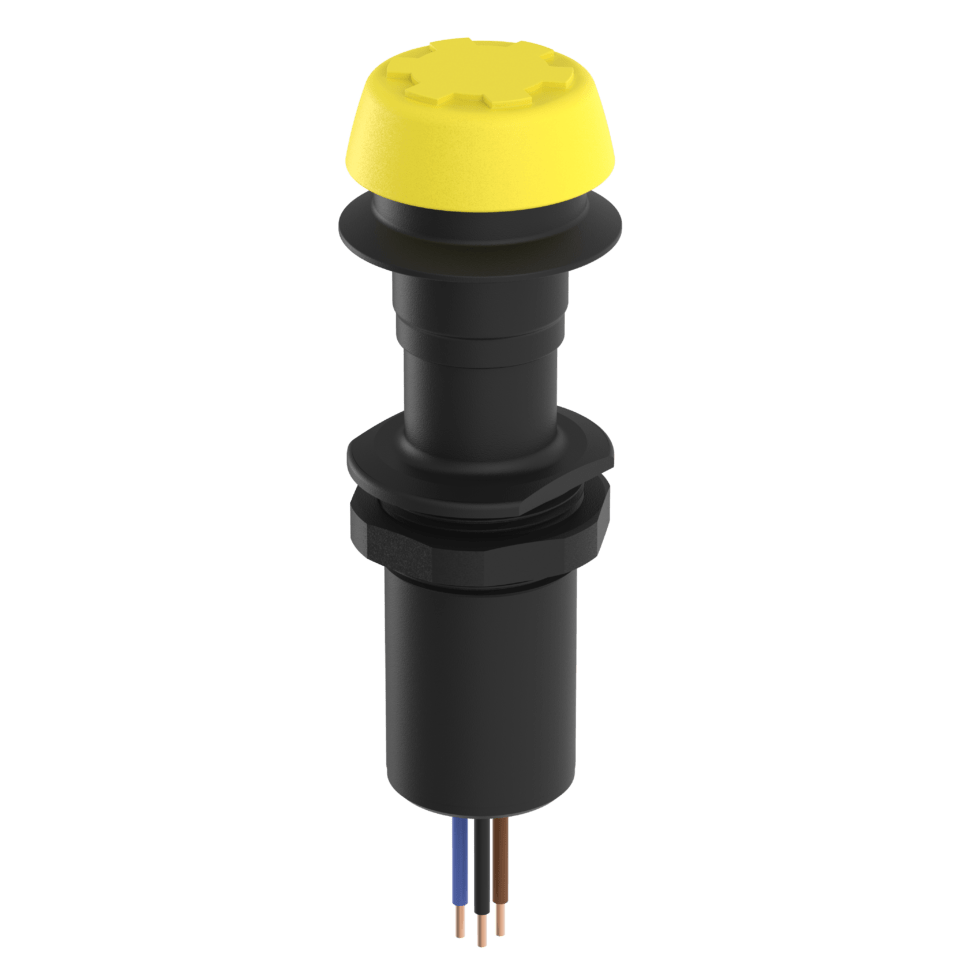

O botão de acionamento de tomada de força modelo 145PTO, integrado com função de parada de emergência, é aplicado principalmente em máquinas agrícolas (mas pode ser aplicado também na construção civil e movimentação de carga) para ligar e desligar a máquina com maior segurança.

Este produto também está disponível em nossa elo.store.

Desenho técnico

1/1
145PTO
Tela cheia
1/1

Características do artigo

  • 145PTO10A00
  • 145PTO10B00
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Series resistor
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Installation
  • Mounting type
  • Thread
  • Connector type
  • Cable type
  • Cable length
Attribute145PTO10A00145PTO10B00
Bestellung
Bestellung
Max. switching voltage 36 V DC
Max. switching current 0.5 A
Max. switching power 10 W
Max. switching power 10 VA
Contact form NO
Series resistor 3.9 Ohm
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -40 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
Installation from above
Mounting type screwed
Thread M30
Connector type AMP Superseal 1.5 282105-1 3Pin
Cable type BOY11Y PUR
Cable length 1 m
