Joystick compacto J2

Joystick compacto J2

Oferece até 5 botões de acionamento. Flexibilidade de instalação – pode ser montado por baixo ou por cima do painel

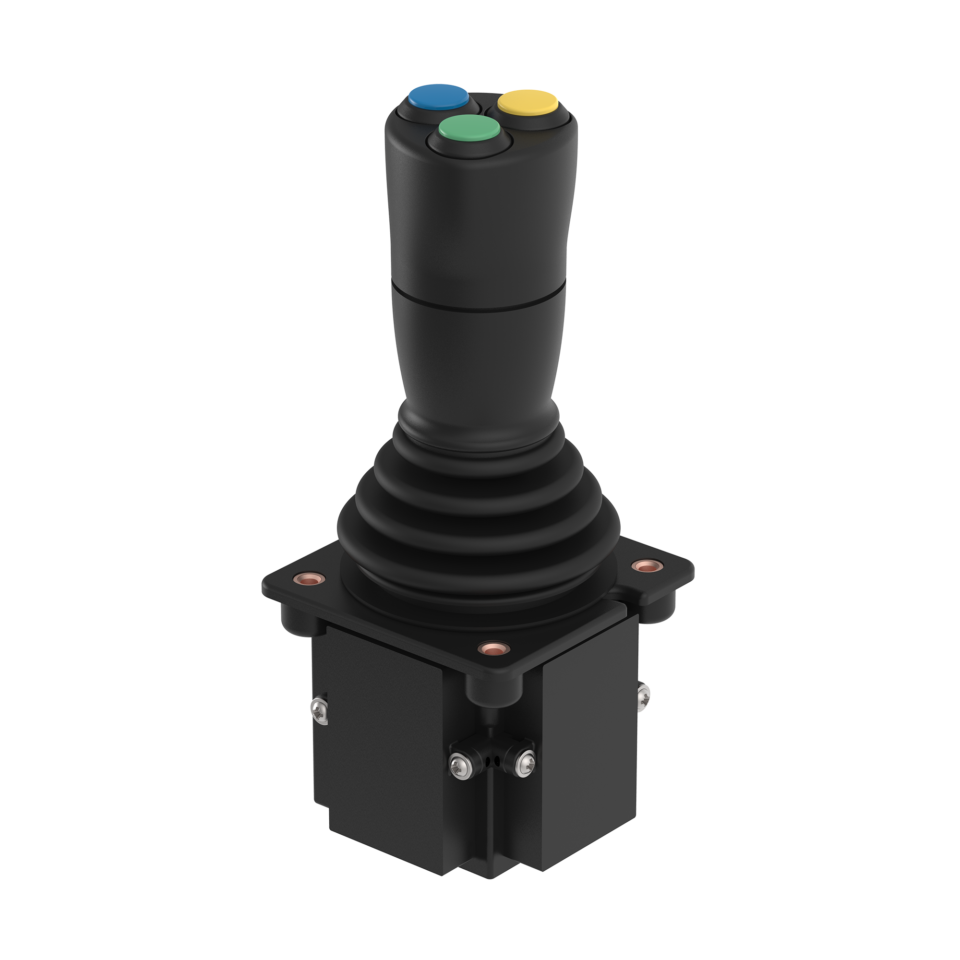

O joystick compacto J2 é utilizado em tratores agrícolas para controle do implemento frontal/traseiro ou em caminhões fora-de-estrada. Os botões de acionamento são configuráveis de acordo com sua necessidade.

  • Design que reduz espaço de montagem
  • Alta confiabilidade e longa vida útil graças à tecnologia de sensores de efeito Hall
  • Sinal de saída analógico (corrente/tensão), podem ser redundante para aplicações que exijam maior segurança
  • Comunicação em rede CAN-bus (CANopen / SAE J1939)
  • Classe de proteção IP67 (eletrônica)
  • Ângulo de atuação da alavanca de ±20°
  • Disponível vários tipos de acionamento como, por exemplo, retorno ao centro por atuação de molas, com detentes nos finais de curso ou travamento na posição central

Agora disponível com a nova alavanca multifuncional 321G

O joystick J2 oferece uma ampla gama de funcionalidades com espaço reduzido de montagem. A nova alavanca multifuncional 321G está disponível com até 6 botões com sinal de saída digital ou até 4 botões digitais e um botão giratório com sinal de saída analógico. A alavanca 321G oferece uma excelente relação custo-benefício, proporcionando precisão de atuação e redução de espaço de montagem.

Desenho técnico

1/5: New optional handle 321G
J2_options_2
Tela cheia
1/5: New optional handle 321G
2/5
J2
Tela cheia
2/5
3/5
J2_Einbauoeffnung_10_2021
Tela cheia
3/5
4/5
J2_electrical_drawing
Tela cheia
4/5
5/5
J2_options_1
Tela cheia
5/5

Article characteristics

  • Attribute
  • J2A6...
  • J2A7...
  • J2CJ
  • J2CO...
  • J2D8...
  • Attribute
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Polarity reversal protection
  • Output signal min.
  • Output signal max.
  • Output signal
  • Output signal - centre position/zero position
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Short-circuit resistance to GND
  • Short-circuit resistance to supply
  • Technology
  • Protocol
  • Node ID / Source Address
  • Transmitting cycle
  • Baud rate
  • Bus terminating resistor
AttributeJ2A6...J2A7...J2CJJ2CO...J2D8...
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching current 0.3 A
Max. switching power 10 W
Max. switching power 10 VA
Contact form NO
Polarity reversal protection yes
Output signal min. 0.5 V DC
Output signal max. 4.5 V DC
Output signal analogue
Output signal - centre position/zero position 2.5 V DC
EMC immunity (Norm) DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC emission (Norm) DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Operating voltage min. 4.5 V DC 10 V DC 9 V DC
Operating voltage max. 5.5 V DC 30 V DC 36 V DC
Current consumption max. 15 mA at 12 V max. 15 mA < 120 mA
Load resistance min. 20000 Ohm
Short-circuit resistance to GND yes no yes no
Short-circuit resistance to supply yes no yes no
Technology Hall Reed
Protocol J1939 CANopen
Node ID / Source Address 0x70 0x11
Transmitting cycle 100 ms
Baud rate 250 kBit/s
Bus terminating resistor no
  • Attribute
  • J2A6...
  • J2A7...
  • J2CJ
  • J2CO...
  • J2D8...
  • Attribute
  • Max. lever load with specified lever length
  • Deflection
  • Actuation type
  • Service life, mechanical (Cycles)
AttributeJ2A6...J2A7...J2CJJ2CO...J2D8...
Bestellung
Bestellung
Max. lever load with specified lever length 70 mm/250 N
Deflection ± 20 °
Actuation type multi axis
Service life, mechanical (Cycles) 1000000
  • Attribute
  • J2A6...
  • J2A7...
  • J2CJ
  • J2CO...
  • J2D8...
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
AttributeJ2A6...J2A7...J2CJJ2CO...J2D8...
Bestellung
Bestellung
Housing material PBT
Shaft material 1.4305
Gaiter material NBR 438.40
  • Attribute
  • J2A6...
  • J2A7...
  • J2CJ
  • J2CO...
  • J2D8...
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeJ2A6...J2A7...J2CJJ2CO...J2D8...
Bestellung
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
  • Attribute
  • J2A6...
  • J2A7...
  • J2CJ
  • J2CO...
  • J2D8...
  • Attribute
  • Installation
  • Mounting type
AttributeJ2A6...J2A7...J2CJJ2CO...J2D8...
Bestellung
Bestellung
Installation from below
Mounting type screwed from above
  • Attribute
  • J2A6...
  • J2A7...
  • J2CJ
  • J2CO...
  • J2D8...
  • Attribute
  • Connector type
  • Cable length
AttributeJ2A6...J2A7...J2CJJ2CO...J2D8...
Bestellung
Bestellung
Connector type Mini-Fit Jr.
Cable length 0.3 m
1/1
J2_ordering_key
Tela cheia
1/1
