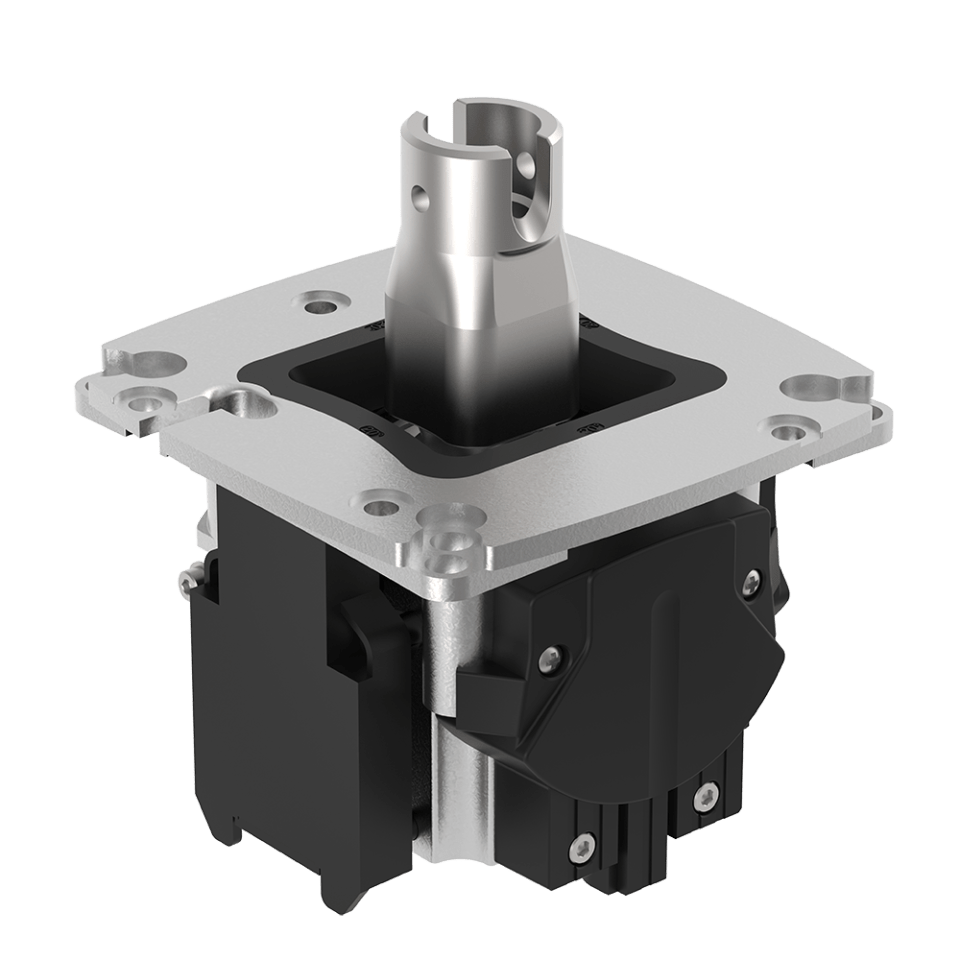

Base de joystick J4

Base de joystick J4

  • Instalação por cima do painel
  • Design compacto
  • Alta confiabilidade e vida útil devido à tecnologia de sensores de efeito Hall e Reed
  • Disponível com diferentes sinais de saída: analógico, redundante, CAN bus  (CANopen/SAEJ1939) ou sinais de saída digitais
  • Classe de proteção IP67, o que permite trabalhar com este joystick também em condições ambientais severas
  • Alavanca com ângulo de atuação de ±20°
  • Diversas opções de atuação: sem-detente, com detente nos finais de curso, com trava por fricção ou travamento da posição central, qualquer função pode ser operada de forma otimizada
  • Desenvolvido para suportar elevadas forças de atuação (eixo x-/y: 2000 N, eixo z: 700 N com comprimento de alavanca de 190mm cada)

Design robusto, montagem por cima do painel

O joystick J4 é ideal para aplicações bastante exigentes e com uso de alta frequência.. Esta base de joystick foi desenvolvida para aplicação em equipamentos móbil pesados como operar caçambas de pá-carregadeiras.

Desenho técnico

1/3
J4_Joystick_Technik
Tela cheia
1/3
2/3
J4_electrical_drawing
Tela cheia
2/3
3/3
J4_options
Tela cheia
3/3

Article characteristics

  • Attribute
  • J4A1...
  • J4A6...
  • J4A7...
  • J4C6...CANopen
  • J4C6...SAE_J1939
  • J4D8...
  • Attribute
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Polarity reversal protection
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Output signal
  • Output signal - centre position/zero position
  • Output signal - centre position/zero position
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance at 10V max.
  • Load resistance al 30V max.
  • Short-circuit resistance to GND
  • Short-circuit resistance to supply
  • Outputs (quantity, type)
  • Technology
  • Protocol
  • Transmitting cycle
  • Baud rate
  • Bus terminating resistor
AttributeJ4A1...J4A6...J4A7...J4C6...CANopenJ4C6...SAE_J1939J4D8...
Bestellung
Max. switching voltage 48 V DC
Max. switching current 0.3 A
Max. switching power 10 W
Max. switching power 10 VA
Contact form NO
Polarity reversal protection yes
Output signal min. 0.5 V DC
Output signal max. 4.5 V DC
Output signal min. 4 mA
Output signal max. 20 mA
Output signal analogue digital
Output signal - centre position/zero position 2.5 V DC
Output signal - centre position/zero position 12 mA
EMC immunity (Norm) DIN EN 13309, DIN EN ISO 14982
EMC emission (Norm) DIN EN 13309, DIN EN ISO 14982
Operating voltage min. 10 V DC 4.5 V DC 10 V DC 9 V DC
Operating voltage max. 30 V DC 5.5 V DC 30 V DC 36 V DC 48 V DC
Current consumption max. 18 mA max. 15 mA < 120 mA
Load resistance min. 20000 Ohm
Load resistance at 10V max. 250 Ohm
Load resistance al 30V max. 1250 Ohm
Short-circuit resistance to GND no yes no
Short-circuit resistance to supply no yes no
Outputs (quantity, type) 6
Technology Hall Reed
Protocol CANopen J1939
Transmitting cycle 100 ms
Baud rate 250 kBit/s
Bus terminating resistor no
  • Attribute
  • J4A1...
  • J4A6...
  • J4A7...
  • J4C6...CANopen
  • J4C6...SAE_J1939
  • J4D8...
  • Attribute
  • Max. lever load with specified lever length
  • Deflection
  • Service life, mechanical (Cycles)
AttributeJ4A1...J4A6...J4A7...J4C6...CANopenJ4C6...SAE_J1939J4D8...
Bestellung
Max. lever load with specified lever length 190 mm / 2000 N
Deflection ± 20 °
Service life, mechanical (Cycles) 2000000
  • Attribute
  • J4A1...
  • J4A6...
  • J4A7...
  • J4C6...CANopen
  • J4C6...SAE_J1939
  • J4D8...
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
AttributeJ4A1...J4A6...J4A7...J4C6...CANopenJ4C6...SAE_J1939J4D8...
Bestellung
Housing material Zinc diecasting Z410
Shaft material Zinc diecasting Z410
Gaiter material EPDM
  • Attribute
  • J4A1...
  • J4A6...
  • J4A7...
  • J4C6...CANopen
  • J4C6...SAE_J1939
  • J4D8...
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeJ4A1...J4A6...J4A7...J4C6...CANopenJ4C6...SAE_J1939J4D8...
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
  • Attribute
  • J4A1...
  • J4A6...
  • J4A7...
  • J4C6...CANopen
  • J4C6...SAE_J1939
  • J4D8...
  • Attribute
  • Installation
  • Mounting type
AttributeJ4A1...J4A6...J4A7...J4C6...CANopenJ4C6...SAE_J1939J4D8...
Bestellung
Installation from above
Mounting type screwed from above
  • Attribute
  • J4A1...
  • J4A6...
  • J4A7...
  • J4C6...CANopen
  • J4C6...SAE_J1939
  • J4D8...
  • Attribute
  • Connector type
  • Cable type
  • Cable length
AttributeJ4A1...J4A6...J4A7...J4C6...CANopenJ4C6...SAE_J1939J4D8...
Bestellung
Connector type Mini-Fit Jr. Mini-Fit Jr.
Cable type FLRY
Cable length 0.3 m 0.3 m
