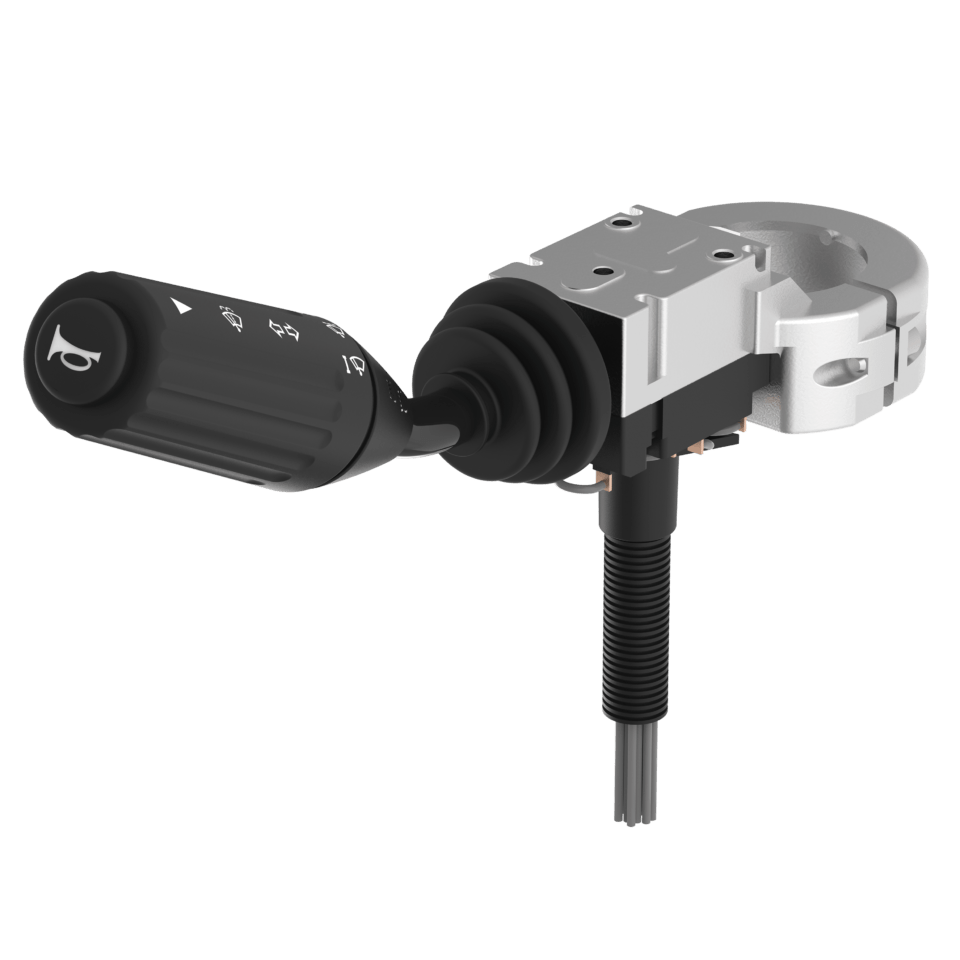

Steering column switch 151LSS…

Steering column switch 151LSS…

Technical specifications

  • Space-saving design
  • Rotatable handle for wiper function
  • IP6K7 protection class of the switching elements
  • Temperature range -30°C…+70°C
  • Short-circuit proof up to 28 V
  • Mechanical blinker reset

With rotatable handle.

Thanks to the compact design and integrated mounting bracket, the Steering column switch 151LSS is ideal for installation directly on the steering column. The Steering column switch 151LSS can be used in agricultural vehicles, construction machinery and self-propelled machinery. Using proven technology, these steering column switches are robust and reliable even under tough working conditions.

Technical drawing

Image 1/1
Image 1/1
Full screen

Article characteristics

Selection of the feature:
  • Attribute
  • 151LSS...
  • Attribute
  • Max. switching voltage
  • Contact form
  • Turn signal - max. switching voltage
  • Turn signal - max. switching current
  • Turn signal - max. switching power
  • Horn - max. switching voltage
  • Horn - max. switching current
  • Horn - max. switching power
  • Headlamp flasher – max. switching voltage
  • Headlamp flasher – max. switching current
  • Headlamp flasher – max. switching power
  • Deflection - turn signal
  • Deflection - headlamp flasher
  • Deflection - high beam
  • Deflection – LCP indicator
  • Contact form - turn signal
  • High beam – max. switching voltage
  • High beam – max. switching current
  • High beam – max. switching power
  • Low beam – max. switching voltage
  • Low beam – max. switching current
  • Low beam – max. switching power
  • Continuous wiper operation – max. switching voltage
  • Continuous wiper operation – max. switching current
  • Continuous wiper operation – max. switching power
  • Interval wiper operation – max. switching voltage
  • Interval wiper operation – max. switching current
  • Interval wiper operation – max. switching power
  • Stroke washer – max. switching voltage
  • Stroke washer – max. switching current
  • Stroke washer – max. switching power
Attribute 151LSS...
Bestellung
Max. switching voltage 12 V DC
Contact form mechanical
Turn signal - max. switching voltage 12 V DC
Turn signal - max. switching current 10.5 A
Turn signal - max. switching power 6x21 W
Horn - max. switching voltage 12 V DC
Horn - max. switching current 5.5 A
Horn - max. switching power 66 W
Headlamp flasher – max. switching voltage 12 V DC
Headlamp flasher – max. switching current 10.8 A
Headlamp flasher – max. switching power 2x65 W
Deflection - turn signal 13 °
Deflection - headlamp flasher 4 °
Deflection - high beam 10 °
Deflection – LCP indicator 8 °
Contact form - turn signal mechanisch
High beam – max. switching voltage 12 V DC
High beam – max. switching current 10.8 A
High beam – max. switching power 2x65 W
Low beam – max. switching voltage 12 V DC
Low beam – max. switching current 9.1 A
Low beam – max. switching power 2x55 W
Continuous wiper operation – max. switching voltage 12 V DC
Continuous wiper operation – max. switching current 8 A
Continuous wiper operation – max. switching power ca. 96 W
Interval wiper operation – max. switching voltage 12 V DC
Interval wiper operation – max. switching current 8 A
Interval wiper operation – max. switching power ca. 96 W
Stroke washer – max. switching voltage 12 V DC
Stroke washer – max. switching current 5 A
Stroke washer – max. switching power ca. 60 W
  • Attribute
  • 151LSS...
  • Attribute
  • Steering column diameter
Attribute 151LSS...
Bestellung
Steering column diameter 45 mm
  • Attribute
  • 151LSS...
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
Attribute 151LSS...
Bestellung
Housing material Druckguss
Shaft material Stahl
Gaiter material EPDM
  • Attribute
  • 151LSS...
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
Attribute 151LSS...
Bestellung
Protection class, electronic IP6K7 DIN40050 Part 9
Operating temperature min. -30 °C
Max. operating temperature 70 °C
Min. storage temperature -40 °C
Max. storage temperature 80 °C
  • Attribute
  • 151LSS...
  • Attribute
  • Cable type
  • Cable length
Attribute 151LSS...
Bestellung
Cable type FLRY
Cable length 0.56 m
