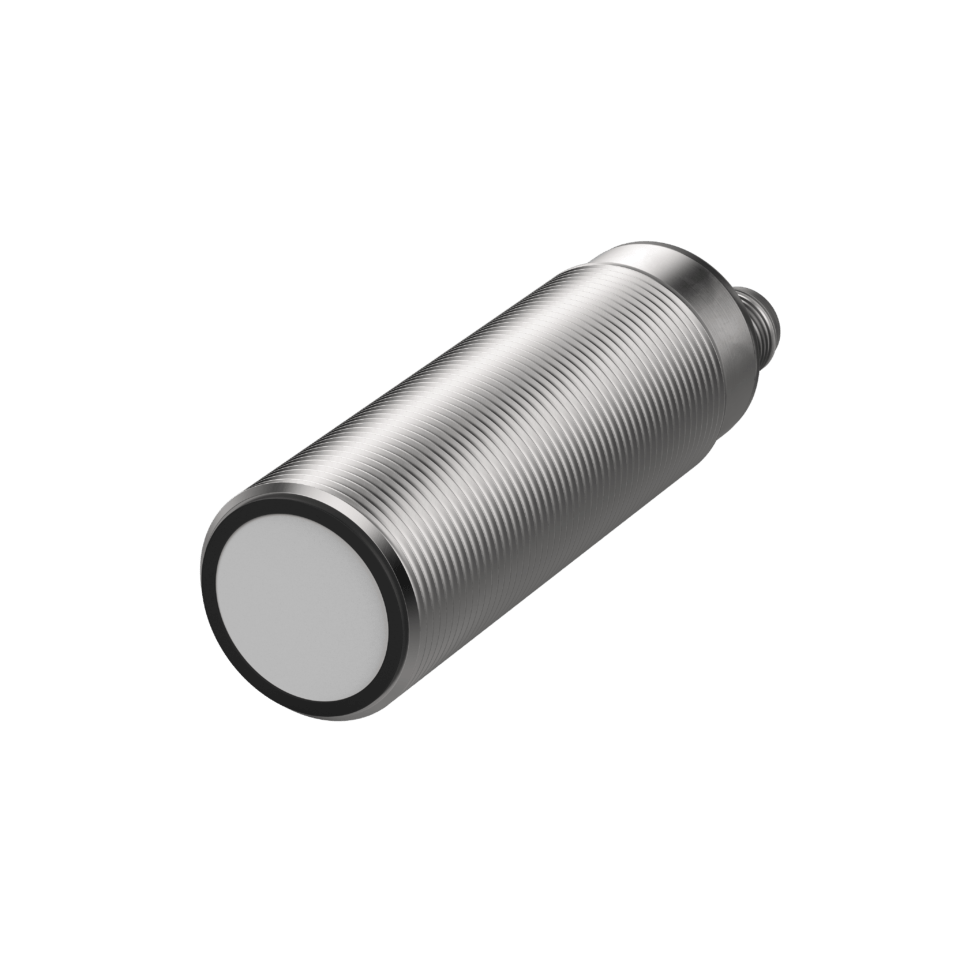

Ultrasonic sensor M30 IO-Link

Ultrasonic sensor M30 IO-Link

  • Reliable measurement regardless of transparency, gloss, surface characteristics and material colour
  • Resistant to contamination, moisture, dust and mist
  • Stainless steel housing material (DIN 1.4404) or plastic (PBT)
  • Three different operating ranges up to 8 m Switching output NPN/PNP/Push-Pull, analogue output, IO-Link
  • Parameterization via teach-in button or IO-Link
  • Four operating modes: retro-reflective, window, hysteresis and switching point operation
  • Synchronization and multiplex mode
  • Temperature compensation

​Thanks to high-performance electronics, the U*30 series is the ideal partner for the wide-range detection of objects and filling heights at distances of up to 8 metres. Similar to all other cylindrical designs from elobau, the sensors are temperature-compensated for high accuracy even in case of temperature fluctuations.

Stainless steel or plastic variants allow flexible adaptation to a wide variety of requirements.

Technical drawing

1/5
CAT_SENS_U_30_Standard_DRW
Full screen
1/5
2/5
CAT_SENS_U_30_Standard_CON
Full screen
2/5
3/5
CAT_SENS_U_30_Large_DRW
Full screen
3/5
4/5
CAT_SENS_U_30_Standard_CON
Full screen
4/5
5/5
CAT_SENS_U_30_Standard_CD_IO
Full screen
5/5

Article characteristics

  • Electrical data
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Electrical data
  • Continuous current
  • Switching frequency
  • Polarity reversal protection
  • Switching output
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance max.
  • Technology
  • Operating frequency
  • Outputs
  • Operating Mode
  • Sensing range
  • Opening angle of sound cone
  • Ripple
  • Repeating accuracy
  • Resolution
  • Thermal drift
  • Overload protection
  • Short-circuit protection
  • Synchronization
  • Multiplexing
  • Linearity error
  • IO-Link
  • Minimum distance object/reflector (retro-reflective sensor)
  • Blind zone
  • Start-up time digital output
  • EMC
  • Minimum distance sensor/reflector (retro-reflective sensor)
  • Start-up time analogue output
  • MTTF
  • Response time analogue output
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Continuous current 0.1 A 0.1 A 0.1 A
Switching frequency 1 Hz 1 Hz 1 Hz
Polarity reversal protection yes yes yes
Switching output Push-Pull Push-Pull+NPN Push-Pull+PNP Push-Pull Push-Pull+NPN Push-Pull+PNP Push-Pull Push-Pull+NPN Push-Pull+PNP Push-Pull Push-Pull+NPN Push-Pull+PNP Push-Pull
Output signal min. 0 V DC 0 V DC 0 V DC 0 V DC
Output signal max. 10 V DC 10 V DC 10 V DC 10 V DC
Output signal min. 4 mA 4 mA 4 mA 4 mA
Output signal max. 20 mA 20 mA 20 mA 20 mA
Operating voltage min. 10 V DC 10 V DC 10 V DC
Operating voltage max. 30 V DC 30 V DC 30 V DC
Current consumption < 30 mA < 30 mA < 30 mA
Load resistance min. 3000 Ohm 3000 Ohm 3000 Ohm 3000 Ohm
Load resistance max. 500 Ohm 500 Ohm 500 Ohm 500 Ohm
Technology Ultrasonic Ultrasonic Ultrasonic
Operating frequency 75 kHz 112 kHz 112 kHz 40 kHz
Outputs 1x Push-Pull (IO-Link) + 1x 4...20mA 1x Push-Pull (IO-Link) + 1x NPN 1x Push-Pull (IO-Link) + 1x PNP 1x Push-Pull (IO-Link) + 1x 0...10V 1x Push-Pull (IO-Link) + 1x 4...20mA 1x Push-Pull (IO-Link) + 1x NPN 1x Push-Pull (IO-Link) + 1x PNP 1x Push-Pull (IO-Link) + 1x 0...10V 1x Push-Pull (IO-Link) + 1x 4...20mA 1x Push-Pull (IO-Link) + 1x NPN 1x Push-Pull (IO-Link) + 1x PNP 1x Push-Pull (IO-Link) + 1x 0...10V 1x Push-Pull (IO-Link) + 1x 4...20mA 1x Push-Pull (IO-Link) + 1x NPN 1x Push-Pull (IO-Link) + 1x PNP 1x Push-Pull (IO-Link) + 1x 0...10V
Operating Mode diffuse reflection sensor/retro-reflective sensor diffuse reflection sensor/retro-reflective sensor diffuse reflection sensor/retro-reflective sensor
Sensing range 350...6000 mm 250...3500 mm 250...3500 mm 600...8000 mm
Opening angle of sound cone 18 ±2 ° 15 ±2 ° 15 ±2 ° 15 ±1 °
Ripple 5 % 5 % 5 %
Repeating accuracy 0.1 % 0.1 % 0.1 %
Resolution 6 mm 3 mm 3 mm 8 mm
Thermal drift ±5 % ±5 % ±5 %
Overload protection yes yes yes
Short-circuit protection yes yes yes
Synchronization yes yes yes
Multiplexing no no no
Linearity error 1 % 1 % 1 %
IO-Link yes yes yes
Minimum distance object/reflector (retro-reflective sensor) 10 % 10 % 10 %
Blind zone 350 mm 250 mm 250 mm 600 mm
Start-up time digital output 600 ms 600 ms 1000 ms
EMC EN 60947-5-2 EN 60947-5-2 EN 60947-5-2
Minimum distance sensor/reflector (retro-reflective sensor) 500 mm 300 mm 300 mm 800 mm
Start-up time analogue output 600 ms 600 ms 600 ms 600 ms 900 ms 900 ms
MTTF 100 a 100 a 106 a 100 a
Response time analogue output 450 ms 450 ms 450 ms 450 ms 450 ms
  • Properties
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Properties
  • Accessories supplied
  • Controls
  • Indicators
  • Application specific
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Accessories supplied 2 plastic nuts SW36 + 2 rubber washers 2 stainless steel nuts SW36 2 plastic nuts SW36 + 2 rubber washers 2 stainless steel nuts SW36
Controls Teach-in button/IO-Link Teach-in button/IO-Link Teach-in button/IO-Link
Indicators Switching state: 2 LEDs yellow, Echo: 1 LED green Switching state: 2 LEDs yellow, Echo: 1 LED green Switching state: 2 LEDs yellow, Echo: 1 LED green
Application specific IO-Link IO-Link IO-Link
  • Mechanical data
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Mechanical data
  • Dimensions
  • Housing design
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Dimensions M30x1.5 (head Ø=38.8mm) L=98.6mm M30x1.5 L=98,9 M30x1.5 L=98,9 M30x1.5 (head Ø=61mm) L=115mm
Housing design cylindrical cylindrical cylindrical
  • Material information
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Material information
  • Housing material
  • Material sound transducer
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Housing material PBT stainless steel 1.4404 PBT DIN 1.4404 + PBT DIN 1.4404 + PBT DIN 1.4404 + PBT
Material sound transducer Epoxy resin with glass balls Epoxy resin with glass balls Epoxy resin with glass balls
  • Environmental conditions
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Environmental conditions
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Temperature compensation
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Protection class IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Operating temperature min. -20 °C -20 °C -20 °C
Max. operating temperature 70 °C 70 °C 70 °C
Min. storage temperature -30 °C -30 °C -30 °C
Max. storage temperature 80 °C 80 °C 80 °C
Temperature compensation yes yes yes
  • Installation
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Installation
  • Thread
  • Torque
  • Weight
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Thread M30 M30 M30
Torque 1.5 N m 50 N m 1.5 N m 100 N m
Weight 170 g 215 g 140 g 350 g
  • Connection
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Connection
  • Connector type
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
Connector type M12 5-pol. M12 5-pol. M12 5-pol.
  • Approvals
  • UC30LPIC600S
  • UC30LPIN600S
  • UC30LPIP600S
  • UC30LPIV600S
  • UC30MIC350S
  • UC30MIN350S
  • UC30MIP350S
  • UC30MIV350S
  • UC30PIC350S
  • UC30PIN350S
  • UC30PIP350S
  • UC30PIV350S
  • UC30XSIC800S
  • UC30XSIN800S
  • UC30XSIP800S
  • UC30XSIV800S
  • Approvals
  • CE label
  • UL certification
  • CCC certification
AttributeUC30LPIC600SUC30LPIN600SUC30LPIP600SUC30LPIV600SUC30MIC350SUC30MIN350SUC30MIP350SUC30MIV350SUC30PIC350SUC30PIN350SUC30PIP350SUC30PIV350SUC30XSIC800SUC30XSIN800SUC30XSIP800SUC30XSIV800S
Bestellung
Bestellung
CE label yes yes yes
UL certification yes yes yes
CCC certification <36V yes <36V yes <36V yes
