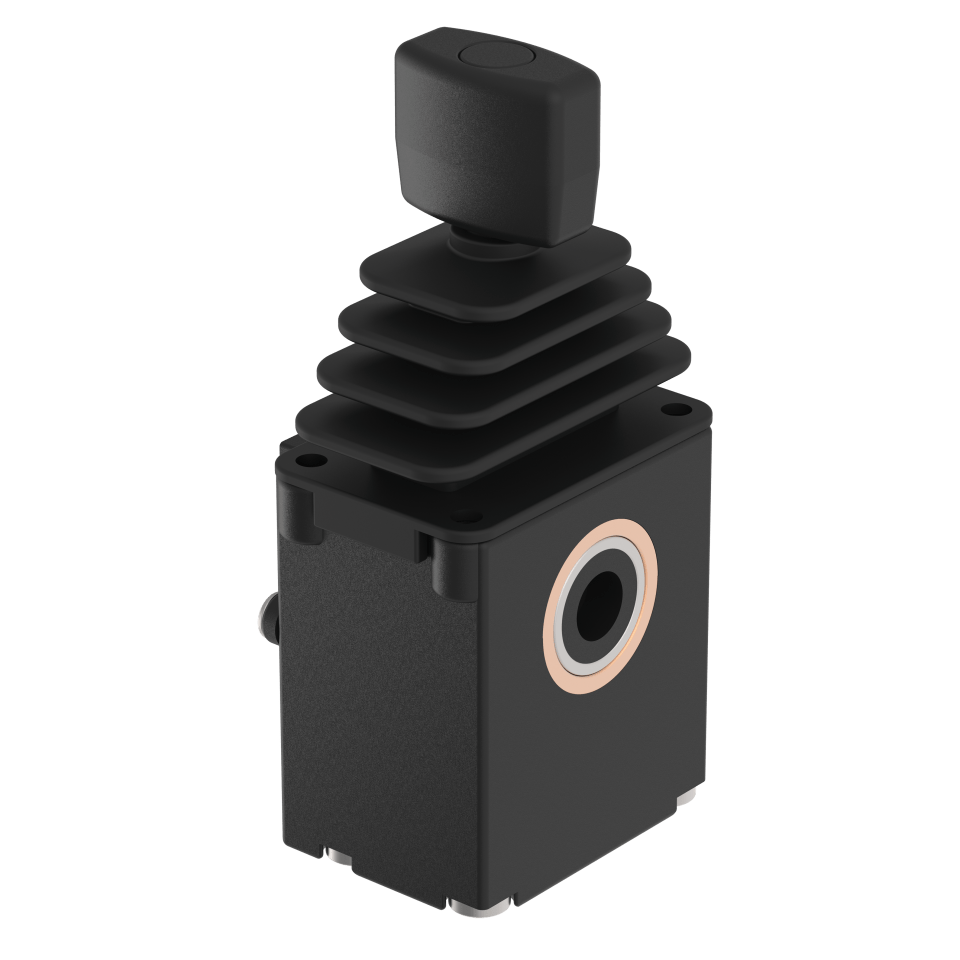

Fingertip Joystick J3

Availabe in elostore

Fingertip Joystick J3

Availabe in elostore
  • Four actuation types: no-detent / detent, with friction brake or centre position interlock
  • High reliability and long service life thanks to contactless Hall-effect and reed technology
  • Analogue output signal (current/voltage, also redundant) or switching output
  • CAN-bus connection (CANopen / SAE J1939)
  • Various handle options, available with up to one push button switch
  • IP67 protection class of electronics, ideal for harsh environmental conditions
  • Deflection ±20° or ±25°

CAN-capable, bottom mounted.

The single axis Hall-effect, Fingertip joystick J3, is ideal for use in control panels and armrests of industrial trucks and municipal vehicles, as well as in agricultural and construction machinery thanks to its compact and robust design.

Ce produit est également disponible dans notre elo.store.

Technical drawing

1/4
J3
Full screen
1/4
2/4
J3_mounting
Full screen
2/4
3/4
J3_electrical_drawing
Full screen
3/4
4/4
J3_options
Full screen
4/4

Article characteristics

  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Max. switching voltage
  • Max. switching current
  • Max. switching power
  • Max. switching power
  • Contact form
  • Polarity reversal protection
  • Output signal min.
  • Output signal max.
  • Output signal min.
  • Output signal max.
  • Output signal
  • Output signal - centre position/zero position
  • Output signal - centre position/zero position
  • EMC immunity (Norm)
  • EMC emission (Norm)
  • Operating voltage min.
  • Operating voltage max.
  • Current consumption
  • Load resistance min.
  • Load resistance at 10V max.
  • Load resistance al 30V max.
  • Short-circuit resistance to GND
  • Short-circuit resistance to supply
  • Outputs (quantity, type)
  • Technology
  • Protocol
  • Node ID / Source Address
  • Transmitting cycle
  • Baud rate
  • Bus terminating resistor
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Max. switching voltage 48 V DC
Max. switching current 0.3 A
Max. switching power 10 W
Max. switching power 10 VA
Contact form NO
Polarity reversal protection yes
Output signal min. 0.5 V DC
Output signal max. 4.5 V DC
Output signal min. 4 mA
Output signal max. 20 mA
Output signal analogue
Output signal - centre position/zero position 2.5 V DC
Output signal - centre position/zero position 12 mA
EMC immunity (Norm) DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC emission (Norm) DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Operating voltage min. 10 V DC 4.5 V DC 10 V DC 9 V DC
Operating voltage max. 30 V DC 5.5 V DC 30 V DC 36 V DC
Current consumption at 12 V max. 18 mA max. 15 mA at 12 V max. 15 mA < 120 mA
Load resistance min. 20000 Ohm
Load resistance at 10V max. 250 Ohm
Load resistance al 30V max. 1250 Ohm
Short-circuit resistance to GND no yes no yes no
Short-circuit resistance to supply no yes no yes no
Outputs (quantity, type) 1 3
Technology Hall Reed
Protocol J1939 CANopen
Node ID / Source Address 0x70 0x11
Transmitting cycle 100 ms
Baud rate 250 kBit/s
Bus terminating resistor no
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Max. lever load with specified lever length
  • Deflection
  • Actuation type
  • Service life, mechanical (Cycles)
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Max. lever load with specified lever length X- and Y-Axis 50mm/150 N
Deflection ± 20 °
Actuation type single axis
Service life, mechanical (Cycles) 2000000
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Housing material
  • Shaft material
  • Gaiter material
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Housing material PBT
Shaft material PBT
Gaiter material CR 45
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Protection class, electronic
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Protection class, electronic IP67 DIN EN 60529
Operating temperature min. -25 °C
Max. operating temperature 85 °C
Min. storage temperature -40 °C
Max. storage temperature 85 °C
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Installation
  • Mounting type
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Installation from below
Mounting type screwed from above
  • Attribute
  • J3A1...
  • J3A6...
  • J3A7...
  • J3CJ...
  • J3CO...
  • J3D8...
  • Attribute
  • Connector type
  • Cable length
AttributeJ3A1...J3A6...J3A7...J3CJ...J3CO...J3D8...
Bestellung
Bestellung
Connector type Mini-Fit Jr.
Cable length 0.3 m
1/1
J3_ordering_key
Full screen
1/1
