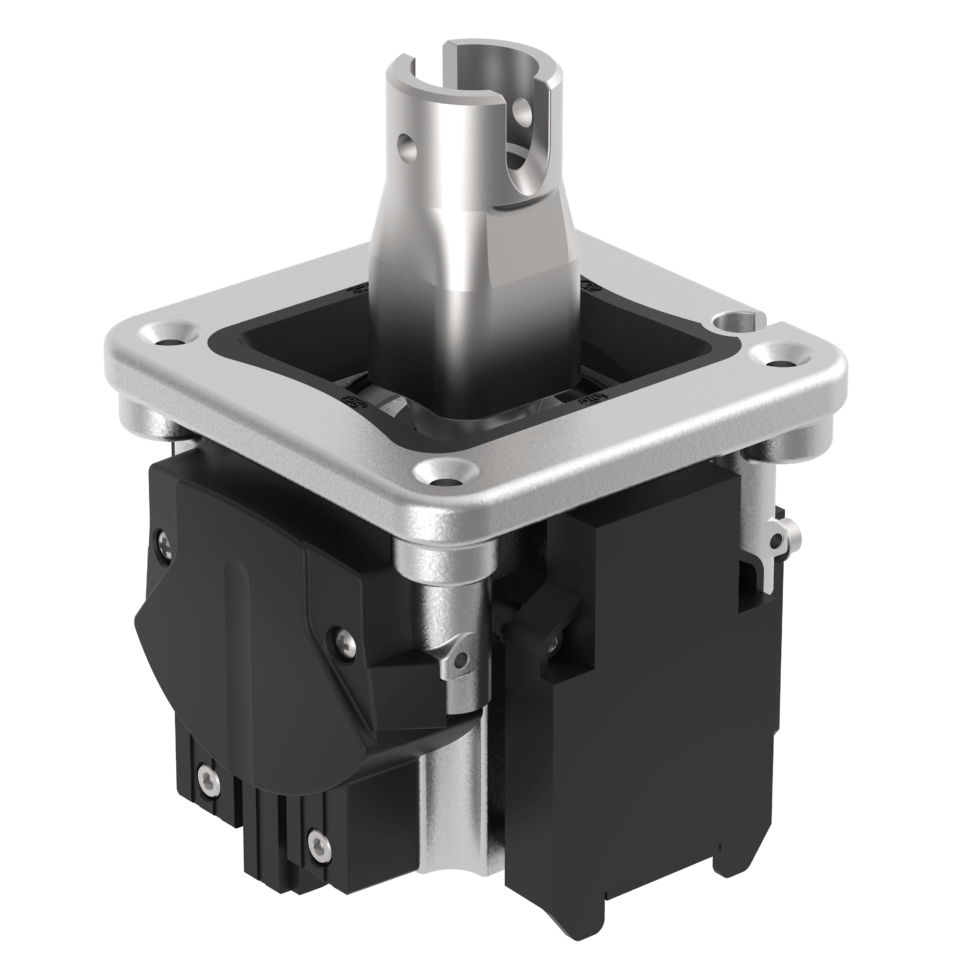

Robust Joystick J5 Base

Robust joystick for installation from above or below
Space-saving design
High reliability and long service life thanks to contactless Hall-effect and reed technology
Available with different output signals: analogue, redundant, CAN bus connection (CANopen/SAE J1939) or with switching output
IP67 protection class of electronics, ideal for harsh environmental conditions
Deflection ±25°
Available with various actuation types: no-detent, detent, with friction brake or centre position interlock, any function can be optimally operated
Designed for extremely heavy loads (x-/y-axis: 2000 N, z-axis: 700 N @ 190 mm lever length each)

Robust, bottom mounted

Thanks to its robust design, the Heavy duty joystick J5 is ideal for high-stress and high-frequency use. It has been designed for use in mobile machinery, such as controlling drives in front loaders.

Configure online now Configure online now

Download all

Attribute	J5A1...	J5A6...	J5A7...	J5D8...
Bestellung
Max. switching voltage	–	48 V DC
Max. switching current	–	0.3 A
Max. switching power	–	10 W
Max. switching power	–	10 VA
Contact form	–	NO
Polarity reversal protection	yes	–
Output signal min.	–	0.5 V DC	–
Output signal max.	–	4.5 V DC	–
Output signal min.	4 mA	–
Output signal max.	20 mA	–
Output signal	analogue	digital
Output signal - centre position/zero position	–	2.5 V DC	–
Output signal - centre position/zero position	12 mA	–
EMC immunity (Norm)	DIN EN 13309, DIN EN ISO 14982	–
EMC emission (Norm)	DIN EN 13309, DIN EN ISO 14982	–
Operating voltage min.	10 V DC	4.5 V DC	10 V DC	–
Operating voltage max.	30 V DC	5.5 V DC	30 V DC	48 V DC
Current consumption	max. 18 mA	max. 15 mA	–
Load resistance min.	–	20000 Ohm	–
Load resistance at 10V max.	250 Ohm	–
Load resistance al 30V max.	1250 Ohm	–
Short-circuit resistance to GND	no	yes	no	–
Short-circuit resistance to supply	no	yes	no	–
Outputs (quantity, type)	–	6
Technology	Hall	Reed

Attribute

J5A1...

J5A6...

J5A7...

J5D8...

Bestellung

Max. switching voltage

–

48 V DC

Max. switching current

–

0.3 A

Max. switching power

–

10 W

Max. switching power

–

10 VA

Contact form

–

Polarity reversal protection

yes

–

Output signal min.

–

0.5 V DC

–

Output signal max.

–

4.5 V DC

–

Output signal min.

4 mA

–

Output signal max.

20 mA

–

Output signal

analogue

digital

Output signal - centre position/zero position

–

2.5 V DC

–

Output signal - centre position/zero position

12 mA

–

EMC immunity (Norm)

DIN EN 13309, DIN EN ISO 14982

–

EMC emission (Norm)

DIN EN 13309, DIN EN ISO 14982

–

Operating voltage min.

10 V DC

4.5 V DC

10 V DC

–

Operating voltage max.

30 V DC

5.5 V DC

30 V DC

48 V DC

Current consumption

max. 18 mA

max. 15 mA

–

Load resistance min.

–

20000 Ohm

–

Load resistance at 10V max.

250 Ohm

–

Load resistance al 30V max.

1250 Ohm

–

Short-circuit resistance to GND

yes

–

Short-circuit resistance to supply

yes

–

Outputs (quantity, type)

–

Technology

Hall

Reed

Attribute	J5A1...	J5A6...	J5A7...	J5D8...
Bestellung
Max. lever load with specified lever length	190 mm / 2000 N
Deflection	± 25 °
Service life, mechanical (Cycles)	2000000

Attribute

J5A1...

J5A6...

J5A7...

J5D8...

Bestellung

Max. lever load with specified lever length

190 mm / 2000 N

Deflection

± 25 °

Service life, mechanical (Cycles)

2000000

Attribute	J5A1...	J5A6...	J5A7...	J5D8...
Bestellung
Housing material	Zinc diecasting Z410
Shaft material	Zinc diecasting Z410
Gaiter material	CR

Attribute

J5A1...

J5A6...

J5A7...

J5D8...

Bestellung

Housing material

Zinc diecasting Z410

Shaft material

Zinc diecasting Z410

Gaiter material

Attribute	J5A1...	J5A6...	J5A7...	J5D8...
Bestellung
Protection class, electronic	IP67 DIN EN 60529
Operating temperature min.	-25 °C
Max. operating temperature	85 °C
Min. storage temperature	-40 °C
Max. storage temperature	85 °C

Attribute

J5A1...

J5A6...

J5A7...

J5D8...

Bestellung

Protection class, electronic

IP67 DIN EN 60529

Operating temperature min.

-25 °C

Max. operating temperature

85 °C
