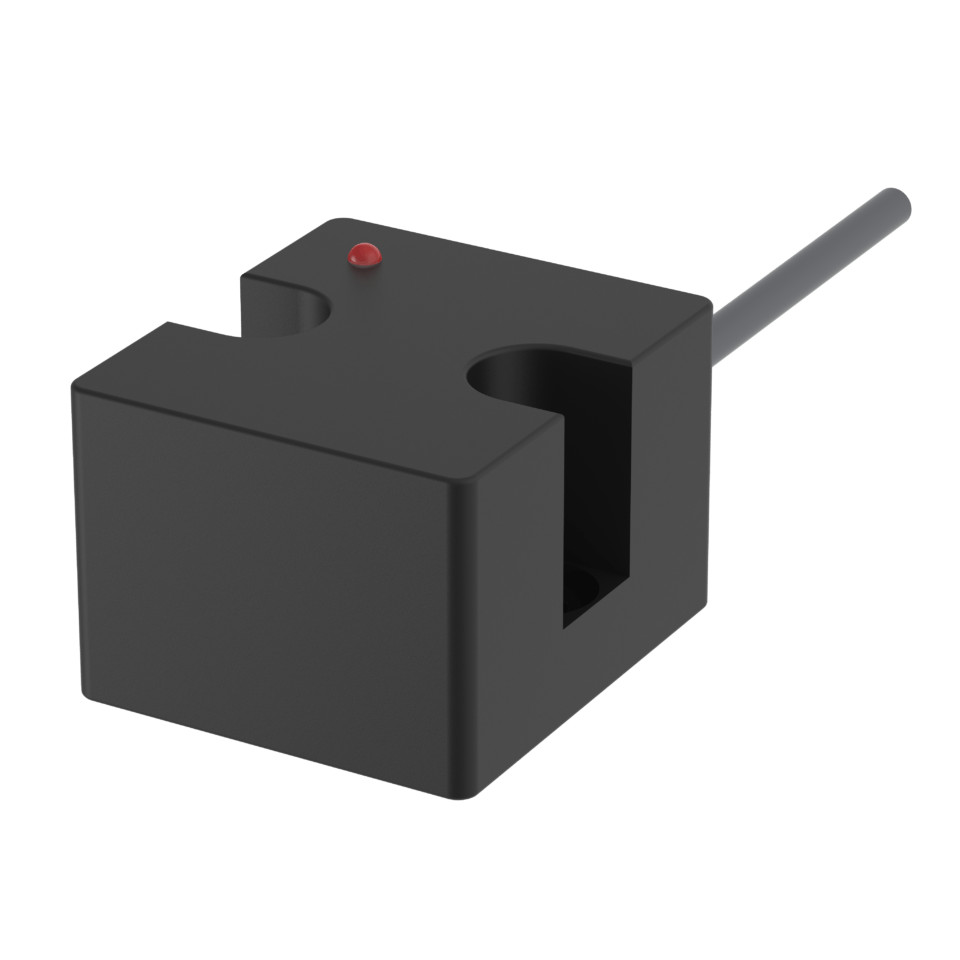

Article characteristics

  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Min. switching voltage
  • Max. switching voltage
  • Max. switching current
  • Max. switching current with LED
  • Max. switching power
  • Switching frequency
  • Assured switching distance (Sao)
  • Assured switch-off distance (Sar)
  • Minimum switching distance (S0 min)
  • LED display
  • Actuation
  • Switching principle
  • Series resistor
  • Technology
  • Contact form
  • Pollution degree
  • Protection class
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Min. switching voltage 19.2 V DC 19.2 V DC
Max. switching voltage 28.8 V DC 28.8 V DC
Max. switching current 0.1 A 0.1 A
Max. switching current with LED 0.01 A 0.01 A
Max. switching power 3 W 3 W
Switching frequency 5 Hz 5 Hz
Assured switching distance (Sao) 4 mm 4 mm
Assured switch-off distance (Sar) 16 mm 16 mm
Minimum switching distance (S0 min) 0.5 mm 0.5 mm
LED display No single-coloured No single-coloured No
Actuation front front
Switching principle magnetic magnetic
Series resistor 22 Ohm 22 Ohm
Technology Reed Reed
Contact form NO/NO NO/NC NO/NO NO/NC
Pollution degree 3 3
Protection class III III
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Housing design
  • Dimensions
  • Minimum installation distance (between two sensors)
  • cannot be mounted flush
  • Detent present
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Housing design rectangular rectangular
Dimensions 45 x 40 x 30 mm 45 x 40 x 30 mm
Minimum installation distance (between two sensors) 50 mm 50 mm
cannot be mounted flush yes yes
Detent present no no
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Housing material
  • Cable material
  • Housing colour
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Housing material PBT PBT
Cable material PVC
Housing colour schwarz schwarz
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Min. storage temperature
  • Max. storage temperature
  • Protection class
  • Protection class, connector
  • Operating temperature min.
  • Max. operating temperature
  • Min. cable temperature range, moving
  • Max. cable temperature range, moving
  • Min. cable temperature range, fixed installation
  • Max. cable temperature range, fixed installation
  • Shock resistance (Norm)
  • Vibration resistance (Norm)
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Min. storage temperature -25 °C -25 °C
Max. storage temperature 75 °C 75 °C
Protection class IP67 DIN EN 60529 IP67 DIN EN 60529
Protection class, connector IP67 DIN EN 60529 IP67 DIN EN 60529
Operating temperature min. -25 °C -25 °C
Max. operating temperature 75 °C 75 °C
Min. cable temperature range, moving -5 °C
Max. cable temperature range, moving 70 °C
Min. cable temperature range, fixed installation -25 °C
Max. cable temperature range, fixed installation 70 °C
Shock resistance (Norm) 30g / 11ms 30g / 11ms
Vibration resistance (Norm) 10 - 55Hz 10 - 55Hz
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Mounting type
  • Installation
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Mounting type screwed screwed
Installation arbitrary arbitrary
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Connector type
  • Cable length
  • Number of strands
  • Wire cross section
  • Cable type
  • Cable colour
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Connector type M8x1 - 4 polig M12x1 - 4 polig M8x1 - 4 polig M8x1 - 4 polig
Cable length 1 m
Number of strands 4
Wire cross section 0.25 mm²
Cable type LiYY 4x0,25
Cable colour grau
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • CE label
  • Certified in accordance with
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
CE label yes yes
Certified in accordance with CE ETL
  • Attribute
  • 161V62AFA
  • 161V62AY
  • 161271AY
  • 161271AZ
  • 161271A0E
  • 161V62
  • 161271
  • 161271AA
  • 161271A0D
  • Attribute
  • Possible actuators
Attribute161V62AFA161V62AY161271AY161271AZ161271A0E161V62161271161271AA161271A0D
Bestellung
Possible actuators 30422112 30422112
1/3

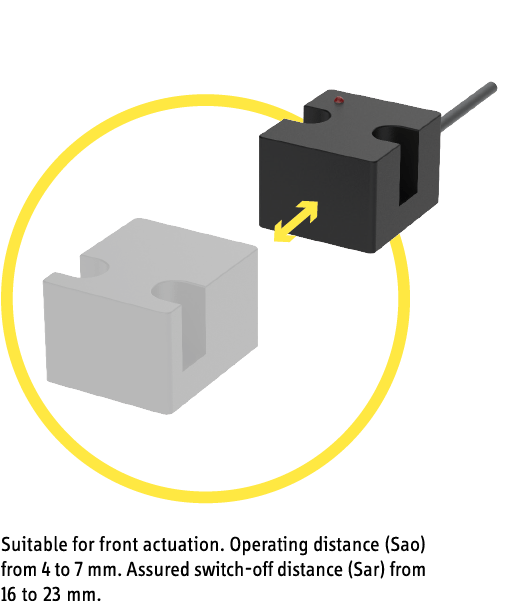

161_switching-distance
