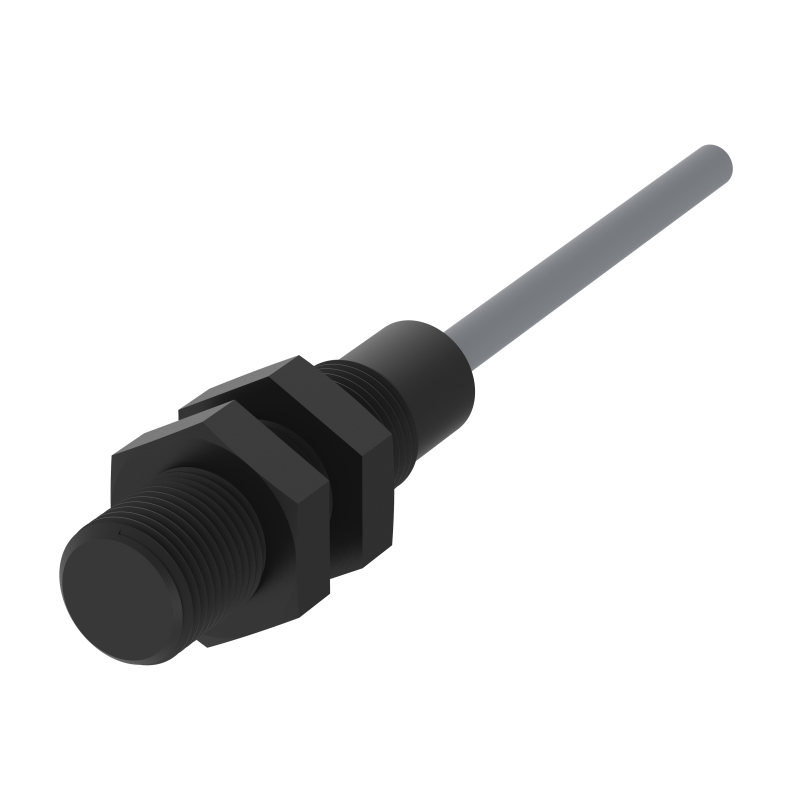

Safety sensor 122
Safety sensor 122
Ce produit est également disponible dans notre elo.store.
Technical drawing
1/3
1/3
2/3
2/3
3/3
3/3
Article characteristics
- Electrical data
- Min. switching voltage
- Max. switching voltage
- Max. switching current
- Max. switching power
- Switching frequency
- Assured switching distance (Sao)
- Assured switch-off distance (Sar)
- Minimum switching distance (S0 min)
- LED display
- Actuation
- Switching principle
- Series resistor
- Technology
- Contact form
- Pollution degree
- Protection class
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| Min. switching voltage | 19.2 V DC | |||
| Max. switching voltage | 28.8 V DC | |||
| Max. switching current | 0.1 A | |||
| Max. switching power | 3 W | – | 3 W | |
| Switching frequency | 5 Hz | – | 5 Hz | |
| Assured switching distance (Sao) | 7 mm | 15 mm | 20 mm | 15 mm |
| Assured switch-off distance (Sar) | 20 mm | 37 mm | 40 mm | 37 mm |
| Minimum switching distance (S0 min) | 0.5 mm | |||
| LED display | No | |||
| Actuation | front | |||
| Switching principle | magnetic | |||
| Series resistor | 22 Ohm | |||
| Technology | Reed | |||
| Contact form | NO/NO | NO/NC | ||
| Pollution degree | 3 | – | 3 | |
| Protection class | III | – | III | |
- Mechanical data
- Housing design
- Dimensions
- cannot be mounted flush
- Detent present
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| Housing design | cylindrical | |||
| Dimensions | M12 x 46 mm | |||
| cannot be mounted flush | yes | |||
| Detent present | no | |||
- Material information
- Housing material
- Cable material
- Nut material
- Housing colour
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| Housing material | PBT | |||
| Cable material | PVC | |||
| Nut material | PBT | – | PBT | |
| Housing colour | schwarz | |||
- Environmental conditions
- Protection class
- Protection class, connector
- Operating temperature min.
- Max. operating temperature
- Min. cable temperature range, moving
- Max. cable temperature range, moving
- Min. cable temperature range, fixed installation
- Max. cable temperature range, fixed installation
- Shock resistance (Norm)
- Vibration resistance (Norm)
- Min. storage temperature
- Max. storage temperature
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| Protection class | IP67 / IP69K DIN EN 60529 | IP67 DIN EN 60529 | ||
| Protection class, connector | – | IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) | – | |
| Operating temperature min. | -25 °C | |||
| Max. operating temperature | 75 °C | |||
| Min. cable temperature range, moving | -5 °C | -25 °C | – | -5 °C |
| Max. cable temperature range, moving | 70 °C | 90 °C | – | 70 °C |
| Min. cable temperature range, fixed installation | -25 °C | – | -25 °C | |
| Max. cable temperature range, fixed installation | 70 °C | 90 °C | – | 70 °C |
| Shock resistance (Norm) | 30g / 11ms | – | 30g / 11ms | |
| Vibration resistance (Norm) | 10 - 55Hz | – | 10 - 55Hz | |
| Min. storage temperature | -25 °C | |||
| Max. storage temperature | 75 °C | |||
- Installation
- Mounting type
- Thread
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| Mounting type | Fastening nut | |||
| Thread | M12 | |||
- Connection
- Connector type
- Cable length
- Number of strands
- Wire cross section
- Cable type
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| Connector type | – | M8x1 - 4 polig | – | |
| Cable length | 1 m | 0.1 m | 1 m | |
| Number of strands | 4 | |||
| Wire cross section | 0.25 mm² | |||
| Cable type | – | LIYY 4 x 0,25 mm | – | |
- Approvals
- CE label
| Attribute | 122V62 | 12227102 | 122270 | 122271 |
|---|---|---|---|---|
| Bestellung | ||||
| CE label | yes | |||
