Emergency stop button NHT01D

Availabe in elostore

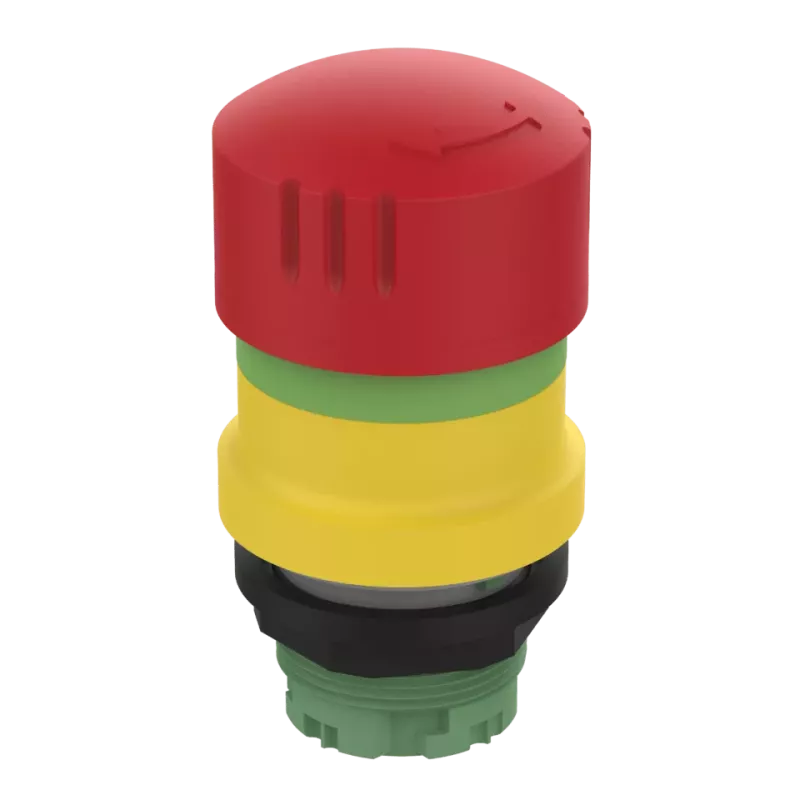

Emergency stop button NHT01D

Availabe in elostore
  • Latching detent for anti-rotation protection and to prevent easy removal
  • Optical switch position indicator (green ring)
  • Simple rotary release
  • Matching installation wrench MS01 for simple installation

Suitable contact elements:

KE20 Contact element with 2 N.C. contacts
KE20SF Contact element with 2 N.C. contacts + failure protection*
KE21 Contact element with 2 N.C. contacts + 1 N.O. contact
KE21SF Contact element with 2 N.C. contacts + 1 N.O. contact
+ failure protection*

*The failure protection system detects whether the contact elements are assembled correctly and switches the safety circuit off if a contact element should detach due to external influences.

The following safety control units / safety relays are suited for integration into the safety product line:

470… eloFlex Mini 2 two-channel inputs, freely configurable
471… eloFlex 4 two-channel inputs, freely configurable
485 EP… eloProg up to 128 inputs, freely configurable



The most compact emergency stop button, specially intended for installation in control panels with its space-saving design.

Ce produit est également disponible dans notre elo.store.

Technical drawing

1/1
NHT01D-01
Full screen
1/1

Article characteristics

  • NHT01D
  • Unlocking device
  • Anti-obstruction protective collar
  • Operation protective collar
  • Service life, mechanical (Cycles)
  • Dimensions
  • Detent present
  • Housing material
  • Housing colour
  • Protection class
  • Operating temperature min.
  • Max. operating temperature
  • Min. storage temperature
  • Max. storage temperature
  • Mounting type
  • Installation opening
  • Installation
  • Torque for nuts
  • Installation depth
  • Certified in accordance with
  • CE label
  • Hygienic approval
AttributeNHT01D
Bestellung
Bestellung
Unlocking device Rotary release left/right
Anti-obstruction protective collar no
Operation protective collar no
Service life, mechanical (Cycles) 100000
Dimensions Ø32 x 60,9 mm
Detent present yes
Housing material Plastic
Housing colour Front bezel: yello; Mushroom head: red
Protection class IP65 DIN EN 60529
Operating temperature min. -30 °C
Max. operating temperature 70 °C
Min. storage temperature -50 °C
Max. storage temperature 85 °C
Mounting type Fastening nut
Installation opening Ø22,3 mm
Installation from above
Torque for nuts 2,2 N m
Installation depth 19.4 mm
Certified in accordance with EN 60947-5-5 EN 60947-5-1 EN ISO 13850 UL 508 / CSA 22.2
CE label yes
Hygienic approval no
Operating instructions and product information
Manual emergency stop button pdf 3.68 MB
