- Level measurement on reed-contact basis
- Mounting options: G 1/8″ thread
- Material: stainless steel
- Switching voltage max. 48 V
- Contact form: N.O.
- One switching point as standard
- Temperature range from -25 °C to +100 °C
- IP67 protection class
- Extremely high pressure resistance up to 33 bar
- Optionally with temperature contact

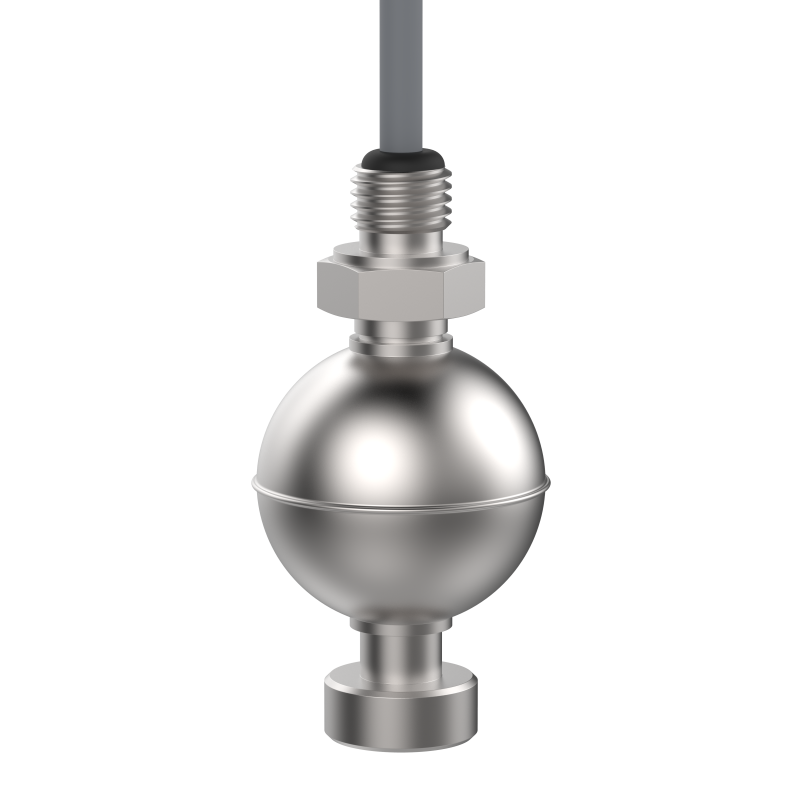

Miniature float switch 20341103 made of stainless steel is used primarily in the chemical industry. The level detection sensor was developed for use in aggressive media, such as acids.
The miniature float switch is a cost-effective solution that can be fully customised to suit your needs, and is reversible by rotating the float. At elobau, you set the standard. The miniature float switch can be fully customised using our online configurator.
